10 _ Removal and Reassembly

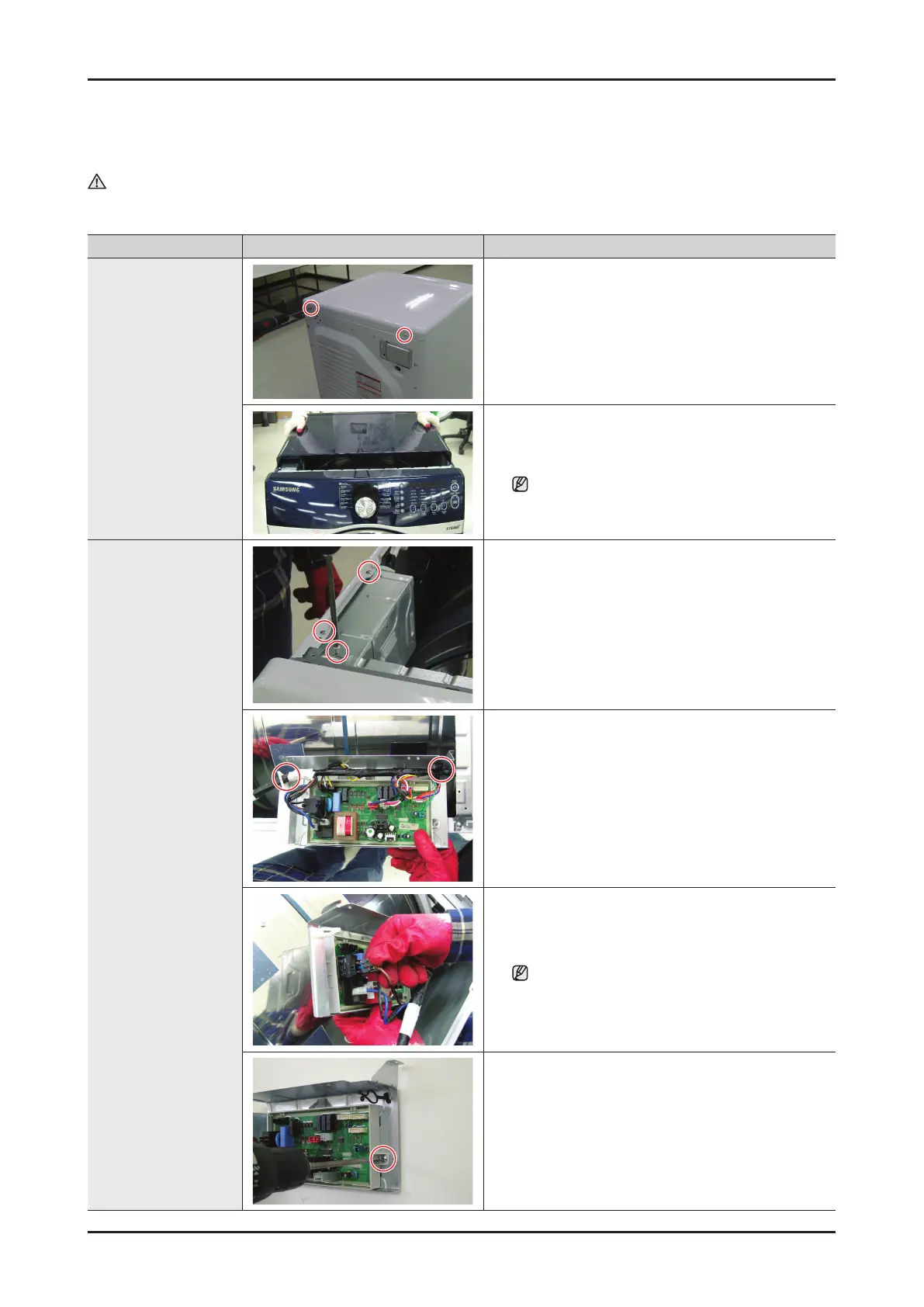

3-2. STANDARD DISASSEMBLY DRAWINGS
To avoid risk of electrical shock, personal injury or death, disconnect the power to the Clothes Dryer.
► This is a standard disassembly diagram and may differ from the actual product.
Use this material as a reference when disassembling and reassembling the product.
Part Figure Description
Top Cover Removal
1. Disconnect the power supply and to the unit
2. Remove 2 screws from the Top- Cover
3. Slide Top Cover towards the rear and lift from the
unit.
Scratch and impact to the top cover is
prohibited.
Main PCB Removal
1. Disconnect the power supply and to the unit
2. Remove the Top Cover
3. Remove 3 screws from the frame+plate
4. Remove the Wire holder
5. Remove the Housings
Shaking the heater terminal side ways to pull it
out is prohibited.
6. Remove 1 from the Holder PCB
To Next Page
