Troubleshooting _ 35

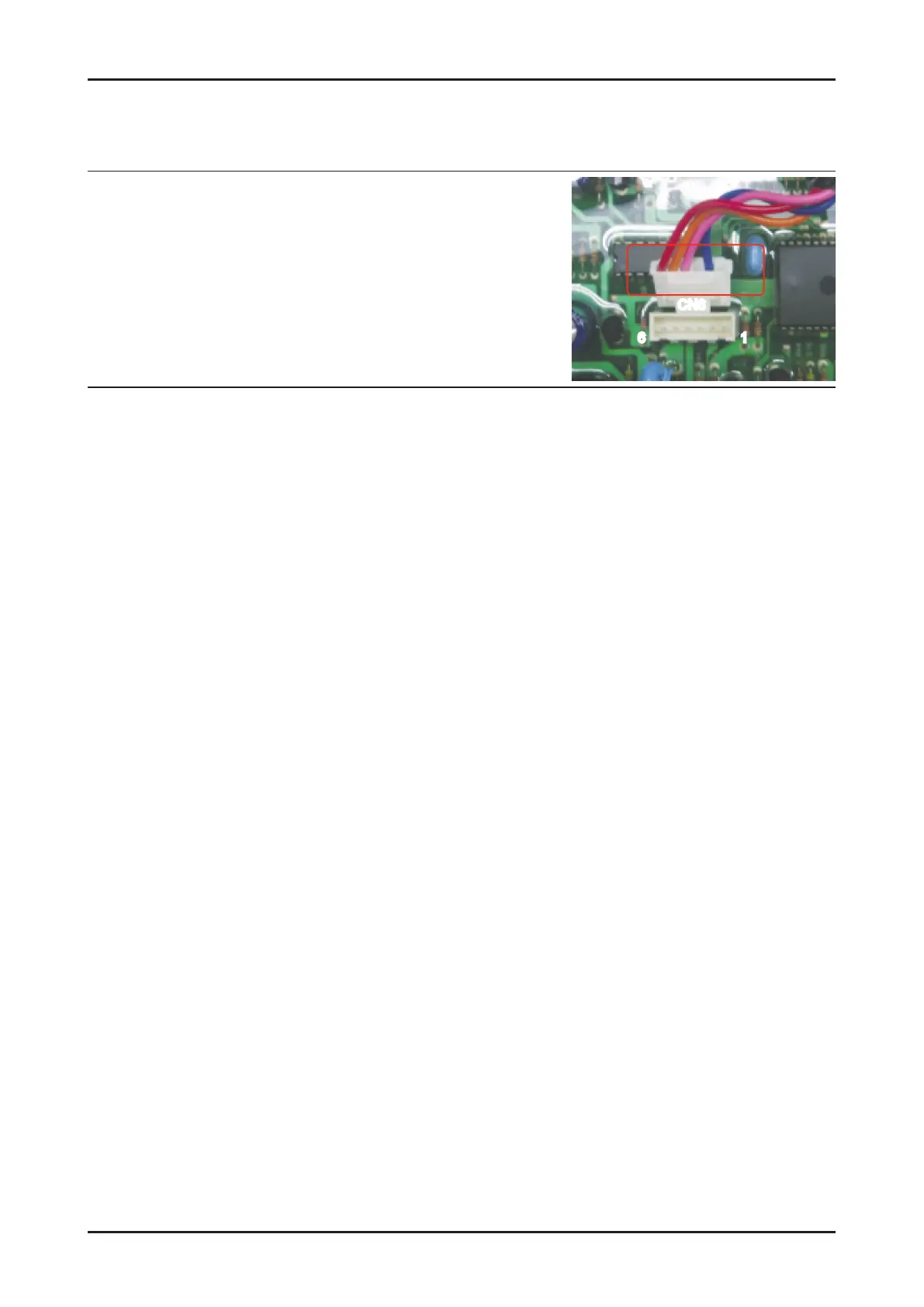

■ Sensor Bars & temperature sensor check
Sensor Bars
Disconnect harness and test Pink wire Pin 4 to Orange wire Pin 5.
• Approx ∞Ω without laundry
• Approx 190Ω ± 10% with wet clothes
Cycling Thermostat
Disconnect harness and test Blue wire Pin 2 to Red wire Pin 6.
• Approx 10 KΩ at 25 °C/77 °F
CN6
6 1
