14 English

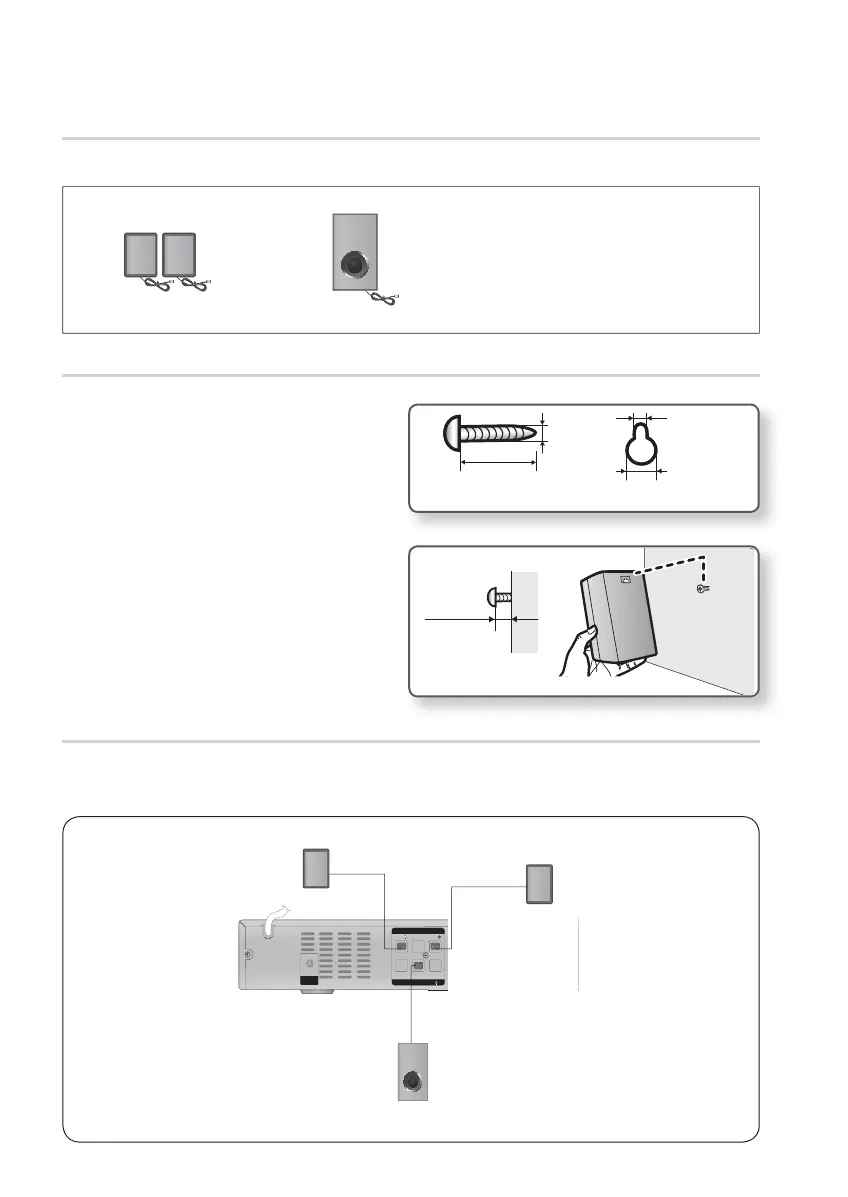

Connections
Speaker Components
SUBWOOFER
FRONT
(L) (R)
Connecting the wall mount
1. Prepare screws (not supplied) that are suitable
for the hole on the back of each speaker.
See the illustrations below.
2. Fasten the screws to the wall, then hang the
speaker on the wall.
5 mm
10 mm
Hold on the back of the speaker
30 mm
4 mm
8 to 10 mm
Depth of fastened screw
Connecting The Speakers
1. Connect the connecting plugs to the back of the product by matching the colours of the speaker plugs to
the speaker jacks.
Front Speaker (R)
Subwoofer
Front Speaker (L)
SURROUND
SUBWOOFER
FRONTFRONT
SPEAKERS OUT
SPEAKER IMPEDANCE : 3
FM ANT
AUX
IN
HDMI OUT
VIDEO OUT
FA NET
(Only For Service)
To Next Page
