English 17
02 Connections
Connecting Audio from External Components

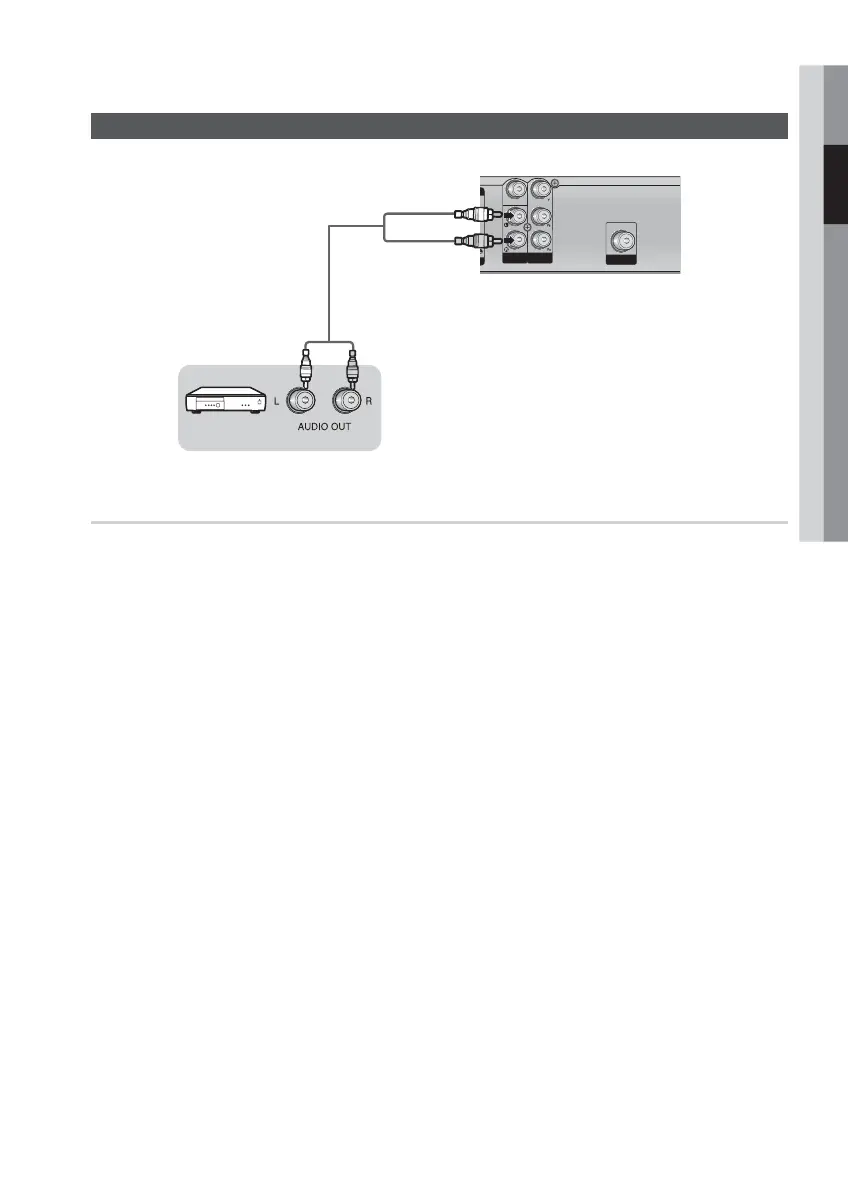

AUX : Connecting an External Analog Component
Analog signal components such as a VCR.
1. Connect AUX IN (Audio) on the back of the product to the Audio Out of the external Analog component.
• Be sure to match the colors of the connecting jacks.
2. Press the FUNCTION button to select AUX input.
• The mode switches as follows :
DVD/CD ➞ AUX ➞ USB ➞ FM
✎ NOTE
You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the
VCR to this product.
SURROUND SURROUND
SUBWOOFER
CENTER FRONT
VIDEO OUT
FRONT
SPEAKERS OUT
SPEAKER IMPEDANCE : 3
COMPONENT
OUT
FA NET
(Only For Service)
AUX IN
FM ANT
Audio Cable (not supplied)
If the external analog component has
only one Audio Out, connect either
left or right.
VCR
White
Red
To Next Page
