Samsung HT-E355 - Speaker Assembly and Setup; Speaker Component Identification; Tallboy Stand Speaker Installation

14 English
Connections
English 15
HT-E350
Assembled Speakers
Speaker Components
SURROUND
CENTER
SUBWOOFER
FRONT
(L) (R)(L) (R)
Speaker Components

HT-E355
CENTER SPEAKER
SURROUND
SPEAKER
SUBWOOFER
FRONT
SPEAKER
FRONT
(L) (R)
STAND
STAND BASE
SPEAKER CABLE
SURROUND
(L) (R)
HT-E355
CENTER
SUBWOOFER
SCREW (5×15): 16EA

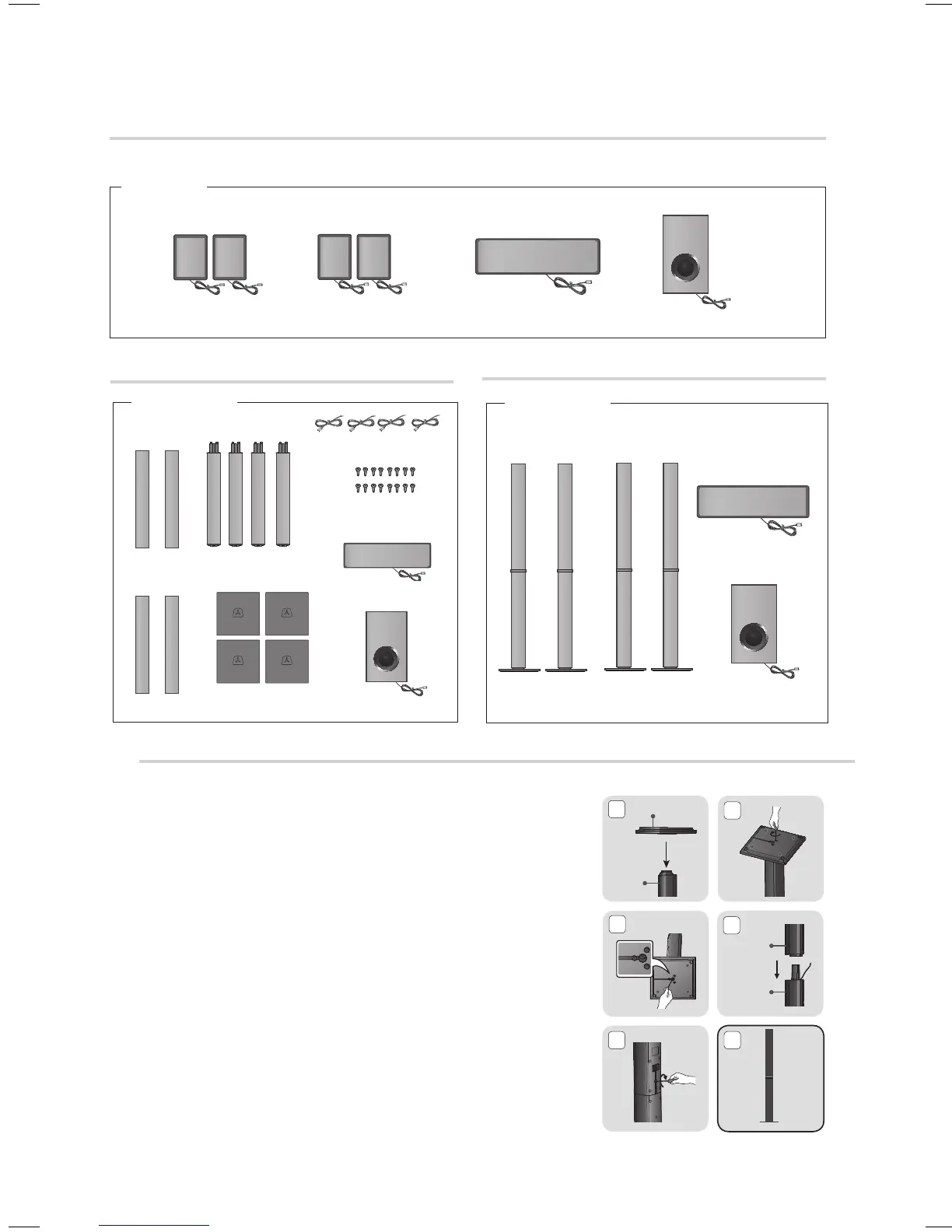

Installing the Speakers on the Tallboy Stand
* HT-E355 - Front/Surround Speakers
1. Turn the Stand Base upside-down and connect it to the Stand.
2. Insert three screws (5*15, For connecting Stand & Stand Base) clockwise
into the three holes marked using a screwdriver as shown in the
illustration.
! CAUTION : When you use a torque screwdriver, be careful not to put
excessive force. Otherwise, it runs idle or can be damaged. (torque
screwdriver- below 7 kg.f.cm)
3. Straighten a supplied speaker wire and put in the hole on the centre of
Stand Base.
4. Connect the upper Speaker to the assembled Stand.
5. Insert another large screw (5*15, For connecting Speaker & Stand)
clockwise into the hole on the rear of the speaker using a
screwdriver.
6. This is the appearance after the speaker is installed. Follow this
steps to install other speaker.
5
3
2
6
1
4
Stand Base
Stand
Speaker
Stand
