Viewing the Connection Panel
Use the connection panel jacks to connect A/V components that will be connected continuously, such as DVD players or a
VCR. For more information on connecting equipment, see pages 6~12.

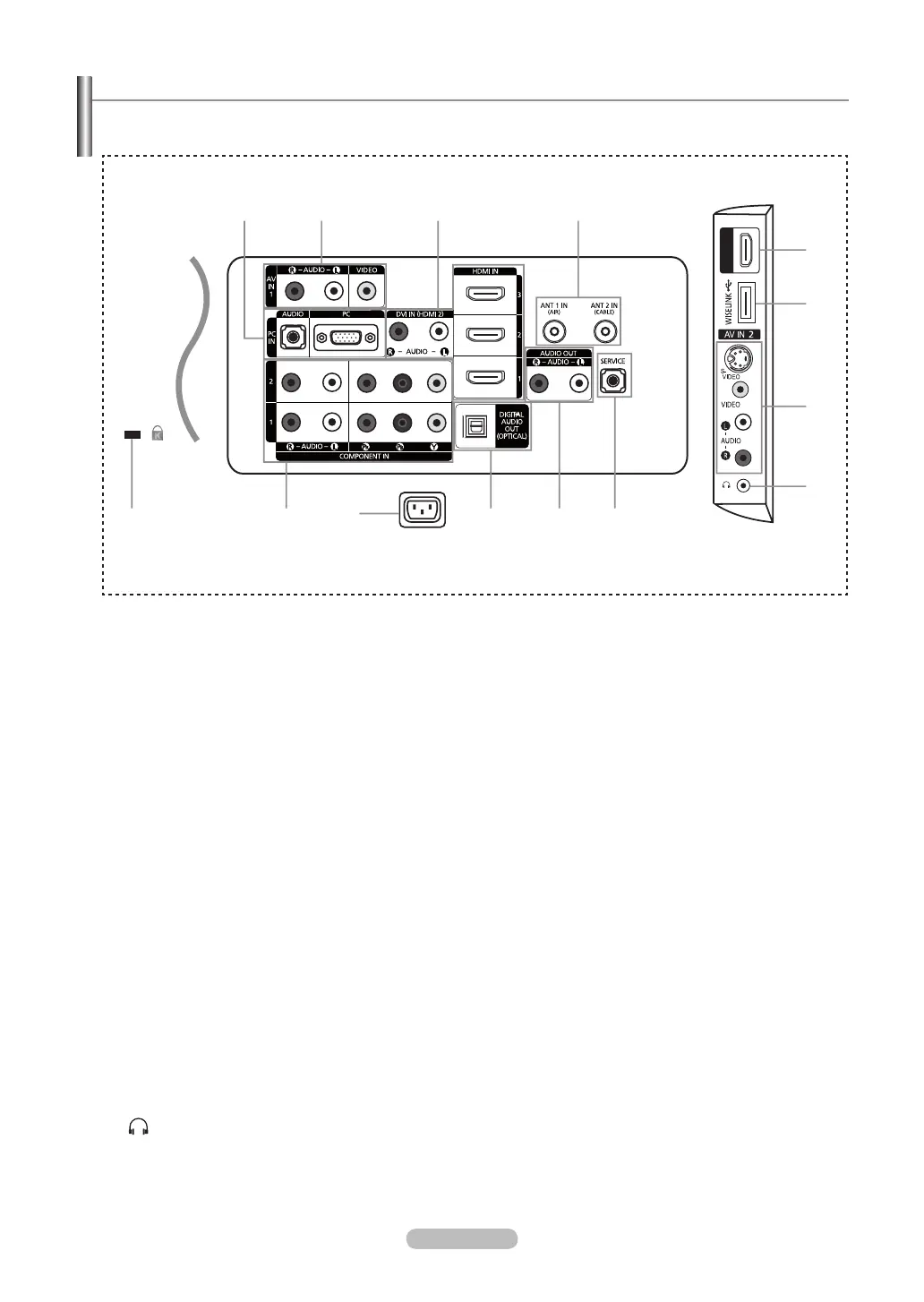

[TV Side Panel][TV Rear Panel]
The product color and shape may vary depending on the model.
➣
1
PC IN [PC] / [AUDIO]
Connects to the video and audio output jacks on your PC.
2
AV IN 1
Video and audio inputs for external devices, such as a
camcorder or VCR.
3
HDMI IN 1, 2, 3, 4 / DVI IN(HDMI2)[R-AUDIO-L]
Connects to the HDMI jack of a device with an HDMI
output.
- No sound connection is needed for an HDMI to HDMI
connection.
Use the HDMI IN 2 jack for DVI connection to an
external device. Use a DVI to HDMI cable or DVI-HDMI
adapter (DVI to HDMI) for video connection and the
DVI IN (HDMI2) [R-AUDIO-L] jacks for audio.
- When using an HDMI/DVI cable connection, you must
use the HDMI IN 2 jack.
4
ANT 1 IN (AIR) / ANT 2 IN (CABLE)
Connects to an antenna or cable TV system.
5
WISELINK
Connect a USB mass storage device to view photo les
and play audio les.
6
AV IN 2
Video and audio inputs for external devices, such as a
camcorder or VCR.
S-VIDEO
Connects an S-Video signal from a camcorder or VCR.
7
(HEADPHONE)
Connects a set of external headphones for private
listening.
8
SERVICE
- Connector for SERVICE only.
- Connect this to the jack on the optional wall mount
bracket. This will allow you to adjust the TV viewing
angle using your remote control.
9
AUDIO OUT
Connects to the audio input jacks on your Amplier/
Home theater.
0
DIGITAL AUDIO OUT (OPTICAL)
Connects to a Digital Audio component.
!
POWER INPUT
Connects the supplied power cord.
@
COMPONENT IN 1,2
Connects Component video/audio.
#
KENSINGTON LOCK
(LN40A650A1F, LN46A650A1F)
The Kensington Lock (optional) is a device used to
physically x the system when used in a public place.
If you want to use a locking device, contact the dealer
where you purchased the TV.
The location of the Kensington Lock may be different
depending on its model.
➣
HDMI IN4
1 2 3 4
3
5
6
7
@# ! 0 9 8
