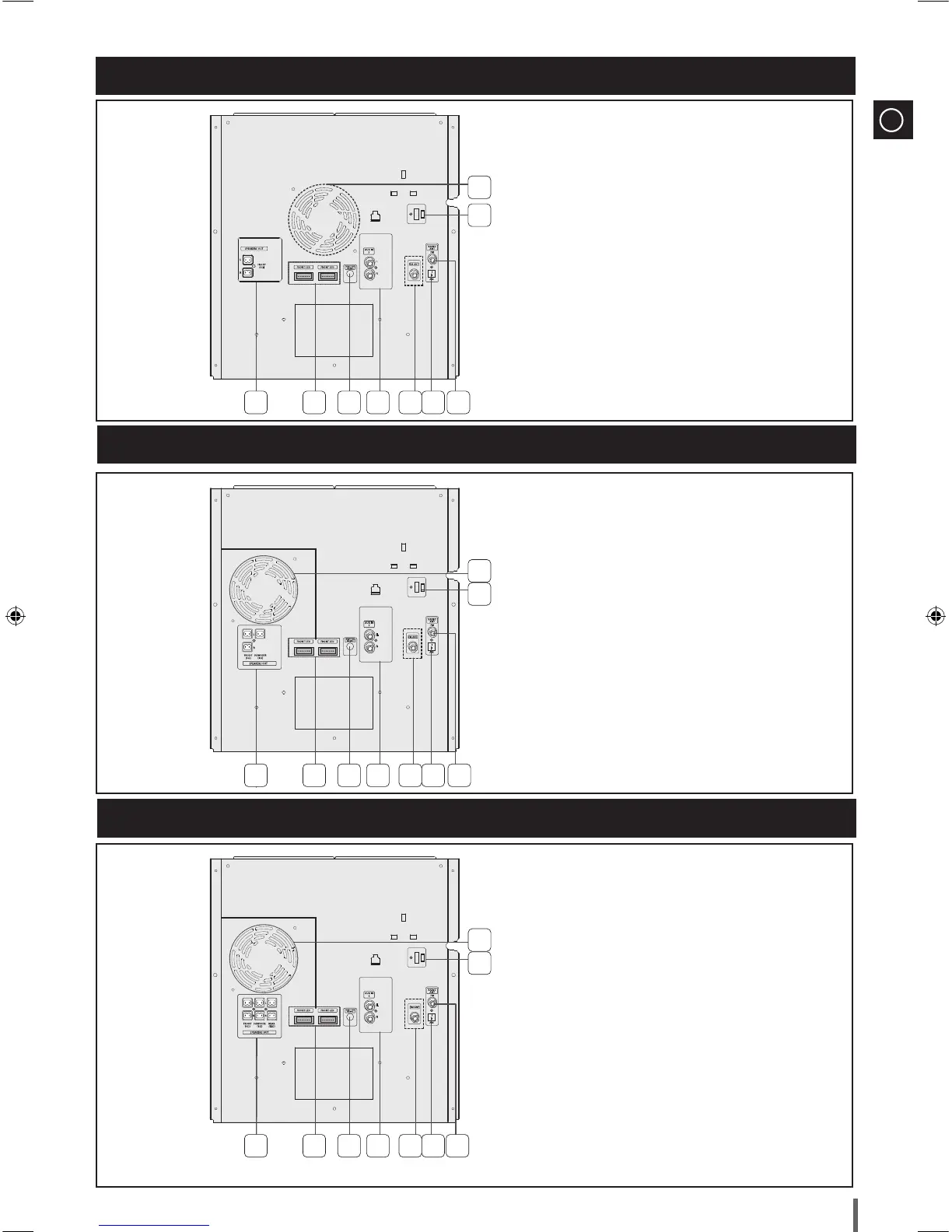

Samsung MX-D830 - Rear Panel View (MX-D830); Rear Panel View (MX-D850); Rear Panel View (MX-D870)

ENG
5
2.0 CH Speaker Connector Terminals1.
LED Terminals of the Front Speakers2.
ONLY FOR SERVICE (This jack is just for testing, please 3.
don't use it)
AUX IN 2 jack4.
FM Antenna Connector Terminal 5.
The position of FM antenna connector terminal may ☛
differ depending on your region.
AM Antenna Connector Terminal (Optional)6.
Voltage Selector (Optional)7.
This product may not support the AM or the Voltage ☛
Selector function depending on your region.
Cooling fan 8.
The fan always turns when the power is on. Secure a ☛
minimum 10 cm of clear space from all sides of the
fan when installing the product.
2.1 CH Speaker Connector Terminals1.
LED Terminals of the Front Speakers2.
ONLY FOR SERVICE (This jack is just for testing, please 3.
don't use it)
AUX IN 2 jack4.
FM Antenna Connector Terminal 5.
The position of FM antenna connector terminal may ☛
differ depending on your region.
AM Antenna Connector Terminal (Optional)6.
Voltage Selector (Optional)7.
This product may not support the AM or the Voltage ☛
Selector function depending on your region.
Cooling fan 8.
The fan always turns when the power is on. Secure a ☛
minimum 10 cm of clear space from all sides of the
fan when installing the product.
4.2 CH Speaker Connector Terminals1.
LED Terminals of the Front Speakers2.
ONLY FOR SERVICE (This jack is just for testing, please 3.
don't use it)
AUX IN 2 jack4.
FM Antenna Connector Terminal 5.
The position of FM antenna connector terminal may ☛
differ depending on your region.
AM Antenna Connector Terminal (Optional)6.
Voltage Selector (Optional)7.
This product may not support the AM or the Voltage ☛
Selector function depending on your region.
Cooling fan 8.
The fan always turns when the power is on. Secure a ☛
minimum 10 cm of clear space from all sides of the
fan when installing the product.
1
1
1
2
2
2
3
3
3
4
4
4
5 5
5 5
5 5
6
7
8
7
8
7
8
6
6
All those pictures of the Rear panel are based on MODEL: MX-D830 (with AM function)
➣
Rear Panel View (MX-D850)
Rear Panel View (MX-D830)
Rear Panel View (MX-D870)
