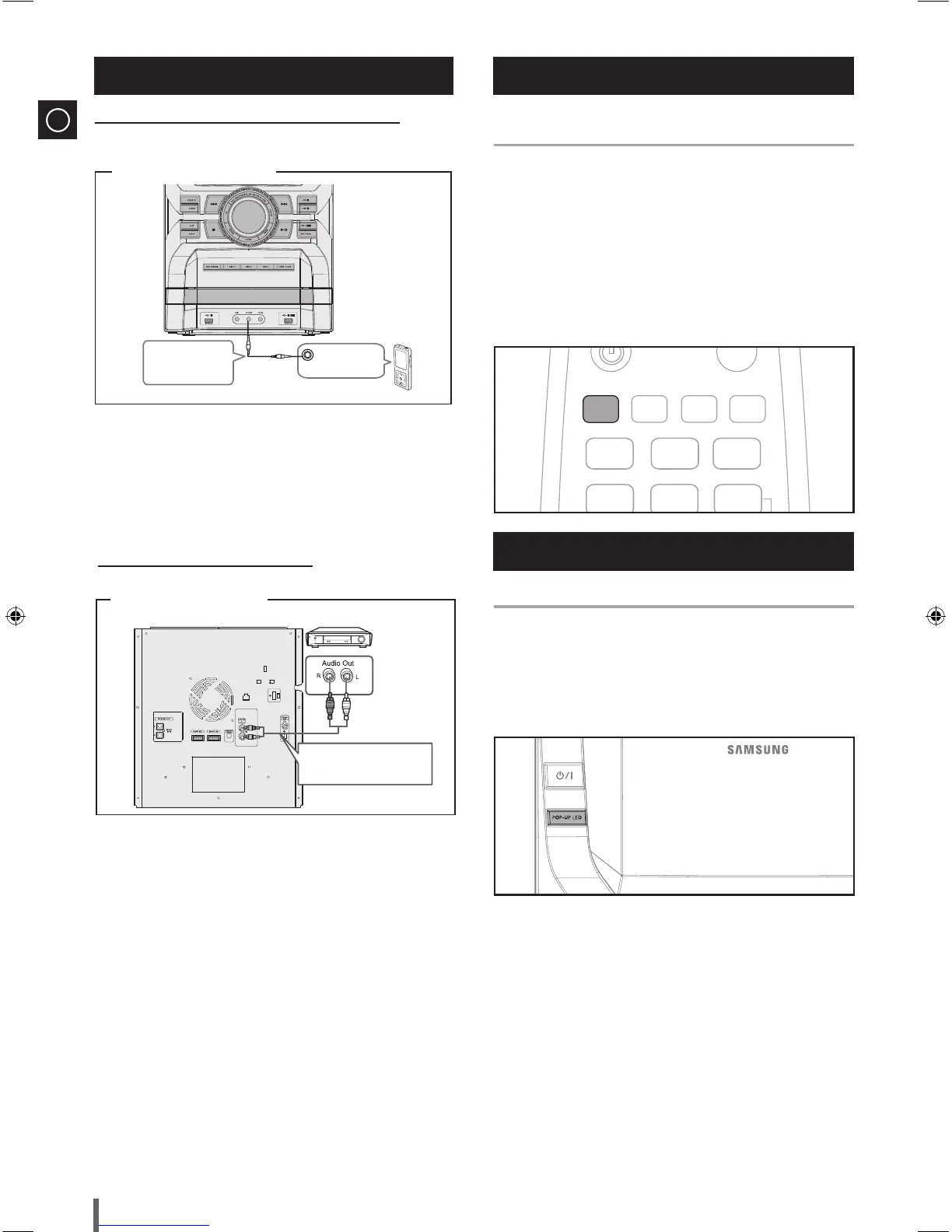

Connecting an External Analog Component
Example: Analog signal components such as a VCR, Camcorder, and TV.
Connect
1
AUX IN 2 on the player to Audio Out on the external analog
component.
•Besuretomatchconnectorcolors.
2
Press the AUX button to select the AUX 2 input.
You can select AUX 2 by pressing the FUNCTION button on the
remote control.
Connecting to an External Source
Connecting an External Component/MP3 player
Components such as an MP3 Player
Connect
1
AUX IN 1 on the front panel of the MINI COMPACT to the
Audio Out of the external component/MP3 player.
2
Press the AUX button to select the AUX 1 input.
You can select AUX 1 by pressing the FUNCTION button on the
remote control.
Audio Cable
(not supplied)
AUDIO OUT
AUX IN 1 : Front Panel
You can view all functions available on the display, adjust the brightness
of the display and select the Display/LED either on or off.
Each time you press the DISPLAY button on the remote control, the display
mode will change as following:
The Demo function
◆
All functions available on the system appear on the front panel display.
The Dimmer function
◆
The Dimmer function is selected and the display darkens.
LED OFF
◆
The LED is turned off while the dimmer function is working.
Clock ON
◆
The Clock you set is displayed.
LED/Display ON
◆
All Display and LED are turned on.
You can switch the LED mode to your preference.
Each time you press the POP-UP LED button on main unit, the LED mode
will change as following:
LED ON
◆
The LED is turned on.
LED OFF
◆
The LED is turned off.
Display function
POP-UP LED function(MX-D870 only)
Audio Cable
If the external analog component has
only one Audio Out, connect either
left or right.
(not supplied)
AUX IN 2 : Rear Panel
To Next Page
