Samsung MX-D830 - Remote Control; Where to Install Your Mini-Compact System

ENG
6
POWER
DISPLAY
TIMER
ON/OFF
REPEAT REPEAT
CD
MUTE
RDS PTY DELETE
MP3-CD/CD
SOUND
VOL VOL
EQ
TUNING /ALBUM
TUNING /ALBUM
MO/ST TUNING
MODE
RDS DISPLAY
TIMER/CLOCK SLEEP
USB REC
DISC SKIP
FUNCTION
A-B
+
-
+10
MIC VOL
CD REC
SPEED
POWER1.
CD REC SPEED2.
DISPLAY 3.
4. TIMER ON/OFF
REPEAT 5.
+106.
MUTE 7.
DELETE8.
Skip 9.
*
Fast-Backward 10.
STOP11.
12. SOUND
ENTER13.
VOLUME -14.
MO/ST15.
16.
TUNING/ALBUM
TUNING17. MODE
VOLUME +18.
19.
TUNING/ALBUM
EQ20.
PLAY21.
Fast-Forward 22.
PAUSE23.
24. MIC VOL +, -
REPEAT A-B25.
SLEEP26.
TIMER/CLOCK27.
DISC SKIP28.
USB REC29.
FUNCTION30.

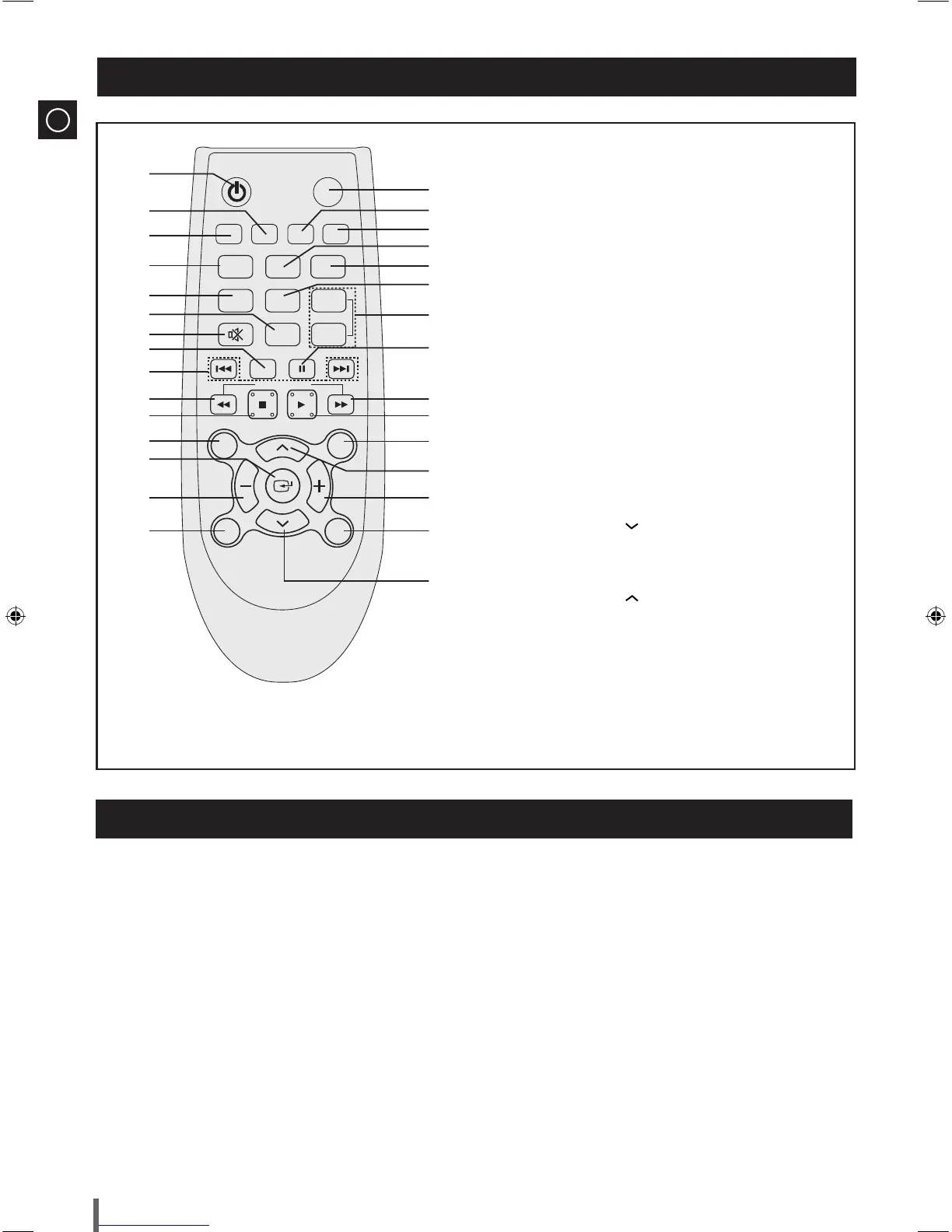

1
Remote Control
2
3
4
5
7
6
9
8
10
11
12
14
15
13
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
This product is not used the
*
RDS PTY and RDS DISPLAY function printed the [, ] button above.
Where to Install Your Mini-Compact System
To take full advantage of your new mini-compact system, follow these installation instructions before connecting
the unit.
Install the system on a flat, stable surface.
◆
Never place this unit on carpeting.
◆
Never place this unit in an outdoor area.
◆
Maintain an open space of approximately 6 inches (15 cm) on the sides and rear of the system, for ventilation
◆
purposes.
Make sure that you have enough room to open the compact disc compartment easily.
◆
Place the Speakers at a reasonable distance on either side of the system to ensure good stereo sound.
◆
Direct the Speakers towards the listening area.
◆
For optimum performance, make sure that both speakers are placed at an equal distance above the floor.
◆
