Disassembly and Assembly
18

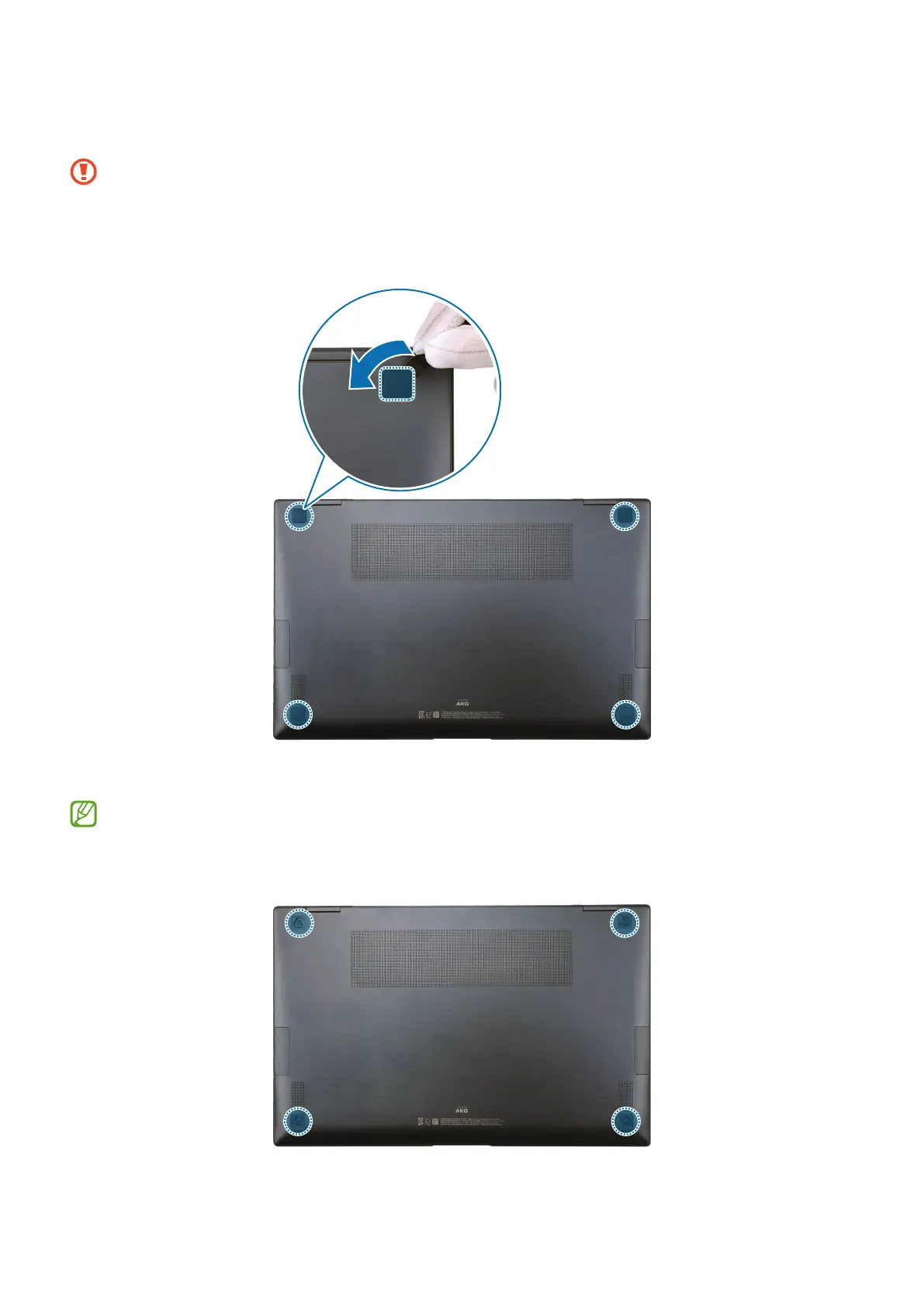

Case Rear Remove
•
Be sure to remove the case rear while the computer is fixed on a flat surface.
•
It is possible to damage parts or components when using sharp metal tools.
1 Using the opening tool, remove the 4 rubber feet on the case rear.
2 Using a cross-head screwdriver, remove the 4 screws on the case rear.
Check the number of screws that have been removed, and store them carefully
to make sure that no unassembled screws are left inside the computer during
assembly.
To Next Page
