Disassembly and Assembly
44
Battery Assembly
Leaving screws inside the computer may damage internal components, such as
the battery. When assembling, be extra careful not to leave any unassembled
screws inside the computer.

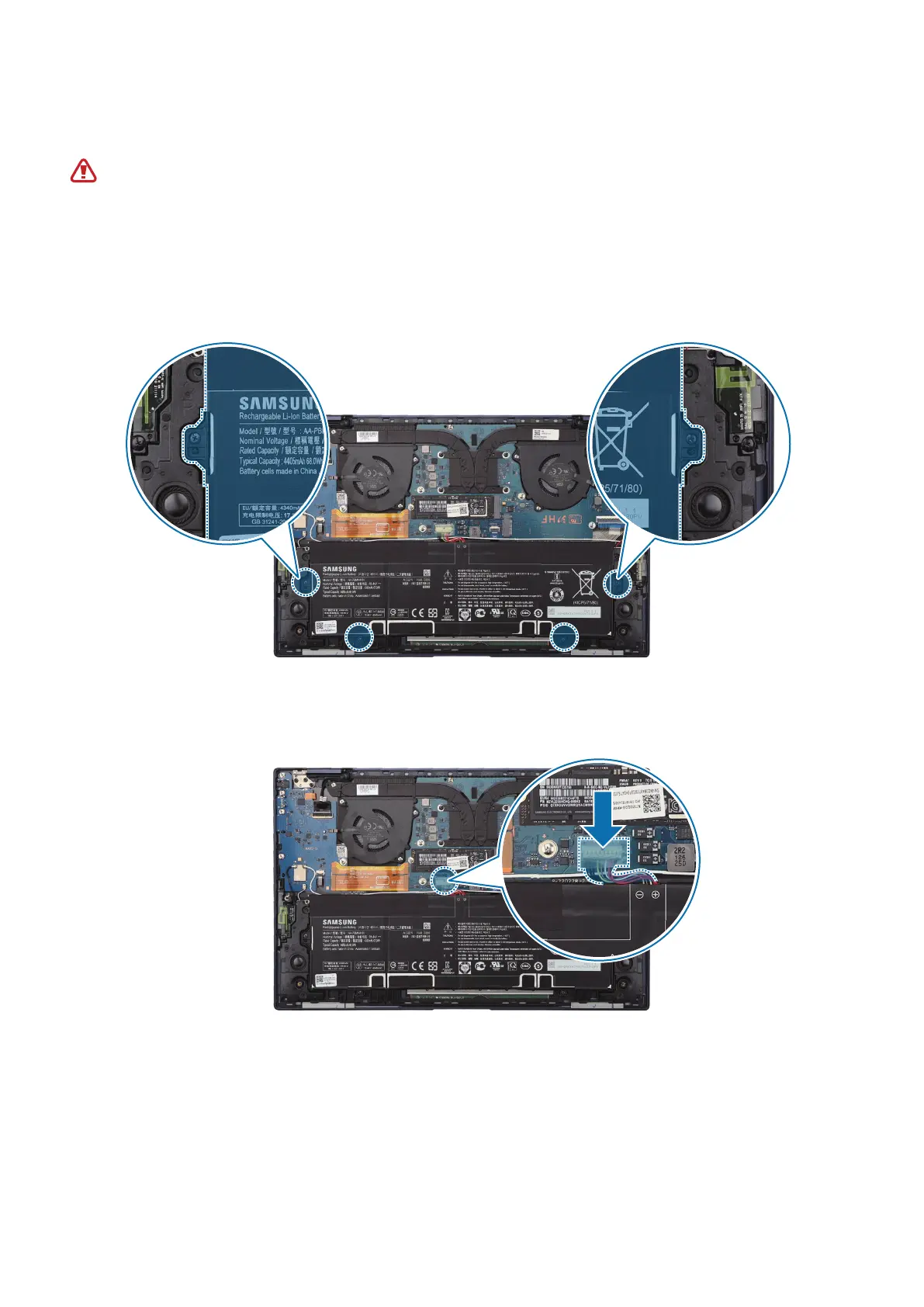

1 Place the battery module on the marked area on the case front.
Using a cross-head screwdriver, fasten the 4 screws on the battery module.
2 Press and fix the battery cable to the battery connector, and attach Kapton tape on
the battery connector.
To Next Page
