Disassembly and Assembly
35

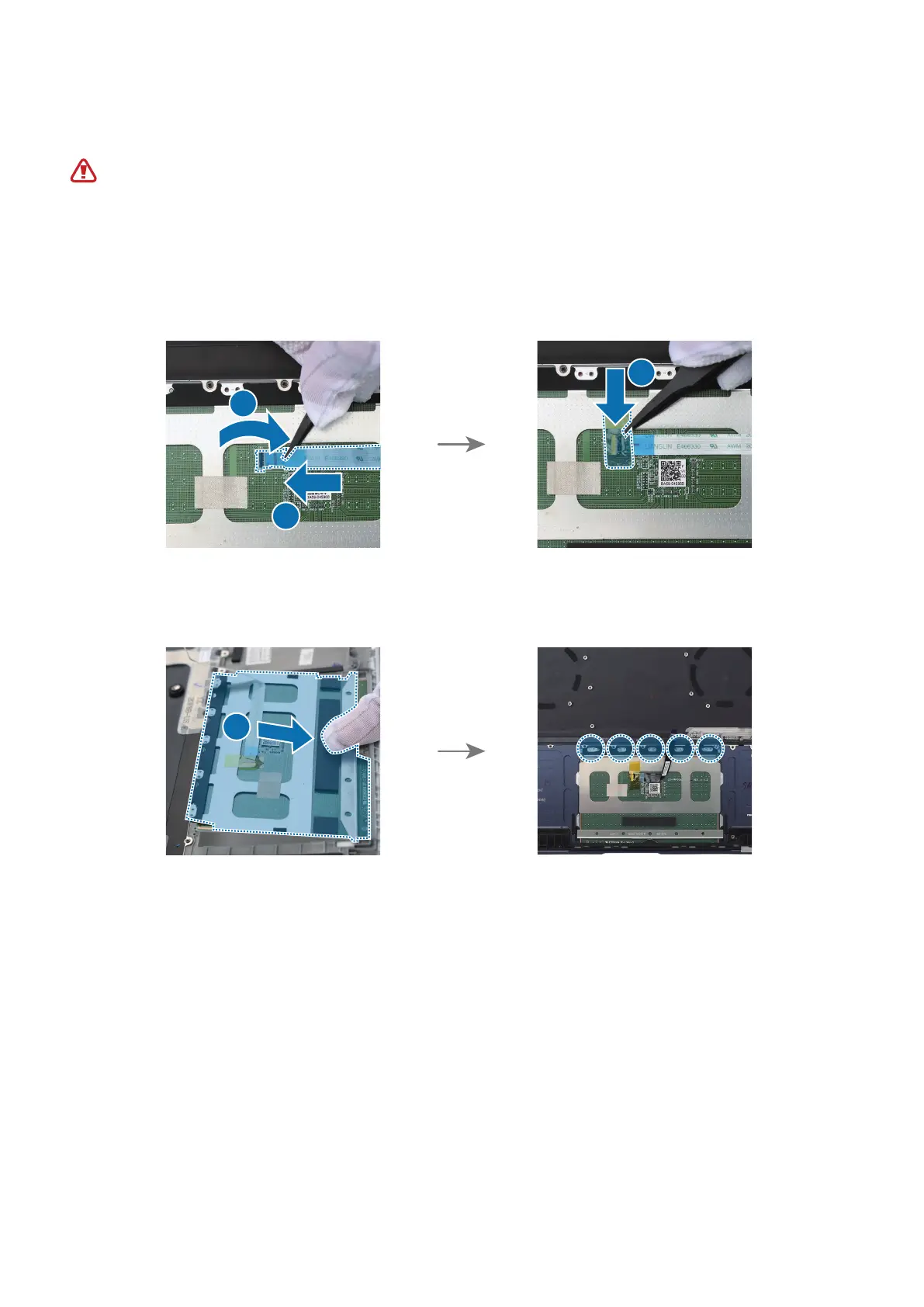

Touchpad Assembly
Leaving screws inside the computer may damage internal components, such as
the battery. When assembling, be extra careful not to leave any unassembled
screws inside the computer.
1 Using the tweezers, assemble the touchpad cable connector.
After closing the lever, attach the Kapton tape.
2
3
1
2 After assembling the touchpad module, assemble the 5 screws on the touchpad using
a cross-head screwdriver.
1
To Next Page
