Disassembly and Assembly
27
Main Board and Sub Board Remove

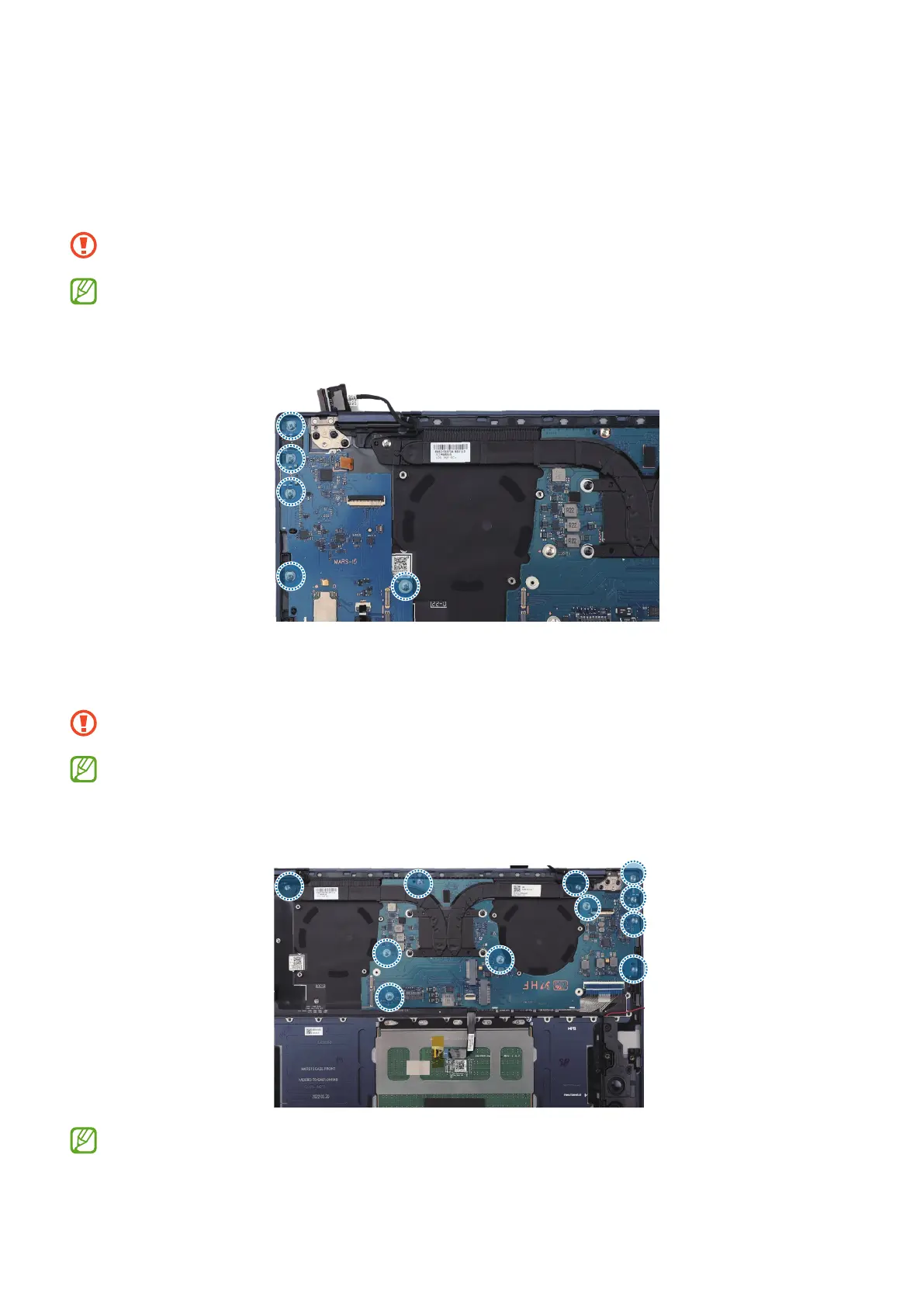

1 Using a cross-head screwdriver, remove the 5 screws on the sub board and lift the
sub board up to separate it.
Be careful not to damage the near components.
Check the number of screws that have been removed, and store them carefully
to make sure that no unassembled screws are left inside the computer during
assembly.
2 Using a cross-head screwdriver, remove the 11 screws on the main board and lift the
main board up to separate it.
Be careful not to damage the near components.
Check the number of screws that have been removed, and store them carefully
to make sure that no unassembled screws are left inside the computer during
assembly.
After you finish disassembling, refer to Main Board Assembly and Sub Board
Assembly for how to reassemble.
