Disassembly and Assembly
24

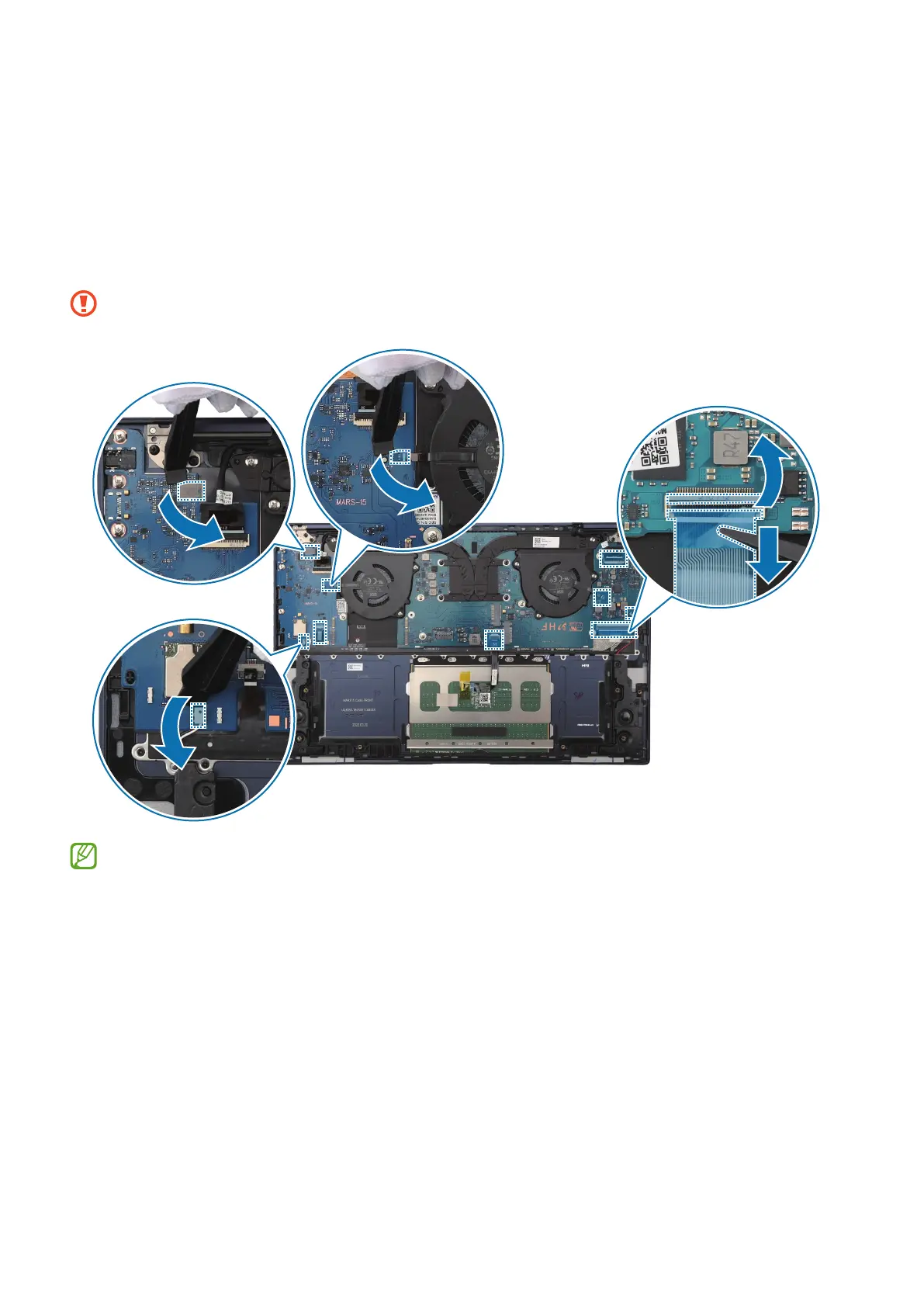

2 Open the lever of each connector and disconnect the cables.
•
Using the opening tool, lift up and separate the fingerprint power button cable.
•
Using the opening tool, lift up and separate the top of the speaker connector.
•
Using the opening tool, lift up the screen, fans, keyboard, keyboard backlit, and
touchpad connectors’ levers and separate the cables with tweezers by pulling the
connectors.
Be careful not to damage the lever.
After you finish disassembling, refer to Cable Assembly for how to reassemble.
