CHAPTER 2. Ошибка! Используйте вкладку "Главная" для применения 제목 1 к тексту, который должен здесь

отображаться.

2-4

OfficeServ 7070 Side view

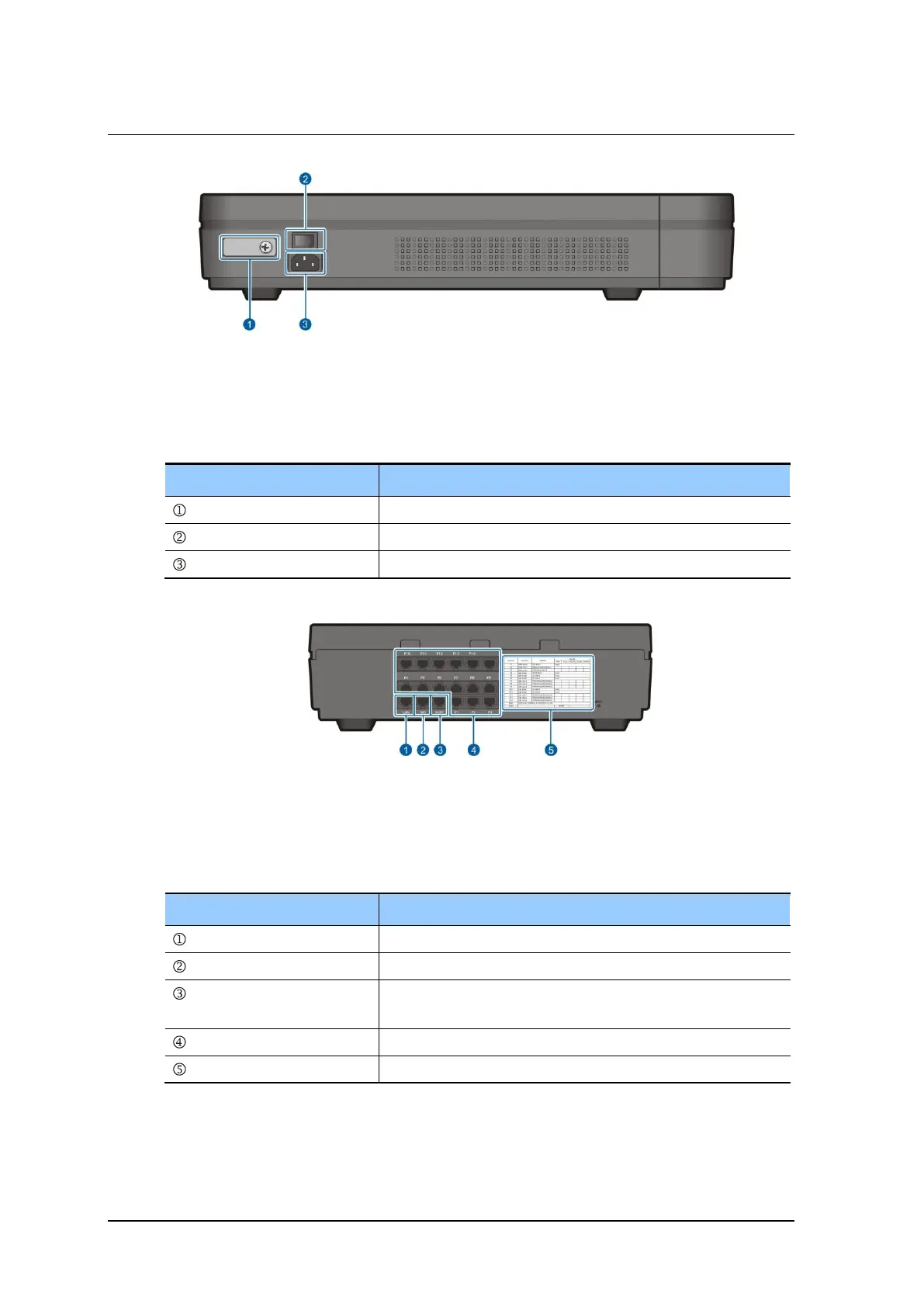

Figure 2.2 OfficeServ 7070 side view-1

The descriptions about each part are listed in the table below.

Table 2.2 Parts on the side of OfficeServ 7070-1

Part

Function

Ground Lug

Ground lug for system communications

Power Switch

Switch to turn the OfficeServ 7070 on/off

Power Connector

Connector to use when connecting to the power cable

Figure 2.3 OfficeServ 7070 side view -2

The descriptions about each part are listed in the table below.

Table 2.3 Parts on the side of OfficeServ 7070-2

Part

Function

LAN

LAN port

SIO

Debugging port

MISC

Connector used to connect to an external audio device,

broadcasting device, or shared bell, etc.

P1~P14

General-purpose ports

Installation Record Label

Label to record the installed boards on.
