Board View
The appearance of the E8S extension board is as follows:

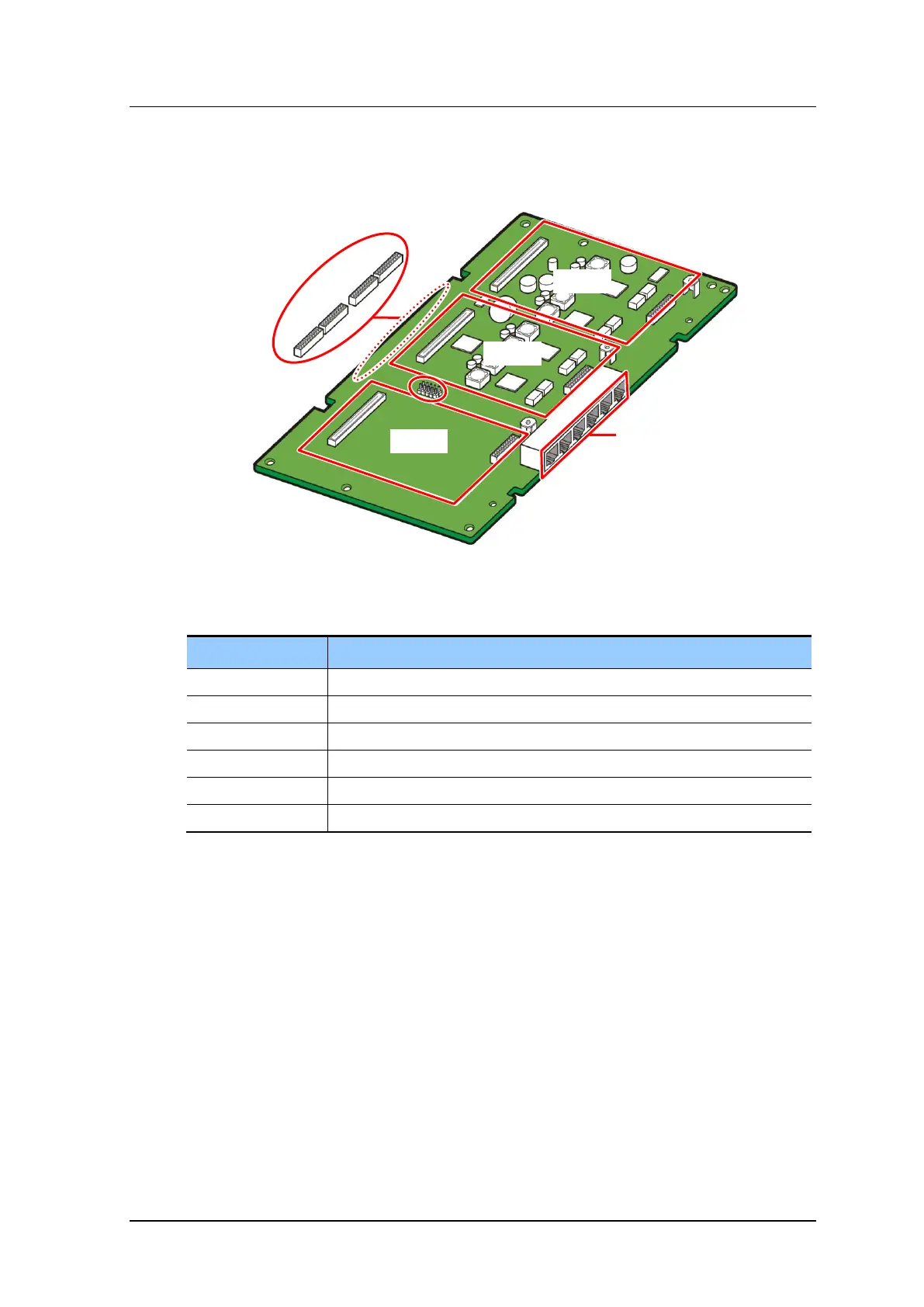

Figure 2.12 E8S Board
Table 2.13 E8S Board Configuration
Port, LED
Description
J700
Port for CPLD fusing
LOC1
An option board is mounted. (Mountable boards: 4TRM, 4DLM, 4SL2, 2BRM)
LOC2
An option board is mounted. (Mountable boards: 4TRM, 4DLM, 4SL2, 2BRM)
LOC3
An option board is mounted. (Mountable boards: 4TRM, 4DLM, 4SL2, 2BRM)
J701
Line connection part
P7, P8, P9, P10
E8S board connectors
LOC 1
LOC 2
LOC 3
J700
J701
P10
P9
P8
P7
