Board View

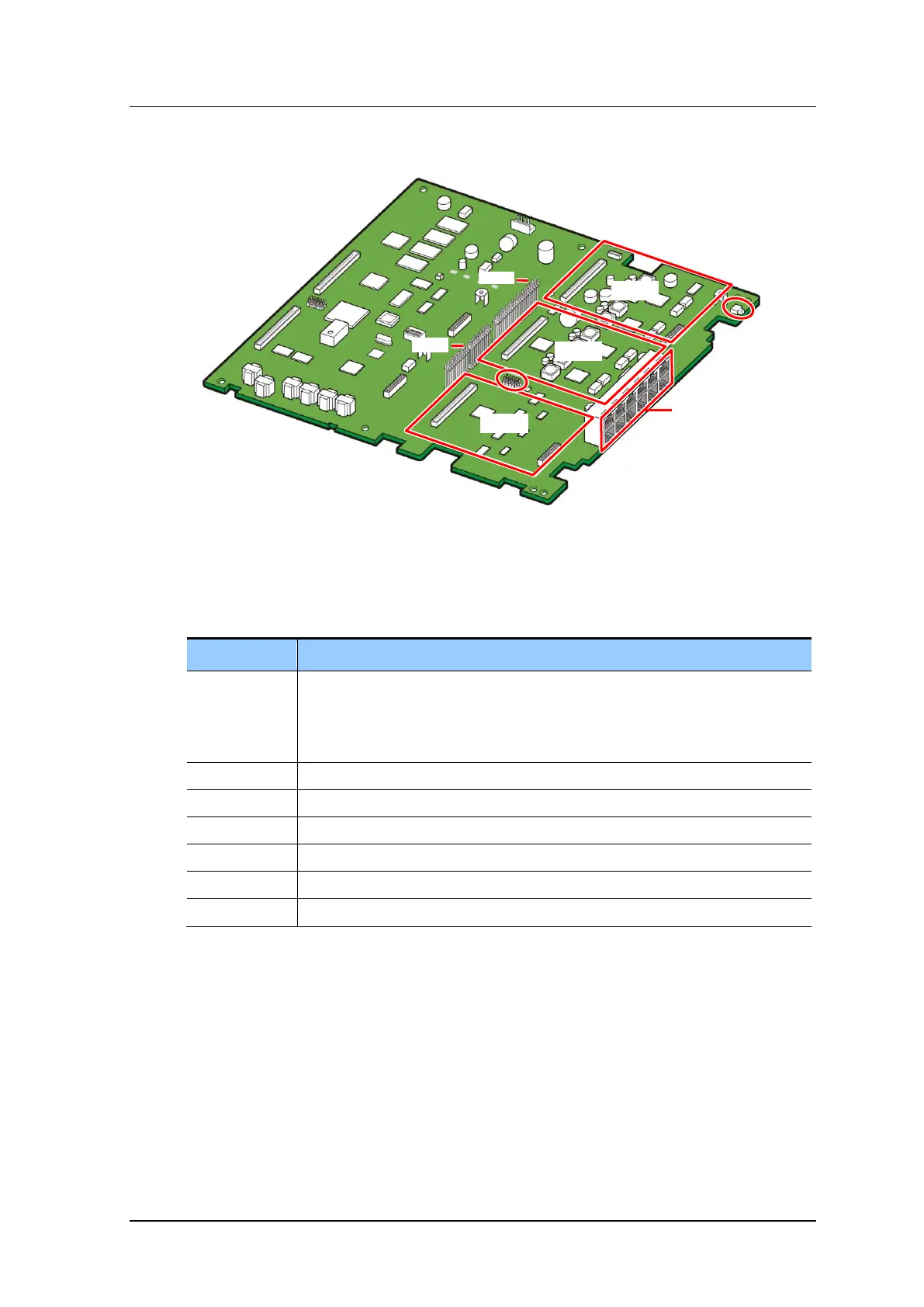

Figure 2.5 BMP (B8S Part)
The functions of the parts of the BMP (B8S part) are listed in the table below:
Table 2.8 BMP (B8S Part) Configuration
Port, LED
Description
S1000
System reset button
- When held down for less than seven (7) seconds: Just restarts the system.
- When held down for more than seven (7) seconds: Clears the system database
completely and restarts the system.
J1002
Port for CPLD fusing
LOC1
An option board is mounted. (Mountable boards: 4TRM, 4DLM, 4SL2, 2BRM)
LOC2
An option board is mounted. (Mountable boards: 4TRM, 4DLM, 4SL2, 2BRM)
LOC3
An option board is mounted. (Mountable boards: 4TRM, 4DLM, 4SL2, 2BRM)
J1000
Line connection part
P1004, P1007
E8S board connectors
LOC 1
LOC 2
LOC 3
P1004
P1007
J1002
S1000
J1000
