2.3.3.2 4DLM
The 4 Port DLI Module (4DLM) board provides four (4) digital station ports.
It interoperates with a Samsung digital phone through a station to provide the voice
communication function.
Specification
The specification of the 4DLM voice station board is as follows:
 4DLM board: Provides four (4) station ports and 1B+D (a voice channel and a signal
channel)
Board View
The 4DLM board is a daughter board which can be mounted on the BMP (MAIN part),
BMP (B8S part) or E8S board.

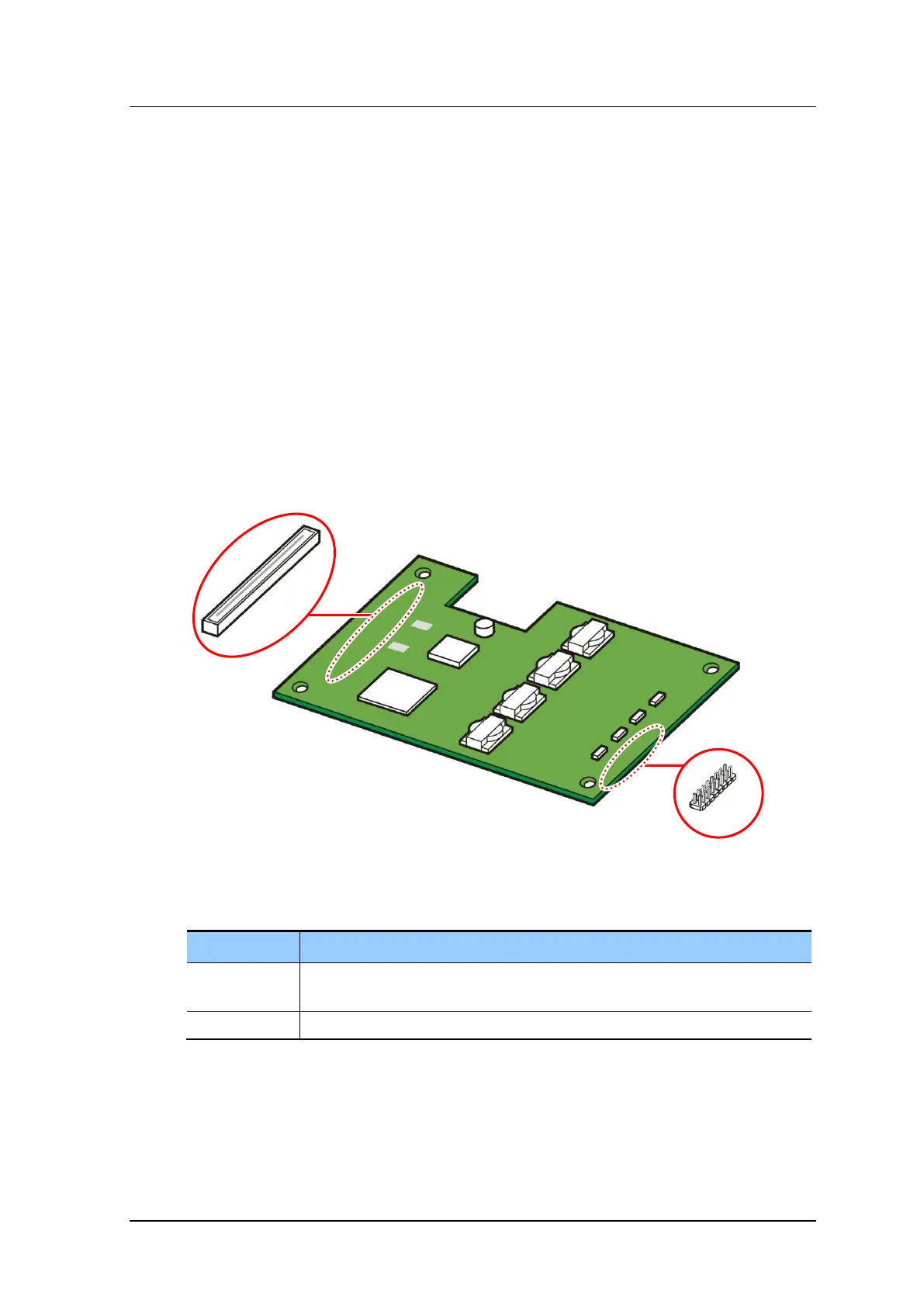

Figure 2.11 4DLM Board
Table 2.12 4DLM Board Configuration
Port
Description
P1
100-pin Connector
Connector for connecting a signal line to the base board (BMP or E8S)
P2
Connector for connecting lines to the four (4) ports
P1
P2
