Line connection part
The BMP (B8S part) has a line connection part which provides the ports for connecting the
system LAN/SIO/MISC lines and subscriber/trunk lines.

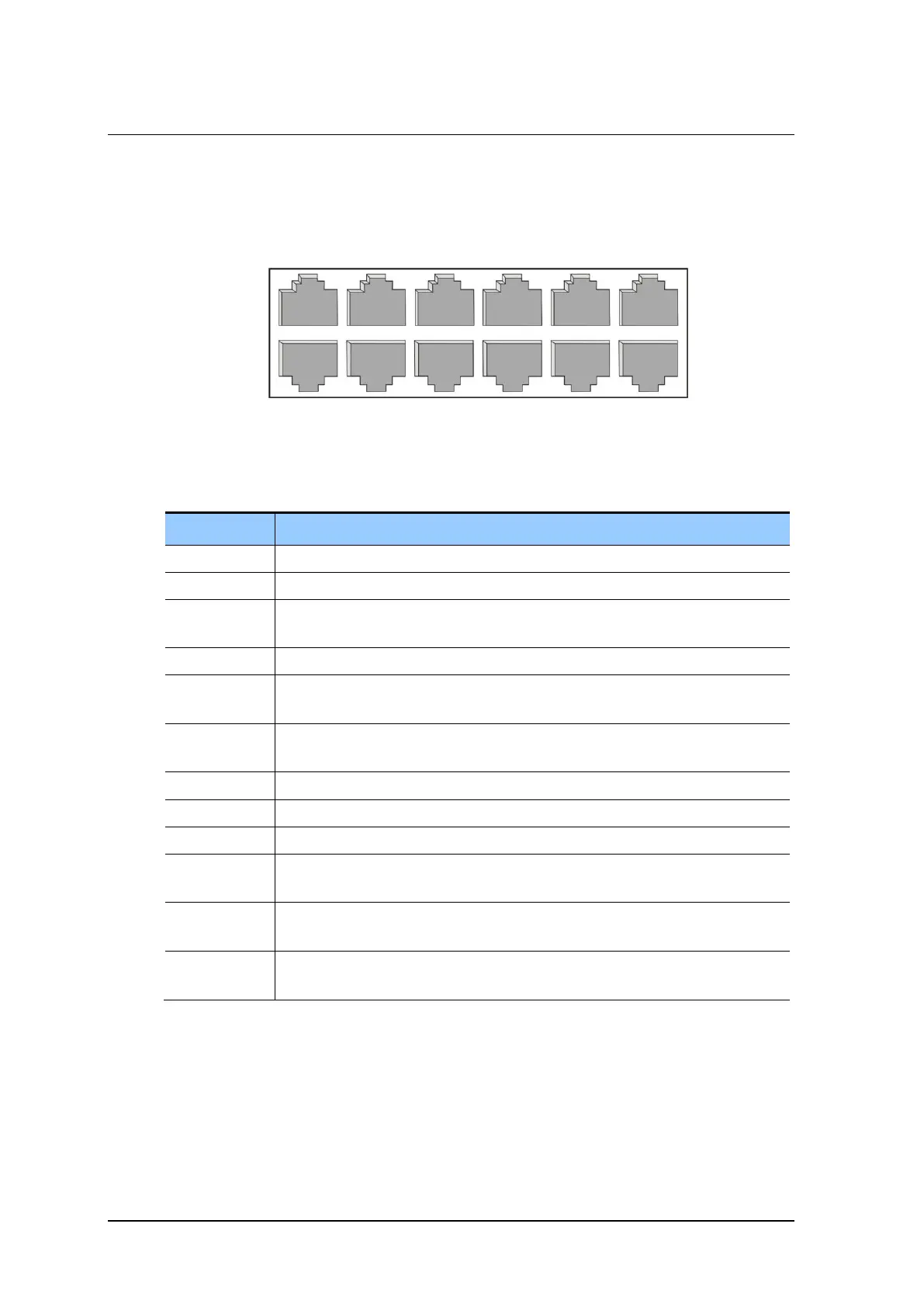

Figure 2.6 BMP (B8S Part) Line Connection Part
Table 2.9 BMP (B8S Part) Ports for External Connections
Port
Description
LAN
System LAN port, 100 Mbps. The BMP (MAIN part) supports this function.
SIO
System SIO port
MISC
System MISC ports (A port for an external sound source, a port for external
paging, two (2) ports for dry contact)
P1
Four (4) DLI ports for the BMP (MAIN part)
P2
Line connector for the option board (PRM/4DLM/4SL2) mounted at LOC1 of the
BMP (MAIN part)
P3
Line connector for the option board (4DLM/4SL2) mounted at LOC2 of the BMP
(MAIN part)
P4
Line connector for the BMP (B8S part) ATRK ports (four (4) ports)
P5
Line connector for the BMP (B8S part) 8SLI ports (four (4) ports)
P6
Line connector for the BMP (B8S part) 8SLI ports (four (4) ports)
P7
Line connector for the option board (4TRM/2BRM/4DLM/4SL2) mounted at
LOC1 of the BMP (B8S part)
P8
Line connector for the option board (4TRM/2BRM/4DLM/4SL2) mounted at
LOC2 of the BMP (B8S part)
P9
Line connector for the option board (4TRM/2BRM/4DLM/4SL2) mounted at
LOC3 of the BMP (B8S part)
P4
P5
P6
P7
P8
P9
LAN
SIO
MISC
P1
P2
P3
