Troubleshooting
Samsung Electronics 6-13

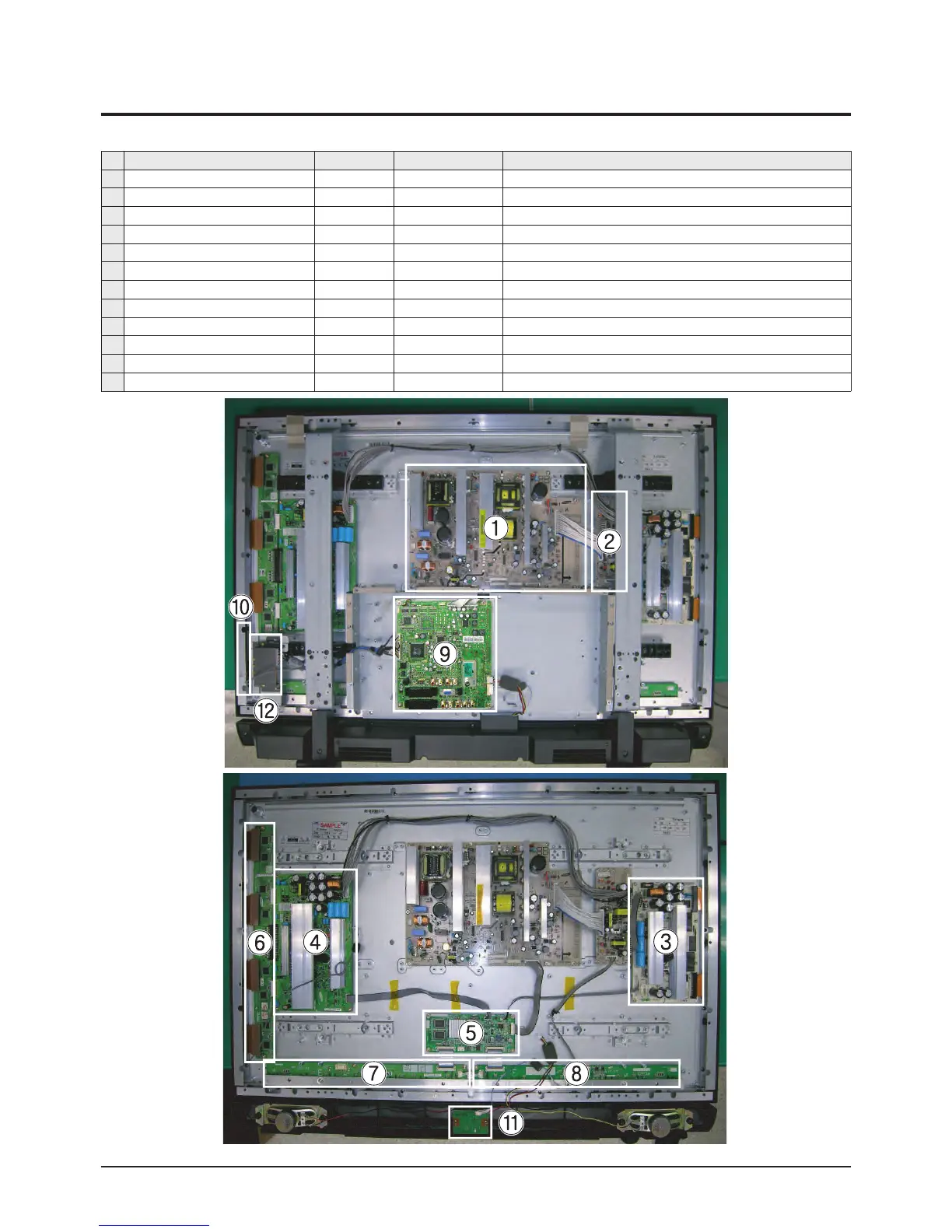

6-3 Troubleshooting Procedures by ASS'Y
No Assy Code No. Description Major Symptoms
1 ASSY PCB P-SMPS BN96-03052A Main SMPS No power, Blank screen, the Relay repeats On and Off.
2 ASSY PCB P-SMPS BN96-01856A DC-DC SMPS Blank screen, the Relay repeats On and Off.
3 ASSY PDP P-X MAIN BOARD BN96-03101A X Main Board Blank screen
4 ASSY PDP P-Y MAIN BOARD BN96-03102A Y Main Board Blank screen
5 ASSY PDP MODUEL P-LOGIC MAIN BOARD BN96-03106A Logic Board Blank screen, Screen noise
6 ASSY PDP P-Y SCAN BOARD BN96-03103A Y Scan Board Row Bar screen is blank
7 ASSY PDP P-ADDRESS E-BUFF BOARD BN96-03104A Address E Buffer Board Corresponding Buffer Board block screen is blank.
8 ASSY PDP P-ADDRESS F-BUFF BOARD BN96-03105A Address F Buffer Board Corresponding Buffer Board block screen is blank.
9 ASSY PCB MISC-MAIN BN94-00933B Main Board No Power, Abnormal screen for each input source, PIP screen trouble, Sound trouble
10 ASSY BOARD P-FUNCTION BN96-02784A Function Key Board The side function key does not work properly
11 ASSY BOARD P-POWER&IR BN96-02050D Power Button Board The remote control does not work properly, the LED does not work properly.
12 ASSY BOARD P-SIDE AV BN96-03075A Side AV Board The AV2 and S-VIDEO2 modes do not work properly
※ The ASS'Y code can be changed, see "5 Chapter. Electrical Part List."
