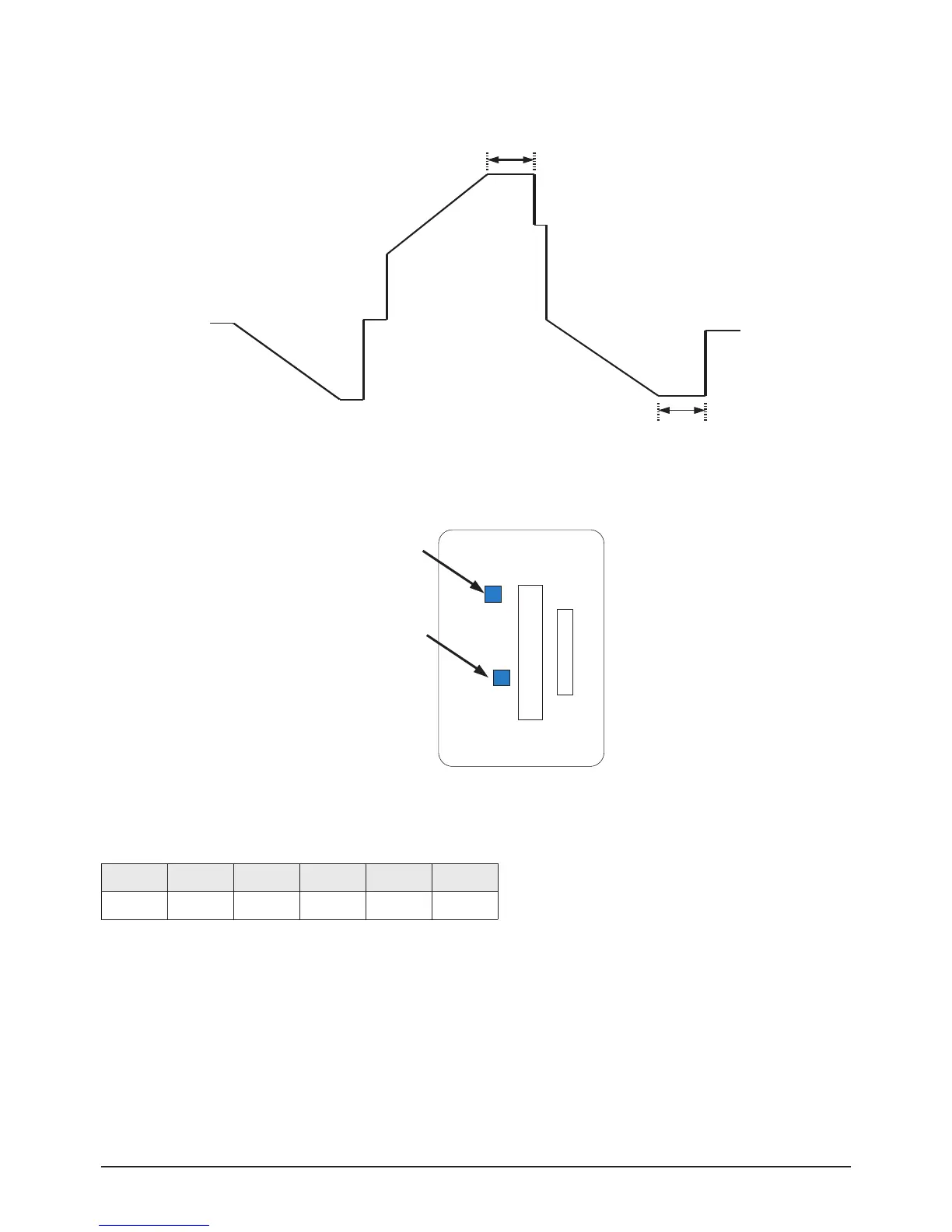

<Voltage Adjustment Specifications>
< Y-Main >
120usec
70usec
Falling ramp
Variable register
Rising ramp
Variable register
Vset Vs Vsc_l Vsc_h Ve Va
201V 207V -190V -120V 110V 65V
▶ Adjust the drive waveform so that the main reset (rising, falling:40usec) is the same as those in the F/W pattern.
(※ Attachment 1 reference)
