PCB Diagram
Samsung Electronics 9-1
9. PCB Diagram

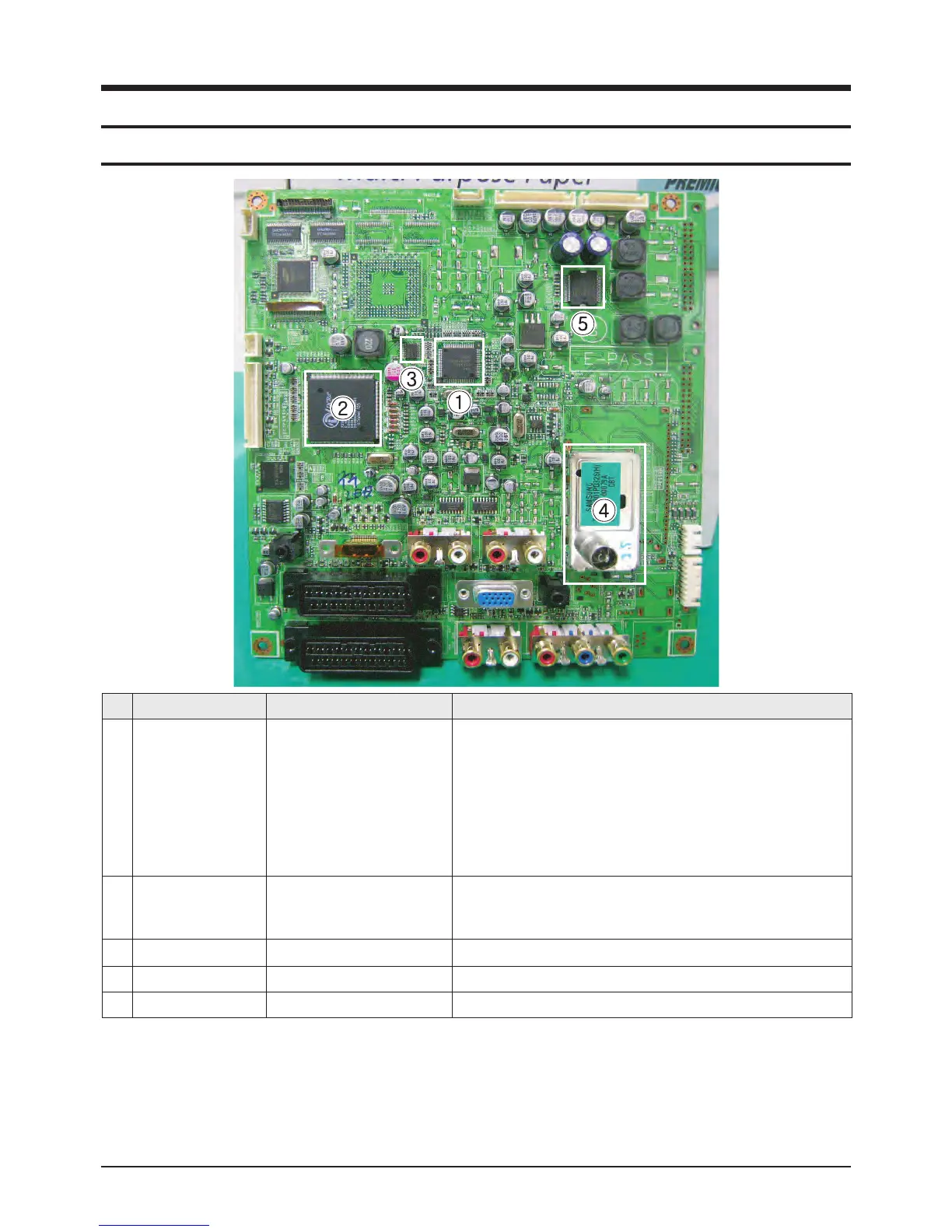

9-1 Main Board
No Name Function Description
①
SVP-PX Scaler IC Controller
SVPTMPX contains dual-purposed triple 10-bit high-precision and
high speed video ADCs for both PC and video inputs, the high
speed HDMI could support all HDMI inputs up to 135MHz with
HDCP format, the highperformance multi-format 3D digital comb
video decoder that supports NTSC, PAL, and SECAM*, a HDTV
sync separator, motion adaptive de-interlacing engine, and the video
format conversion engine, supporting multi-window display in many
different output modes.
②
M30840SGP IC MICOM
With a 16-Mbyte address space, this microcomputer combines
advanced instruction manipulation capabilities to process complex
instructions by less bytes and execute instructions at higher speed.
③
FBE IC DNIe Image enhancement IC
④
TCPS3001PD32S(H) TUNER Tuner CH Tuning
⑤
STA323W IC AUDIO-AMP Audio power amplifiers
