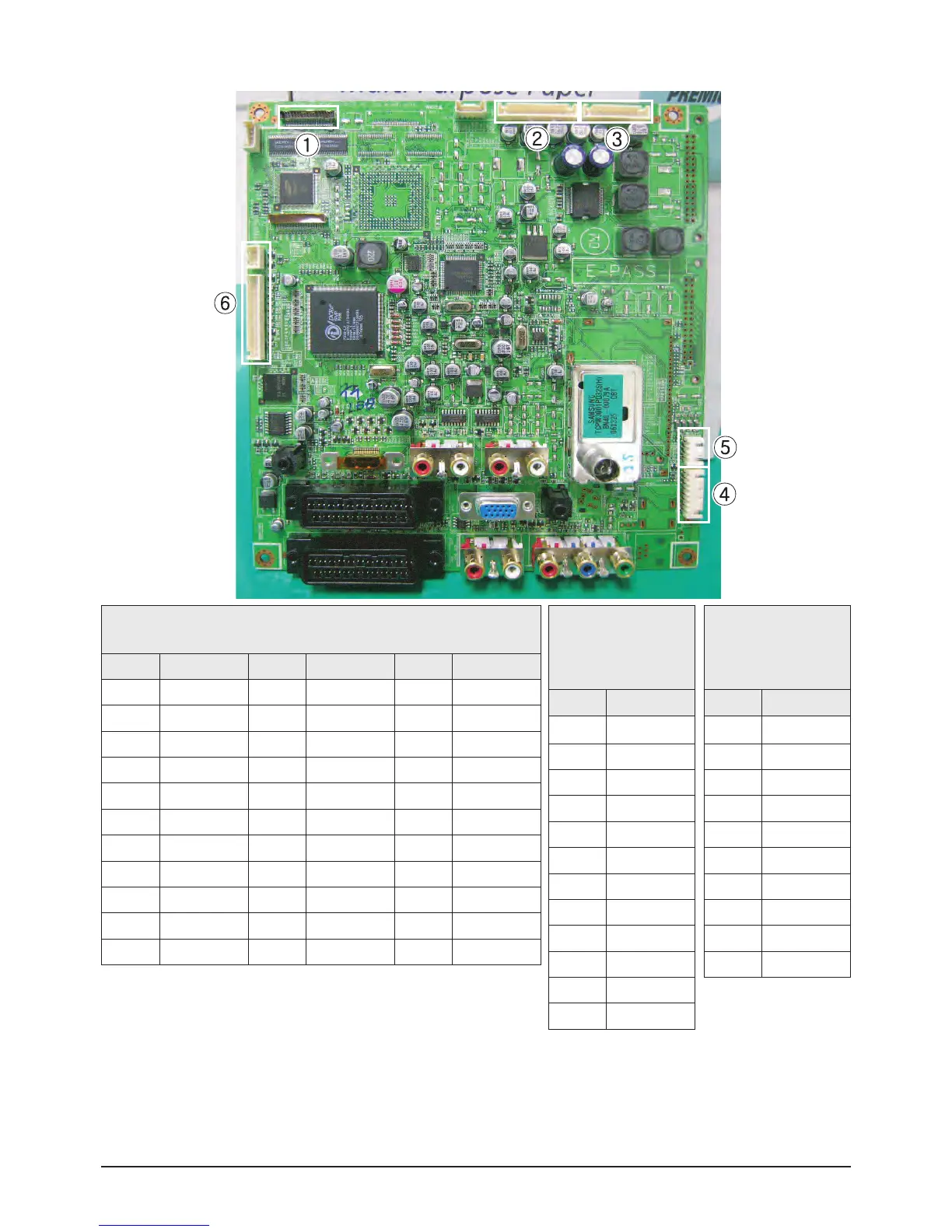

PCB Diagram
9-2 Samsung Electronics
②
CN804-1(Main SMPS)
↔
CN102(Main Board)
Pin No. Signal
1 5.3V
2 RTN
3 N/C
4 N/C
5 RTN
6 RTN
7 12V
8 PS_ON
9 RTN
10 STBY
11 FAN_ON
12 FAN_D
③
CN803(Main SMPS)
↔
CN108(Main Board)
Pin No. Signal
1 6.5V
2 RTN
3 12V
4 RTN
5 18Vamp
6 18Vamp
7 RTN_amp
8 RTN_amp
9 Vt
10 RTN
①
CN2013(Logic B'D) ↔ CN902(Main Board)
Pin No. Signal Pin No. Signal Pin No. Signal
1 GND 12 TXOUT2+ 23 TXOUT0B-
2 GND 13 GND 24 TXOUT0B+
3 TXOUT- 14 GND 25
4 TXOUT+ 15 TXOUTCLK- 26 GND
5 GND 16 TXCLKOUT+ 27 SCL_G
6 GND 17 28 GND
7 TXOUT- 18 29 SDA_G
8 TXOUT+ 19 TXOUT3- 30 GND
9 20 TXOUT3+ 31
10 21 32 GND
11 TXOUT2- 22 33 GND
To Next Page
