Samsung PS42E7SX - PDP Module

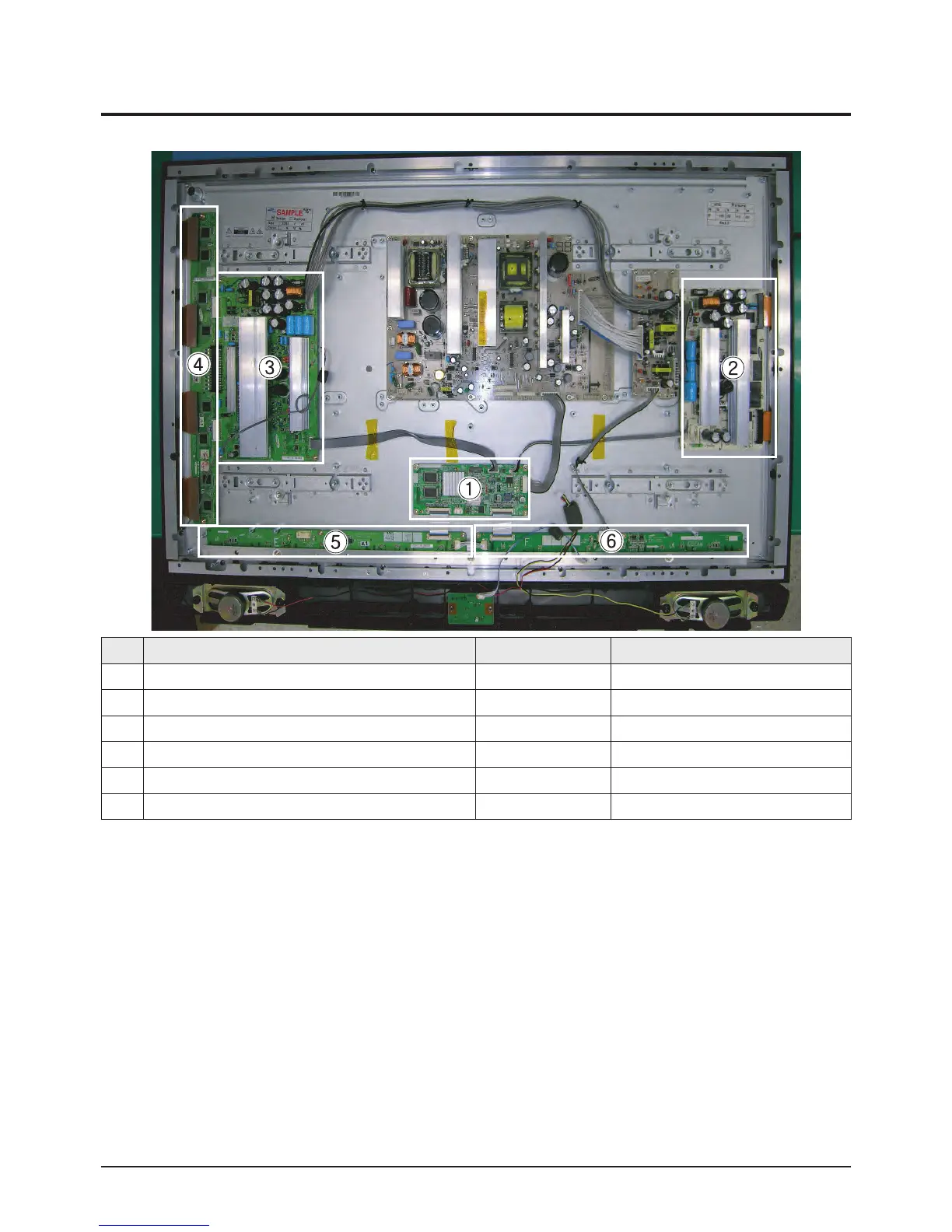

PCB Diagram
Samsung Electronics 9-7
9-7 PDP Module
※ The ASS'Y code can be changed, see "5 Chapter. Electrical Part List."
No Assy Code No. Description
①
ASSY PDP MODULE P-LOGIC MAIN BOARD BN96-03106A Logic Main Board
②
ASSY PDP MODULE P-X MAIN BOARD BN96-03101A X Drive Board
③
ASSY PDP MODULE P-Y MAIN BOARD BN96-03102A Y Drive Board
④
ASSY PDP MODULE P-Y MAIN SCAN BUFFER BN96-03103A Y Buffer Board
⑤
ASSY PDP MODULE P-ADDRESS E BUFFER BN96-03104A Address Buffer Board
⑥
ASSY PDP MODULE P-ADDRESS F BUFFER BN96-03105A Address Buffer Board
