Part name How to do Descriptive Picture
Relay O/L

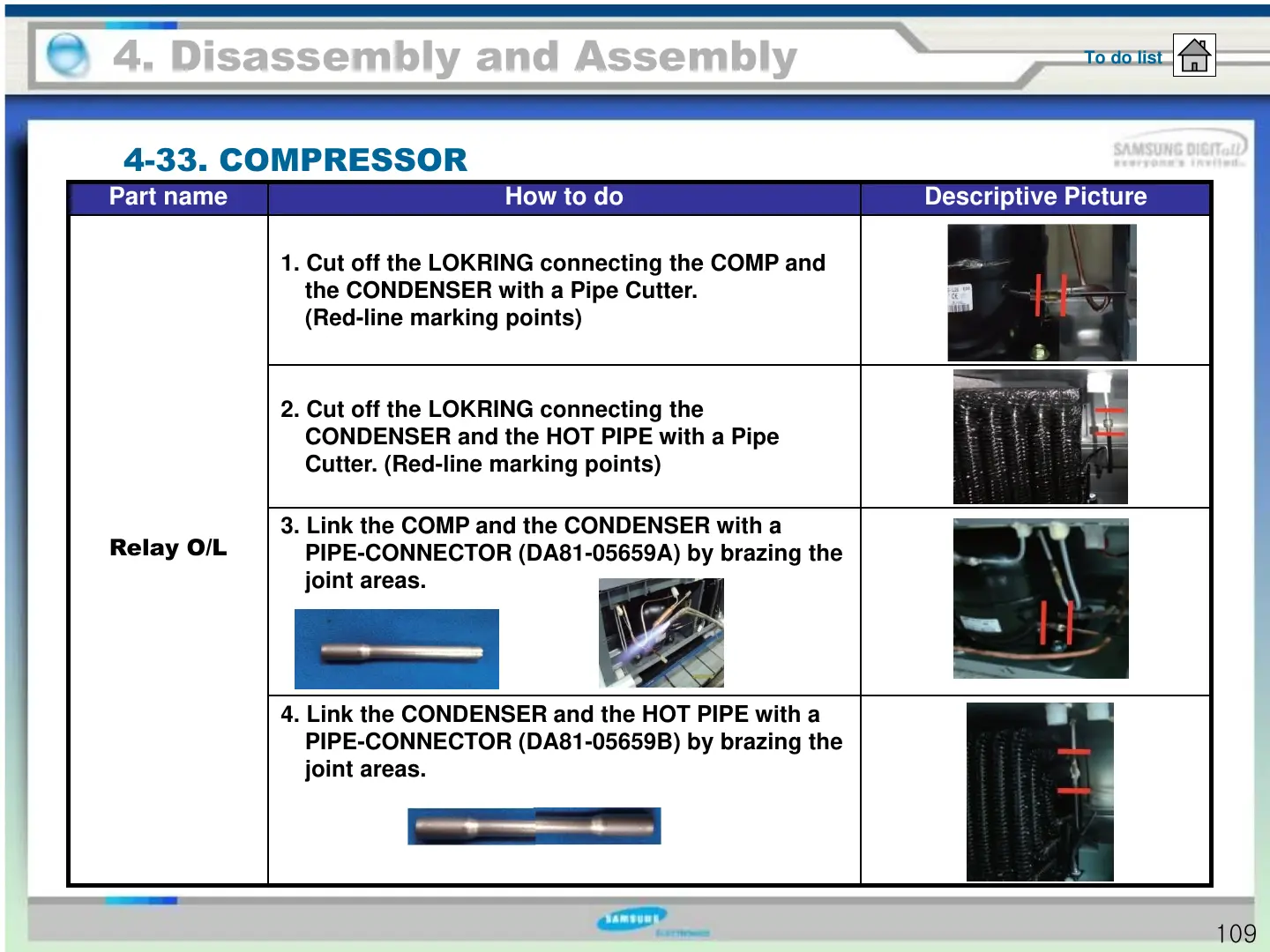

1. Cut off the LOKRING connecting the COMP and
the CONDENSER with a Pipe Cutter.
(Red-line marking points)
2. Cut off the LOKRING connecting the
CONDENSER and the HOT PIPE with a Pipe
Cutter. (Red-line marking points)
3. Link the COMP and the CONDENSER with a
PIPE-CONNECTOR (DA81-05659A) by brazing the
joint areas.
4. Link the CONDENSER and the HOT PIPE with a
PIPE-CONNECTOR (DA81-05659B) by brazing the
joint areas.
4. Disassembly and Assembly
4-33. COMPRESSOR
