6. Self Diagnosis & Trouble Shooting

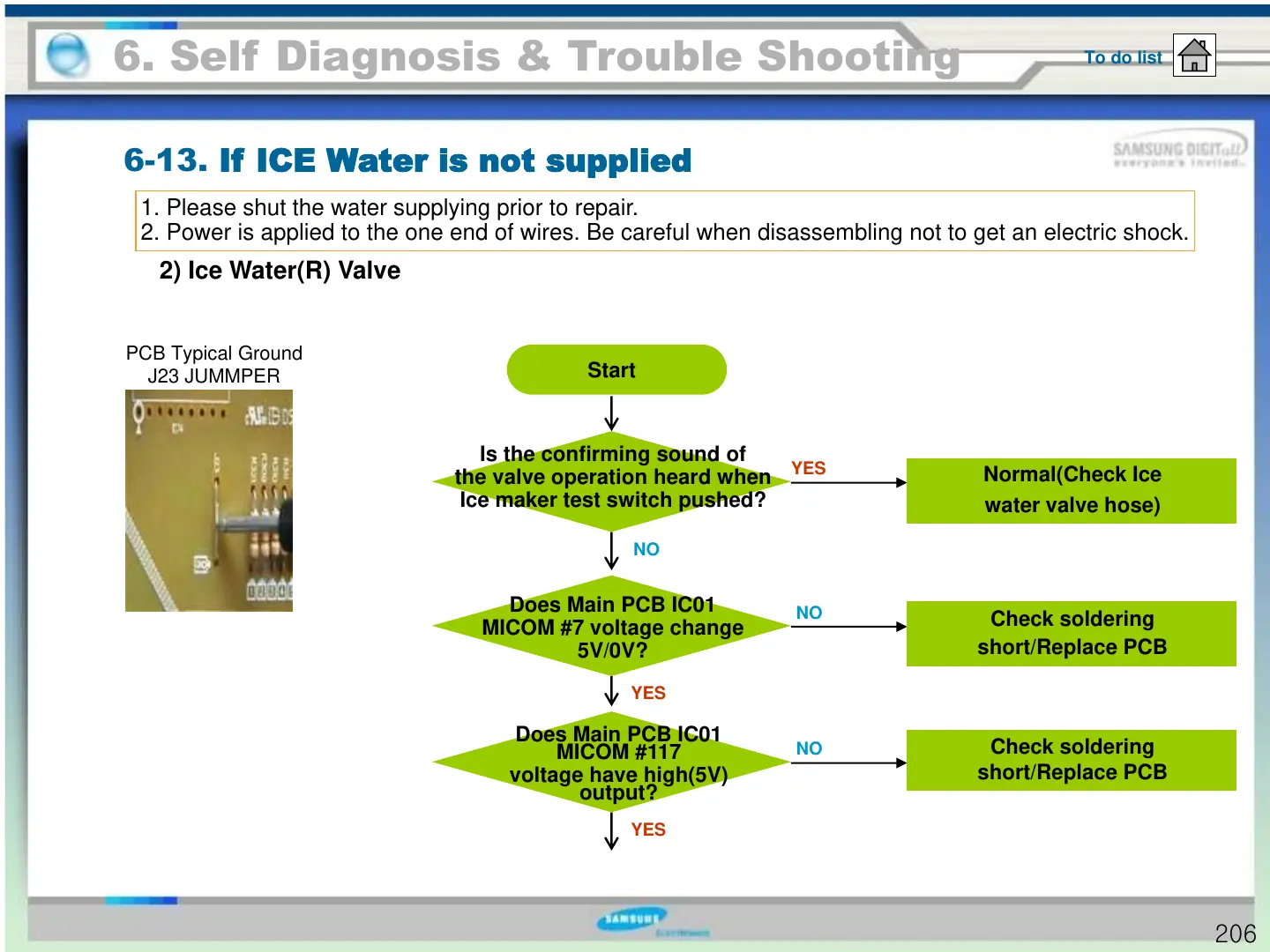

6-13. If ICE Water is not supplied
To do list
Start
Is the confirming sound of
the valve operation heard when
Ice maker test switch pushed?
NO
Does Main PCB IC01
MICOM #7 voltage change
5V/0V?
NO
YES
Does Main PCB IC01
MICOM #117
voltage have high(5V)
output?
NO
Check soldering
short/Replace PCB
YES
Normal(Check Ice
water valve hose)
Check soldering
short/Replace PCB
1. Please shut the water supplying prior to repair.
2. Power is applied to the one end of wires. Be careful when disassembling not to get an electric shock.
PCB Typical Ground
J23 JUMMPER
YES
206
2) Ice Water(R) Valve
To Next Page
