6. Self Diagnosis & Trouble Shooting

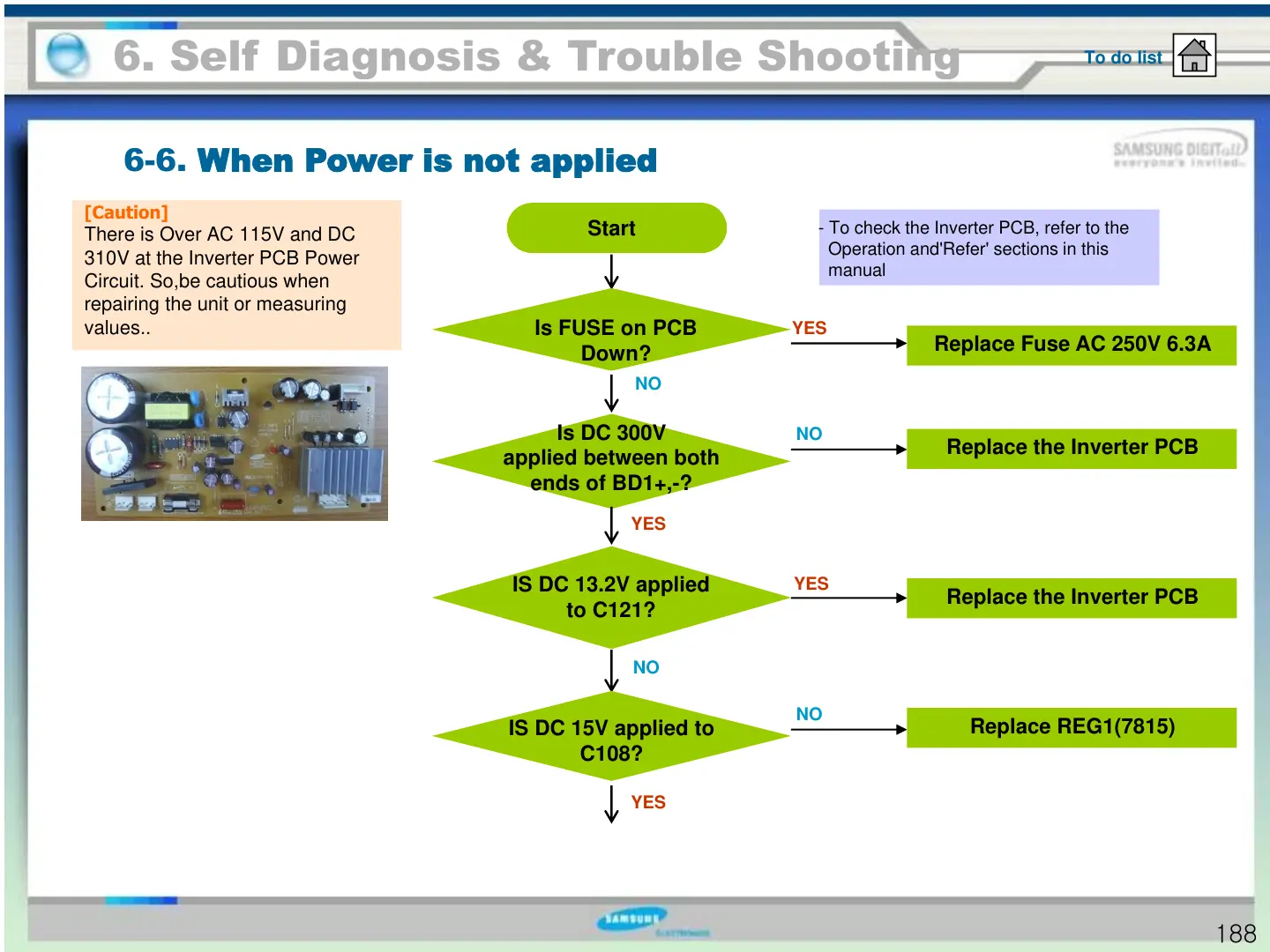

6-6. When Power is not applied
To do list
Start
Is FUSE on PCB
Down?
Replace Fuse AC 250V 6.3A
YES
IS DC 13.2V applied
to C121?
NO
YES
NO
IS DC 15V applied to
C108?
YES
NO
[Caution]
There is Over AC 115V and DC
310V at the Inverter PCB Power
Circuit. So,be cautious when
repairing the unit or measuring
values..
- To check the Inverter PCB, refer to the
Operation and'Refer' sections in this
manual
Is DC 300V
applied between both
ends of BD1+,-?
Replace the Inverter PCB
YES
NO
Replace the Inverter PCB
Replace REG1(7815)
188
To Next Page
