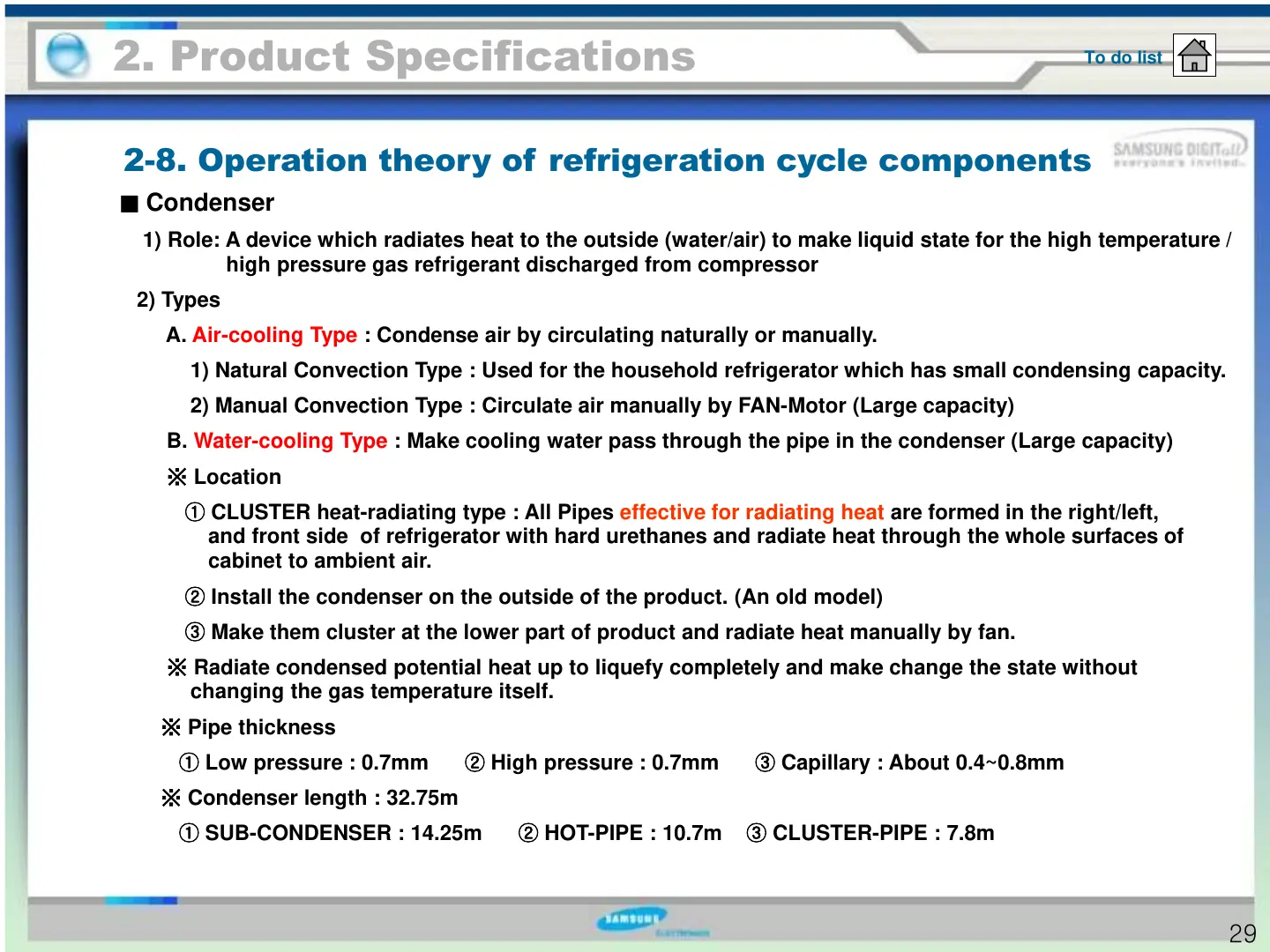

■ Condenser
1) Role: A device which radiates heat to the outside (water/air) to make liquid state for the high temperature /
high pressure gas refrigerant discharged from compressor
2) Types
A.
Air-cooling Type : Condense air by circulating naturally or manually.
1) Natural Convection Type : Used for the household refrigerator which has small condensing capacity.
2) Manual Convection Type : Circulate air manually by FAN-Motor (Large capacity)
B. Water-cooling Type : Make cooling water pass through the pipe in the condenser (Large capacity)
※ Location
① CLUSTER heat-radiating type : All Pipes effective for radiating heat are formed in the right/left,
and front side of refrigerator with hard urethanes and radiate heat through the whole surfaces of
cabinet to ambient air.
② Install the condenser on the outside of the product. (An old model)
③ Make them cluster at the lower part of product and radiate heat manually by fan.
※ Radiate condensed potential heat up to liquefy completely and make change the state without
changing the gas temperature itself.
※ Pipe thickness
① Low pressure : 0.7mm ② High pressure : 0.7mm ③ Capillary : About 0.4~0.8mm
※ Condenser length : 32.75m
① SUB-CONDENSER : 14.25m ② HOT-PIPE : 10.7m ③ CLUSTER-PIPE : 7.8m
2. Product Specifications
2-8. Operation theory of refrigeration cycle components
