RH(%) Output(mV) A/D (10bit) A/D (12bit) RH(%) Output(mV) A/D (10bit) A/D (12bit)
0 909 186 744 14 1359 278 1113
1 943 193 772 15 1390 284 1138
2 977 200 800 16 1420 291 1163
3 1010 207 827 17 1450 297 1188
4 1043 213 854 18 1480 303 1212
5 1076 220 881 19 1510 309 1237
6 1109 227 908 20 1540 315 1261
7 1141 233 935 21 1569 321 1285
8 1173 240 961 22 1598 327 1309
9 1205 247 987 23 1627 333 1333
10 1235 253 1011 24 1656 339 1356
11 1266 259 1037 25 1685 345 1380
12 1297 265 1062 26 1713 350 1403
13 1328 272 1088 27 1741 356 1426

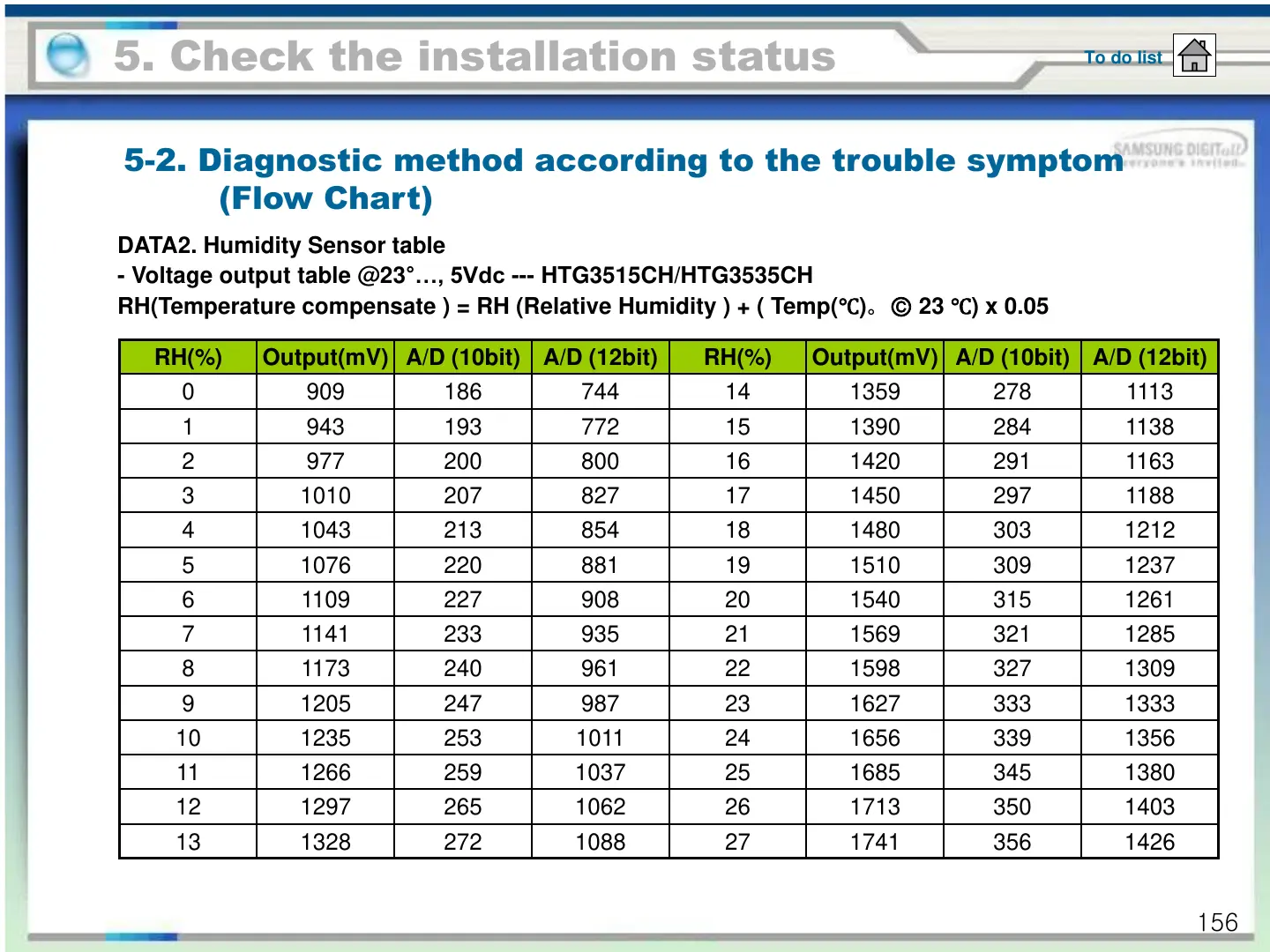

DATA2. Humidity Sensor table
- Voltage output table @23°…, 5Vdc --- HTG3515CH/HTG3535CH
RH(Temperature compensate ) = RH (Relative Humidity ) + ( Temp(
℃)。Ⓒ 23 ℃) x 0.05
To do list
5-2. Diagnostic method according to the trouble symptom
(Flow Chart)
5. Check the installation status
156
