6. Self Diagnosis & Trouble Shooting

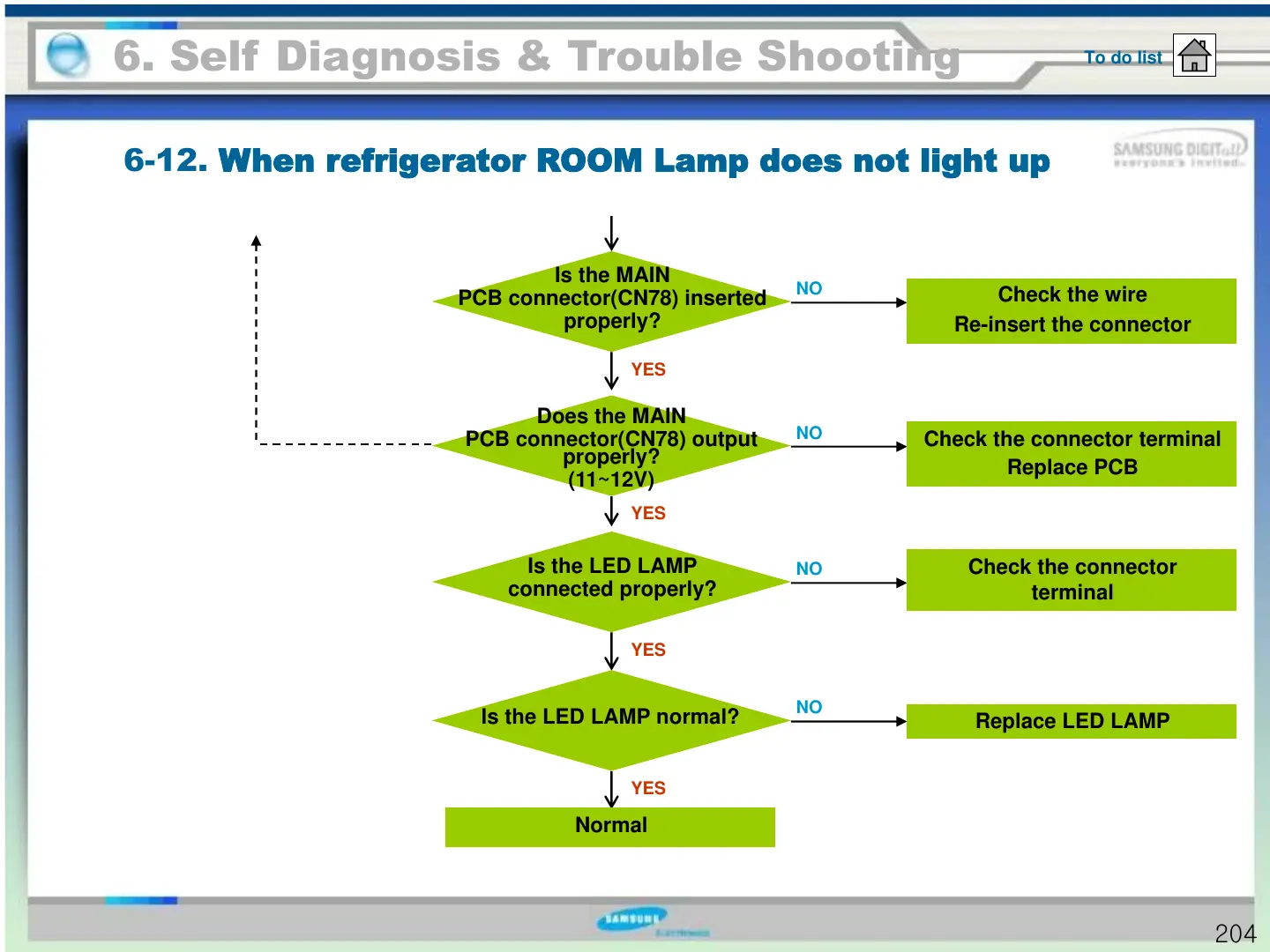

6-12. When refrigerator ROOM Lamp does not light up

To do list

Is the MAIN

PCB connector(CN78) inserted

properly?

YES

Does the MAIN

PCB connector(CN78) output

properly?

(11~12V)

YES

Is the LED LAMP

connected properly?

Check the connector

terminal

YES

Check the wire

Re-insert the connector

Check the connector terminal

Replace PCB

Is the LED LAMP normal?

Replace LED LAMP

YES

Normal

204

https://appliancetechmanuals.com
