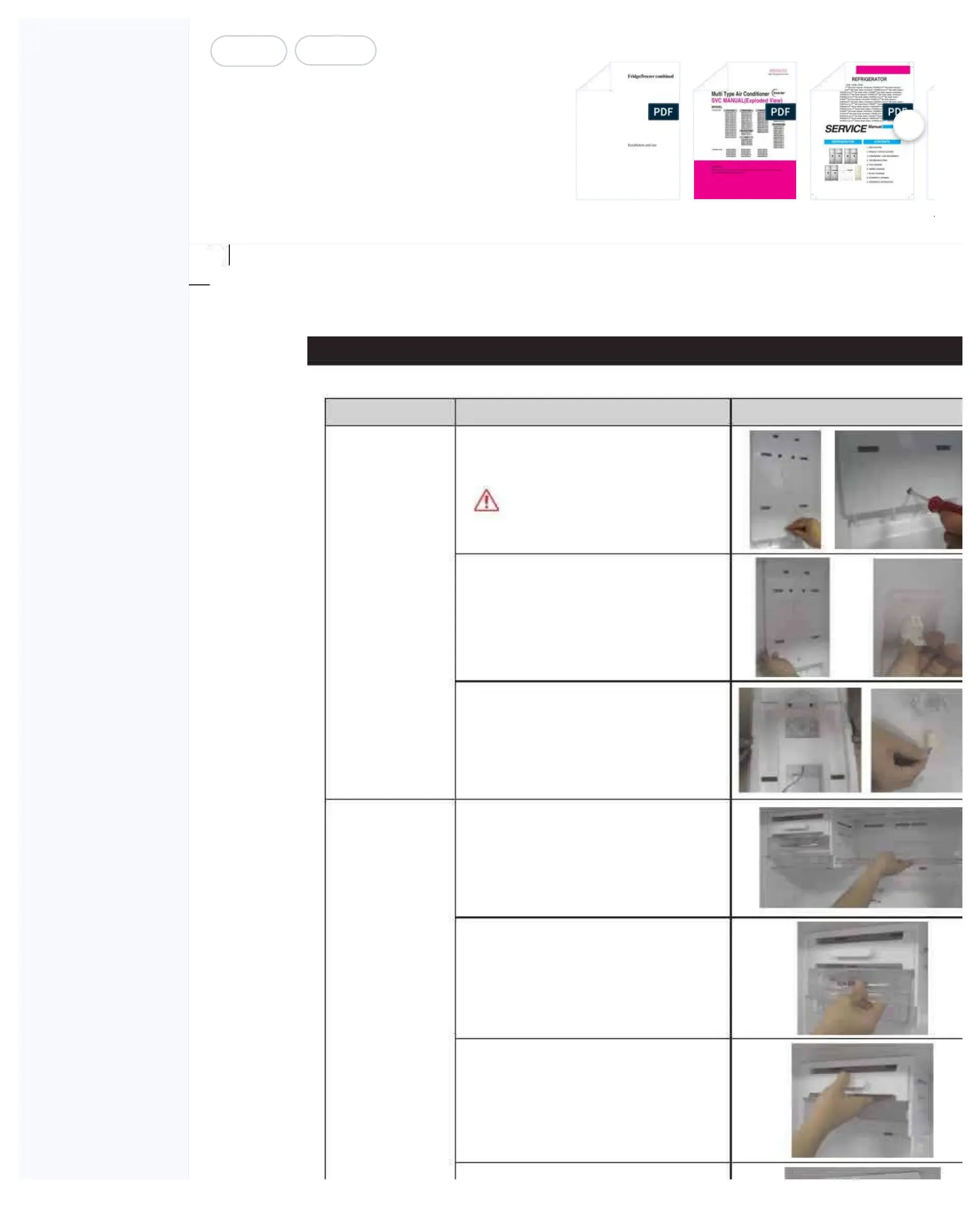

DISASSEMBLY & REASSEMBLY
P
A
R
T
N
A
M
E
H
o
w
t
o
d
o
D
e
s
c
r
i
p
t
i
v
e
P
i
c
t
u
r
e
Cover Multi
1. Remove the
Cap-Screws.
2. Remove 1 screw with phillips head driver.
CAUTION
When disassembling, m
ake sure the
unit turned off if you want to
assembly
fellowthe reverse order.
3. Hold the corner of
cover with hand. Pull it
outward.
5. Disconnect the wireharness.
6. Pull the Cover-Multi out forward.
7. Disassembly Ins-Multi from Cover-Multi.
8. Detach the tape from
Cover-Mult
i and
change sensor.
Twist Ice Maker
1. Lift it up and pull the shelf out to the front.
2. Take out the Tray-Ice-Cube by pulling it.
3. Take out the Tray-Ice-Maker by pulling it.
