DISASSEMBLY & REASSEMBLY
P
A
R
T
N
A
M
E
H
o
w
t
o
d
o
D
e
s
c
r
i
p
t
i
v
e
P
i
c
t
u
r
e

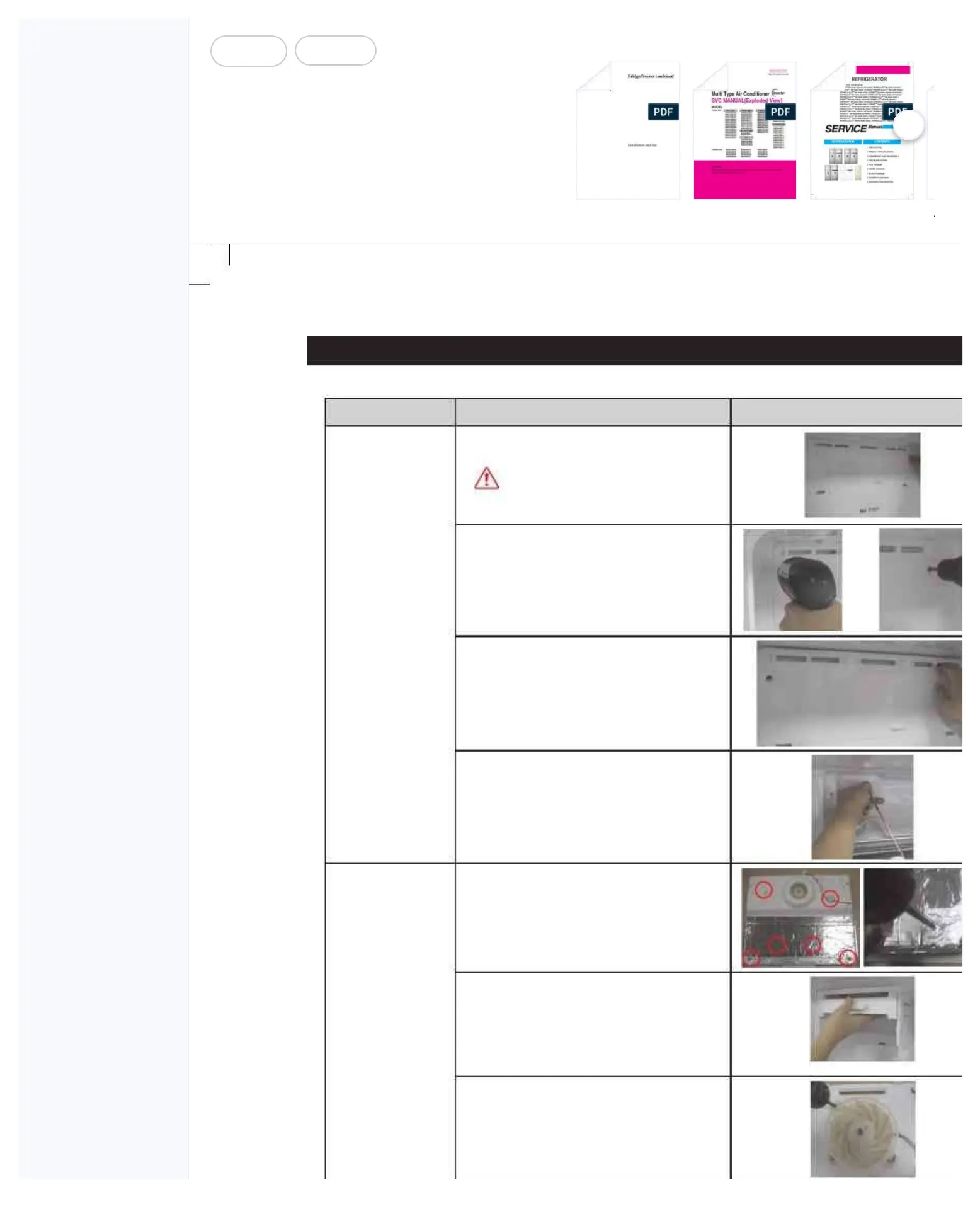

Evaporator Cover
in Freezer
1. Remove the
Cap-Screws
.
CAUTION
When disassembling, ma
ke sure the
unit turned off if you want
to assembly
fellow the reverse order.
2. Remove 2 screw with phillips head driver.
3. Hold the corner of
upper cover with the
hand and pull it downward and
outward.
4. Disconnect the wire harness at the
top-left
corner.
FAN
1. Remove 6 screws with phillips head
driver,Remove the washers.
2. Take off the Ins-Evap-Rear by pulling it.
3. Remove 3 screws with phillips head driver.
