Samsung Scala RV410 - Left View

26
Chapter 1.
Getting Started

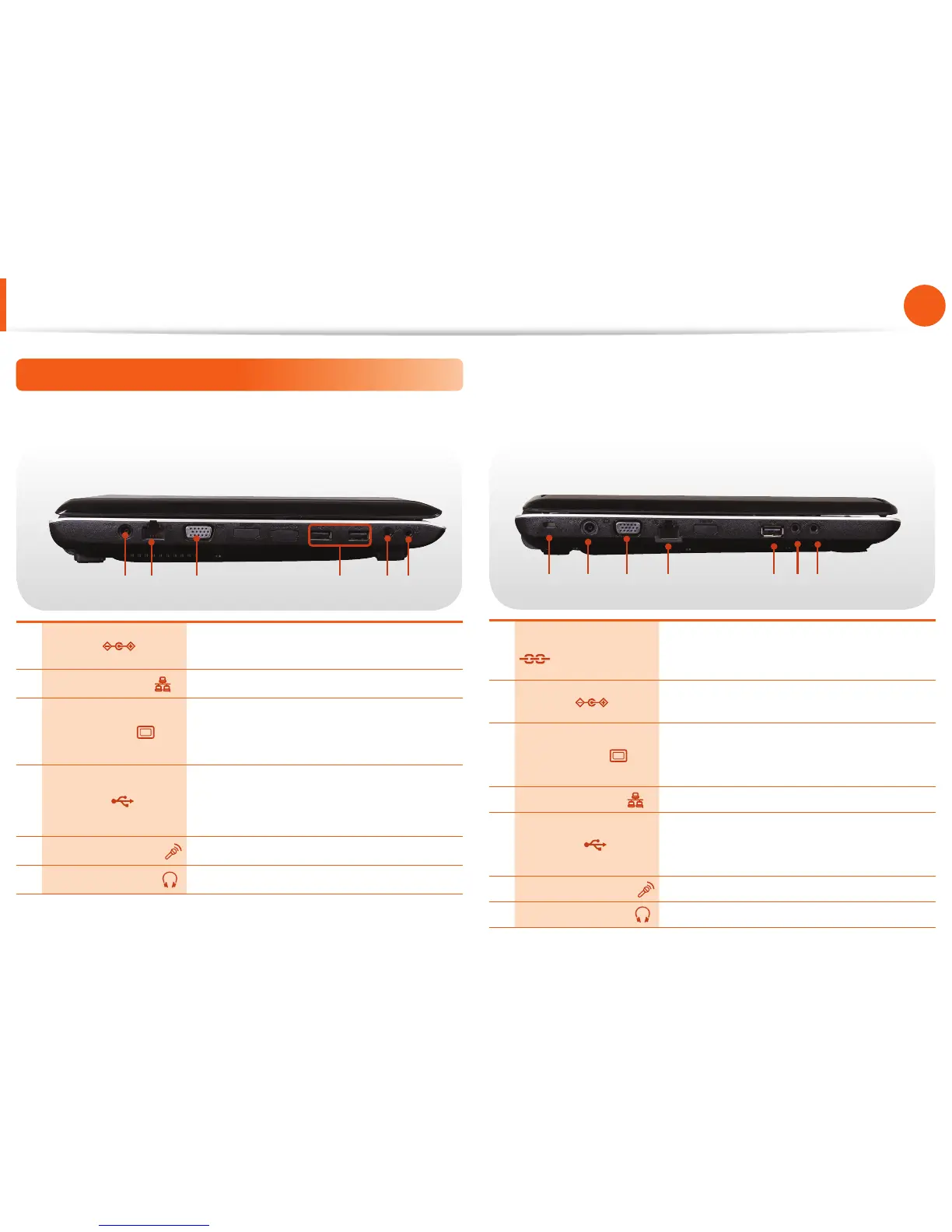

Overview
Left View
►
For 14 inch models
21 3 4
5 6
1 DC Jack
A jack to connect the AC adapter that
supplies power to the computer.
2 Wired LAN Port
Connect the Ethernet cable to this port.
3 Monitor Port
A port used to connect a monitor, TV
or projector supporting a 15pin D-SUB
interface.
4 USB Port
You can connect USB devices to the USB
port such as a keyboard/mouse, digital
camera, etc.
5 Microphone Jack
A jack used to connect the microphone.
6 Headphone Jack
A jack used to connect the headphones.
►
For 15.6 inch models
2 31 4 5 6
7
1
Security Lock Port
You can connect a Kensington lock to
the Security Lock Port to prevent the
computer from being stolen.
2 DC Jack
A jack to connect the AC adapter that
supplies power to the computer.
3 Monitor Port
A port used to connect a monitor, TV
or projector supporting a 15pin D-SUB
interface.
4 Wired LAN Port
Connect the Ethernet cable to this port.
5 USB Port
You can connect USB devices to the USB
port such as a keyboard/mouse, digital
camera, etc.
6 Microphone Jack
A jack used to connect the microphone.
7 Headphone Jack
A jack used to connect the headphones.
