Exploded View/Disassembly&Assembly Instructions
5-7
This Document can not be used without Samsung's authorization

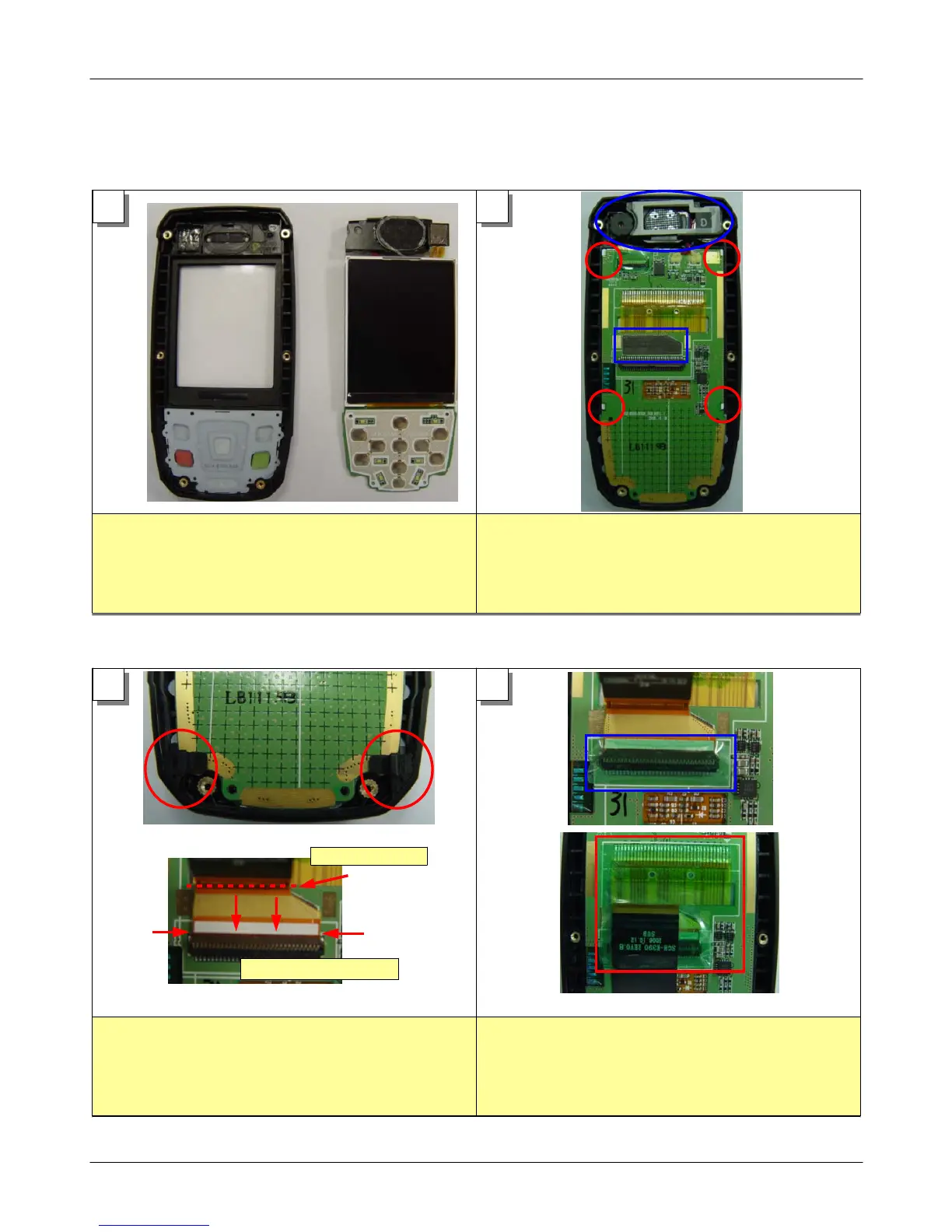

1. Prepare the slide upper and LCD module. 1. At first, attach LCD to main window.
2. Put the camera module and speaker
module(blue circle).
3. And put EMI tape on sub-PBA(blue).
1. Put the 2 kinds of rubber on rubber hole.
2. At first combine LCD connector to sub-PBA
according to the picture.
1. At first put insulation tape on connector.
2. And put insulation tape on connector.(Red)
(after folding FPCB)
1
2
3
Verify White silk line
※ Folding position
4
―
Assembly
To Next Page
