 CONNECTING WITH OTHER DEVICE

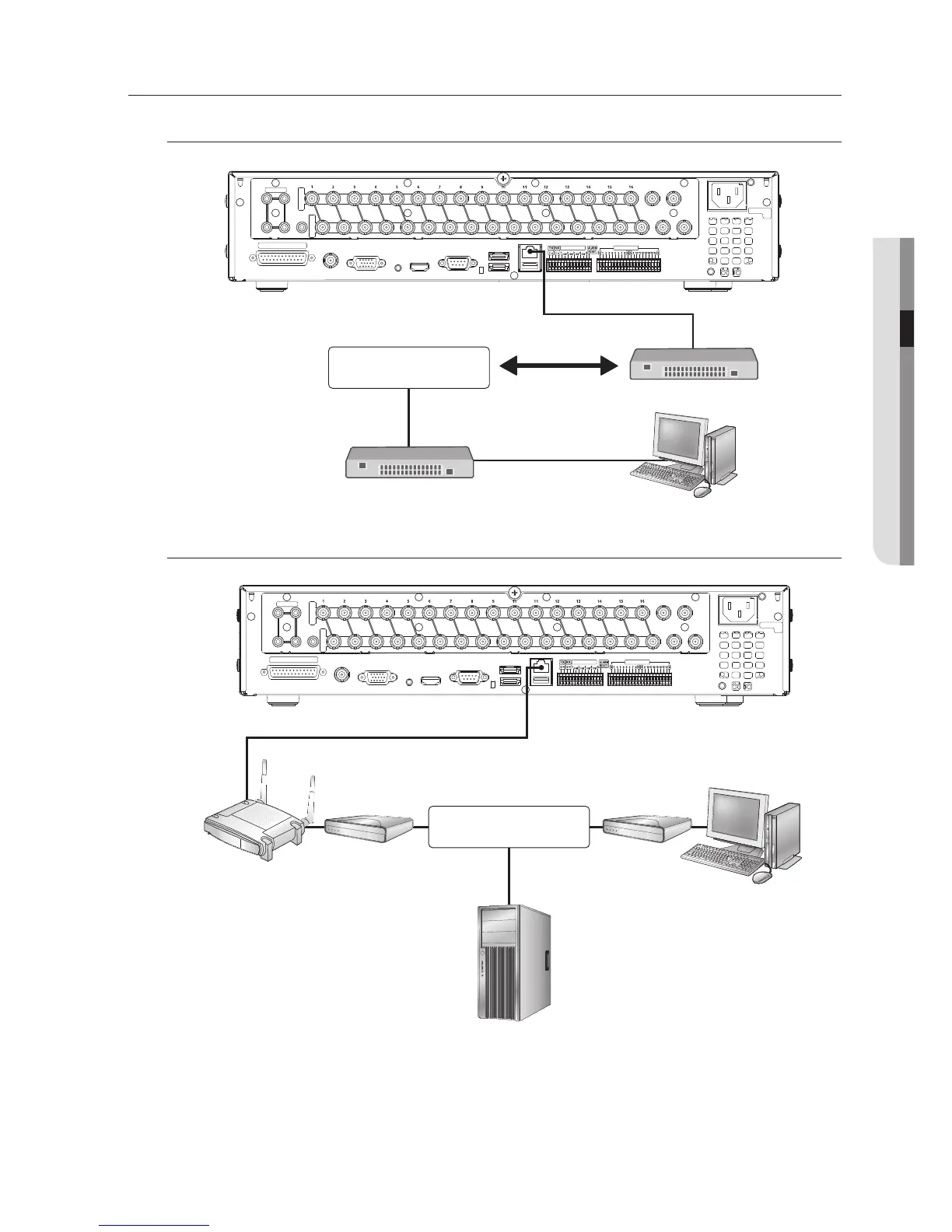

CONNECTING THE NETWORK
Connecting to Network through Ethernet (10/100/1000BaseT)
Connecting to the
Network using the router
CH 1
CH 3
CH 2
CH 4
AUDIO IN
AUDIO OUT
VIDEO
OUT
VGA
CONSOLE
AUDIO IN CH 5 ~ CH 16
SERIAL
NETWORK
USBeSATA1
eSATA2
HDMI
VIDEO IN
LOOP OUT
SPOT SPOT 2
SPOT 3 SPOT 4
ALARM INALARM OUT
IN
AC 100-240~
Broadband Router
xDSL or Cable
Modem
xDSL or Cable
Modem
External Remote PC
DDNS Server
(Data Center)
NETWORK
CH 1
CH 3
CH 2
CH 4
AUDIO IN
AUDIO OUT
VIDEO
OUT
VGA
CONSOLE
AUDIO IN CH 5 ~ CH 16
SERIAL
NETWORK
USBeSATA1
eSATA2
HDMI
VIDEO IN
LOOP OUT
SPOT SPOT 2
SPOT 3 SPOT 4
ALARM INALARM OUT
IN
AC 100-240~
Windows
Network Viewer
Back Bone
Hub/Switcher
Hub/Switcher
RJ-45 Ethernet Cable
(Direct Cable)
NETWORK
