English _91
●
WEB VIEWER

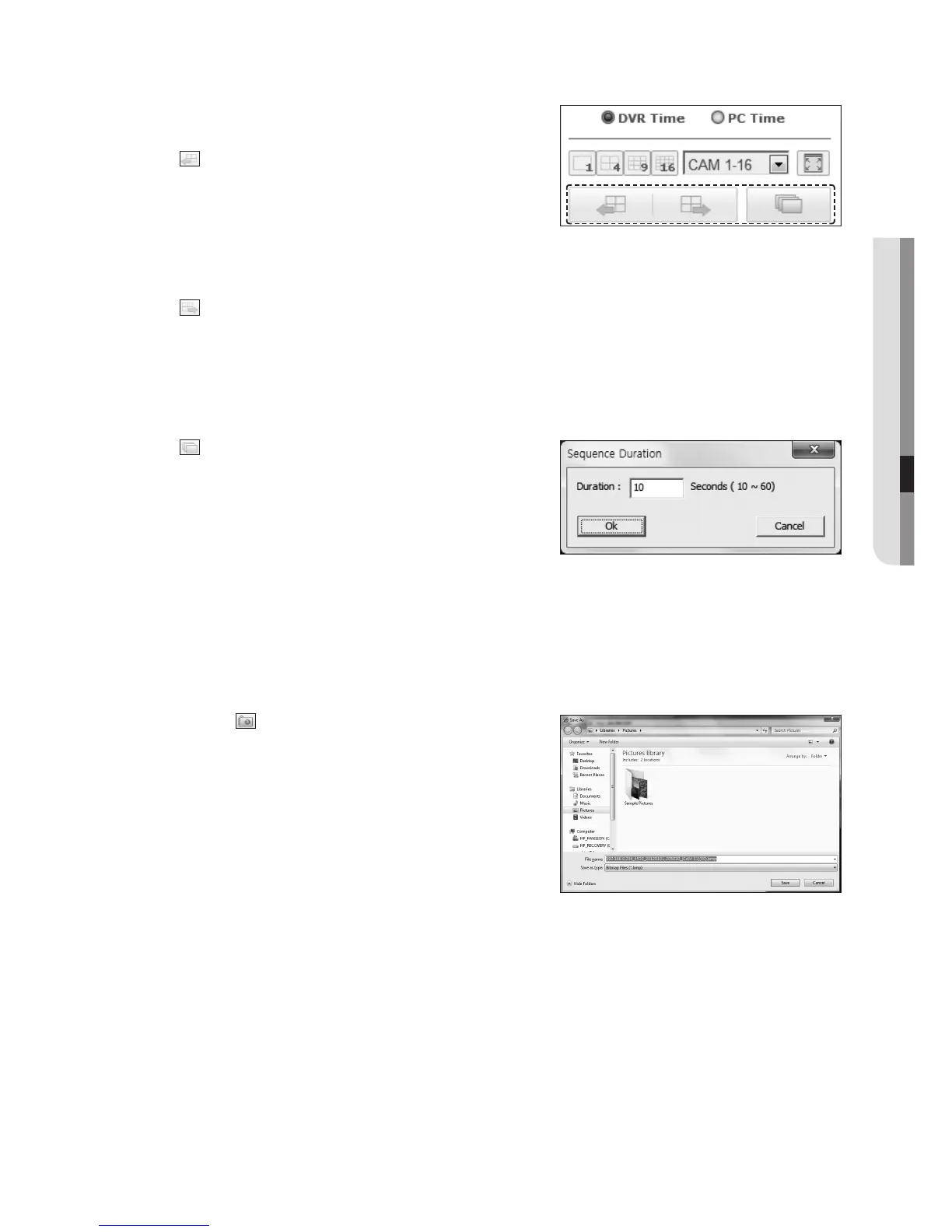

Changing the Live Screen Mode
 16-split mode does not support “SEQUENCE”, “PREVIOUS” and
“NEXT”.
• : When this button is clicked, the previous screen
appears.
- In SINGLE MODE, the channel numbers are switched in
reverse order.
- In QUAD MODE, the screens are changed like 1st 4 channels (1~4)  2nd 4 channels (13~16) 
3rd 4 channels (9~12)  4th 4 channels (5~8).
- In NINE MODE, the screens are changed from 9 channels (1~9) to 7 channels (10~16).
•
: When this button is clicked, the next screen appears.
- In SINGLE MODE, the channel numbers are sequentially switched from 1 to 16.
- In QUAD MODE, the screens are changed like 1st 4 channels (1~4)  2nd 4 channels (5~8) 
3rd 4 channels (9~12)  4th 4 channels (13~16).
- In NINE MODE, the screens are changed from 9 channels (1~9) to 7 channels (10~16).
 If 16-channel DVR is connected, clicking “NEXT” in QUAD MODE is to change the screen as shown in the picture.
• : When this button is clicked, screens are switched at a
preset interval.
- In SINGLE MODE, the channel numbers are sequentially
switched from 1 to 16.
- In QUAD MODE, the screens are changed like 1st 4
channels (1~4)  2nd 4 channels (5~8) 
3rd 4 channels (9~12)  4th 4 channels (13~16).
- In NINE MODE, the screens are changed from 9 channels (1~9) to 7 channels (10~16).
 Preset interval (10 seconds)
To capture a screen
1. Click < > button.
When a pop-up window appears, select the saving path
for captured image.
2. Select the path and name the file. And then click the
<Save> button.
3. Save current camera’s video image as .bmp, .jpg or .png
file.
J
 If the viewer is running without the administrator’s permission
in Windows Vista/7, you may not save the captured image as .bmp, .jpg or .png file.
