1.5 제어부 LED
▶ COM1 LED activates while connecting DISPLAY and CONTROL UNIT.
▶ COM2 LED activates while connecting CONTROL UNIT and PC.
▶ COM3 LED activates while connecting CONTROL UNIT and I/O 1 board.
▶ COM4 LED blinks for SYNC communication.
▶ OUT1 will be blinking in proportion with temperature control output MV.
▶ OUT2 will be blinking in proportion with Auxiliary control output MV.

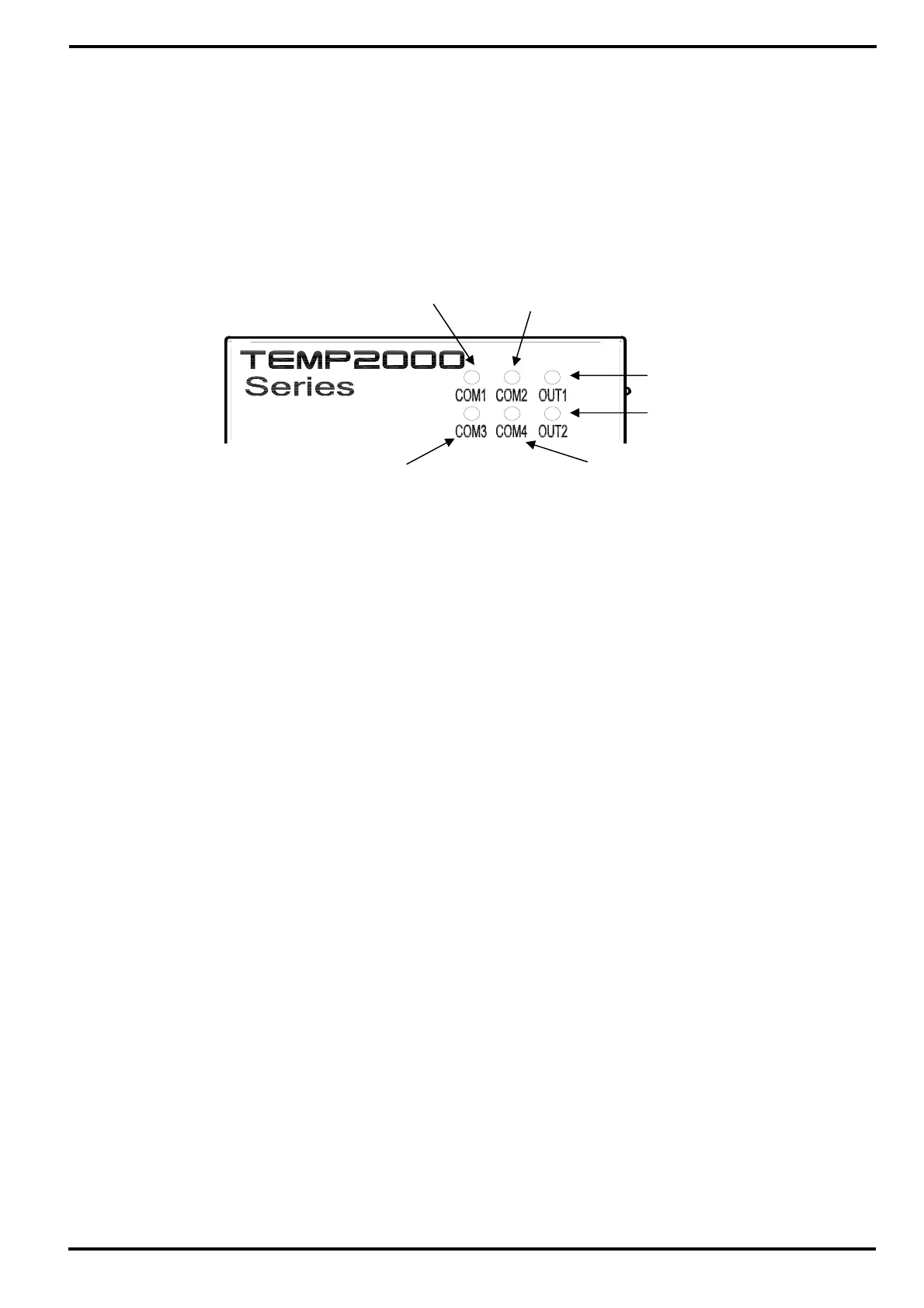

DISPLAY–C.U Comm. Status LED
C.U-I
/
O1 Comm. Status LED
C.U-PC Comm. Status LED
Tem
p
. Control Out
p
ut
Aux. Control Out
p
ut
SYNC Communication LED
