3.2 PIECE BIAS setting

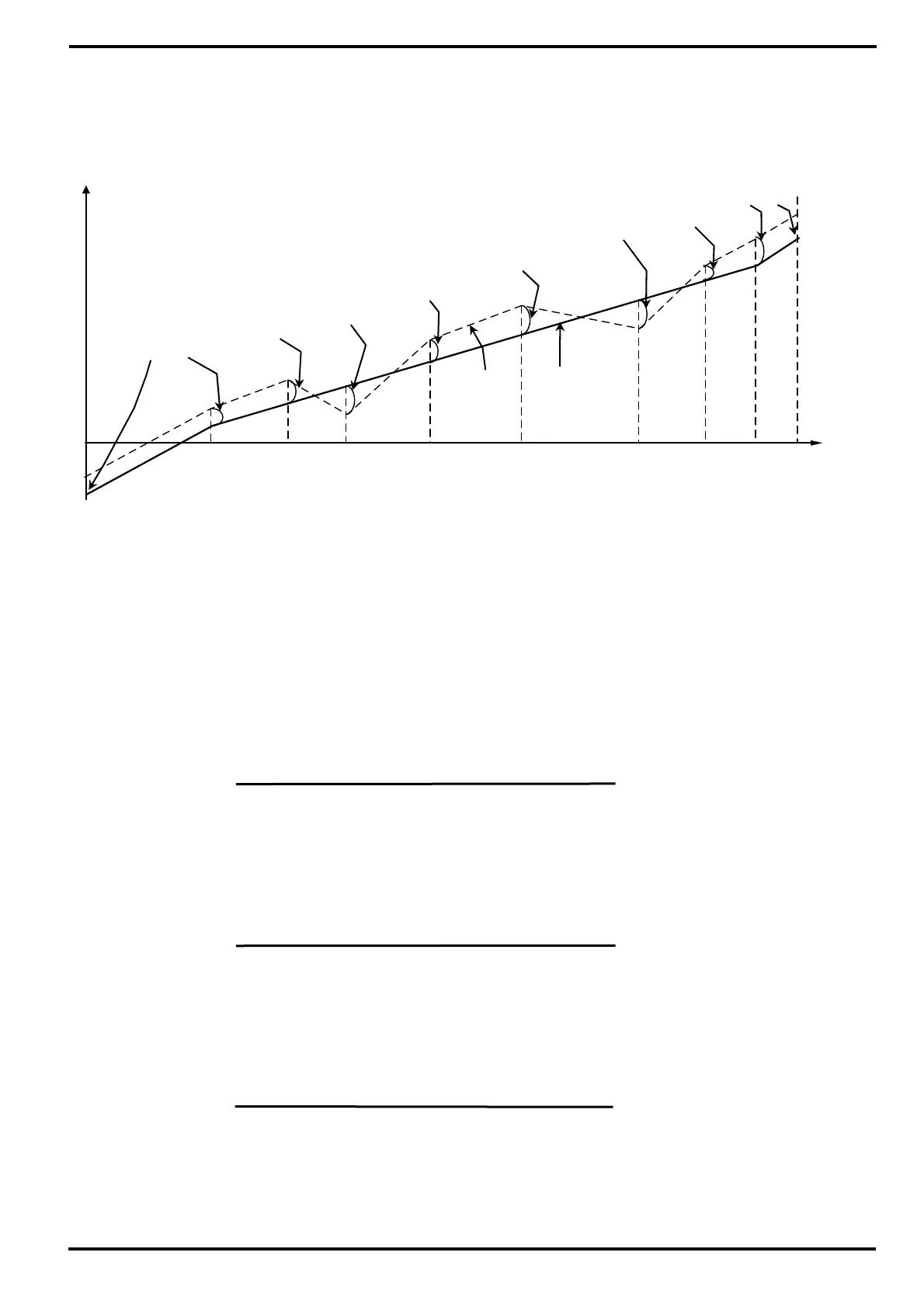

▶ It displays Section Input Compensation.
▶ Calculation method by Compensation Section
① Compensated Temperature between Low Limit ~ Input Comp. Point 1 Section
= Actual Sensor Temperature + Input Comp. 1 Value
② Compensated Temperature between Input Comp. 1 ~ Input Comp. 2 Section
= Actual Sensor Temperature + (Actual Sensor Temperature – Input Comp. Point 1) X
+ Input Comp. 1 Value
③ Compensated Temperature between Input Comp. 2 ~ Input Comp. 3 Section
= Actual Sensor Temperature + (Actual Sensor Temperature – Input Comp. Point 2) X
+ Input Comp. 2 Value
④ Compensated Temperature between Input Comp. 3 ~ Input Comp. 4 Section
= Actual Sensor Temperature + (Actual Sensor Temperature – Input Comp. Point 3) X
+ Input Comp. 3 Value
(Input Comp. 2 Value – Input Comp. 1 Value)
(Input Comp. Point 2 – Input Comp. Point 1)
(Input Comp. 3 Value – Input Comp. 2 Value)
(Input Comp. Point 4 – Input Comp. Point 3)
(Input Comp. Point 3 – Input Comp. Point 2)
(Input Comp. 4 Value – Input Comp. 3 Value)
Input Comp. 8
Input Comp.
2
Input Comp.
Point 1
Input Comp. 1
Actual Sensor
Tem
p
erature
Compensated
Temperature
INRH
INRL
Input Comp.
Point 2
Input Comp. 3
Input Comp.
4
Input Comp.
5
Input Comp.
6
Input Comp.
7
Input Comp.
Point 3
Input Comp.
Point 4
Input Comp.
Point 5
Input Comp.
Point 6
Input Comp.
Point 7
Input Comp.
Point 8
