5. DIGITAL OUTPUT (DO) CONFIGURATION
5.1 DO parameters & RELAY number setting
▶ Set corresponding Relay No. to output when operation status is output to I/O Relay Board.
▶ Relay No. 13 ~ 32 can be used when I/O2 BOARD option is added.
5.1.1 Inner Signal/Time Signal Relay Setup Screen
▶ When setup Relay No. is duplicated, then Relay operates at any signal output from setup signals (“OR”
Condition).
① Set Inner Signal Relay. (IS1∼IS8)
② Set Time Signal Relay. (TS1∼TS8)
③ Move from current screen to next screen.
Table 5-1 Inner Signal/Time Signal Relay Setup Screen Parameter
Parameter Range Unit Default
Inner Signal1~ Inner Signal8 0~32 ABS 0
Time Signal1~ Time Signal8 Relay 0~32 ABS 0

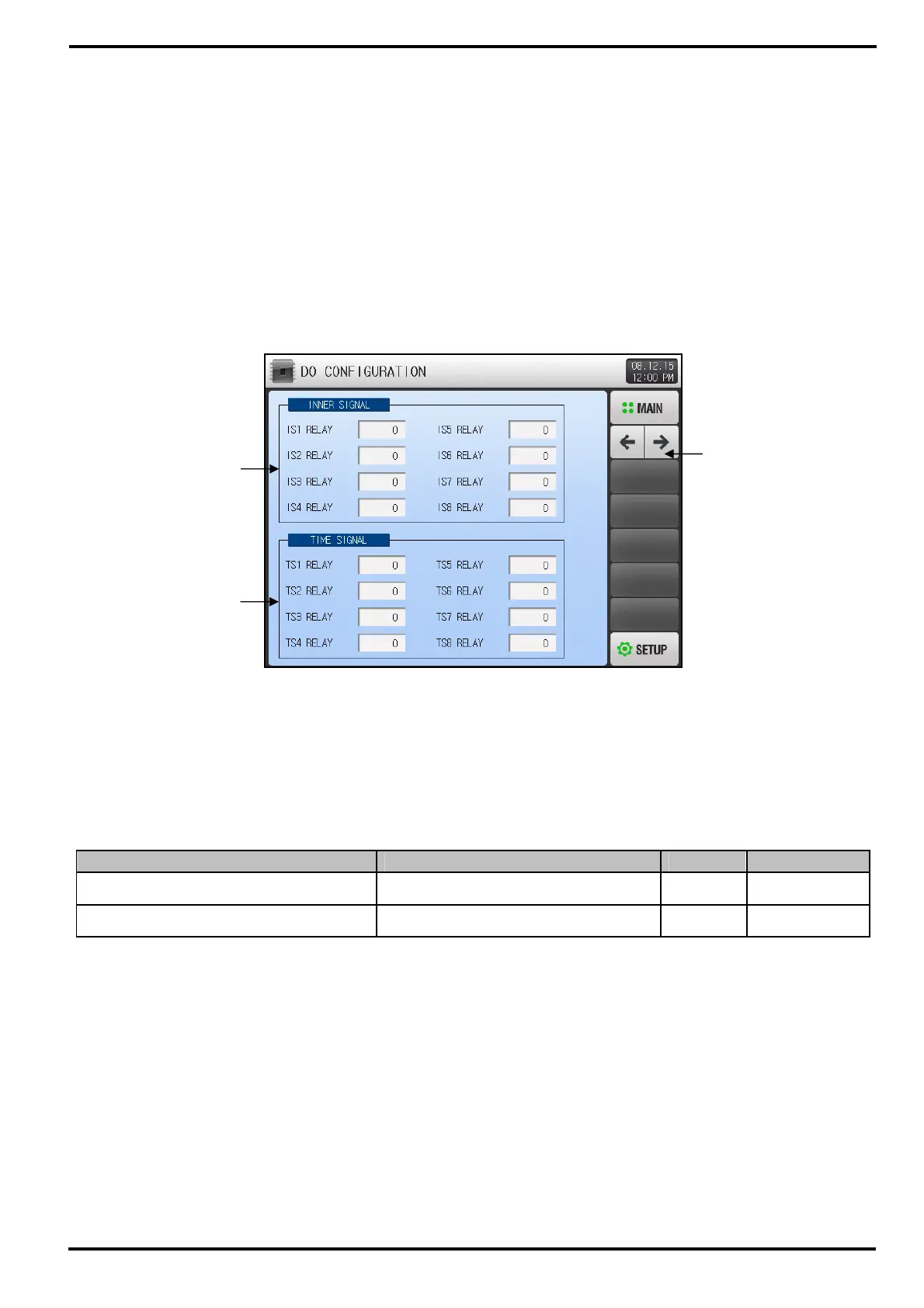

[Figure 5-1] Inner Signal/Time Signal Relay Setup Screen
①
③
②
To Next Page
