8. ON/OFF 시그널
▶ This screen can set the range of ON/OFF Signal, High & Low Limit Deviation.
▶ 6 ON / OFF signals can be set.
▶ [5.1.3 Relay Setup Screen-3] can set Relay Number and Delay Time.
8.1 ON/OFF Signal Setting
① Set CH1 Low Limit SP for ON/OFF Signal Operation.
② Set CH1 Middle SP for ON/OFF Signal Operation.
③ Set CH1 High Limit SP for ON/OFF Signal Operation.
④ Set Operating Point at High Limit Section.
⑤ Set Operating Point at Low Limit Section.
Table 8-1 CH1 ON/OFF Signal Setup Parameter
Parameter Range Unit Default
T#n LOW SP EU EU(0.0%)
T#n MIDDLE SP EU EU(0.0%)
T#n HIGH SP
EU(0.0~100.0%)
Range Low ≤ T#n LOW SP
<T#n MIDDLE SP < T#n HIGH SP ≤ Range High
EU EU(0.0%)
T#n HIGH 편차 EUS(0.0~10.0%) EUS EUS(0.0%)
T#n LOW 편차 EUS(0.0~10.0%) EUS EUS(0.0%)
* #n : 1 ~ 6
① ② ③ ④ ⑤

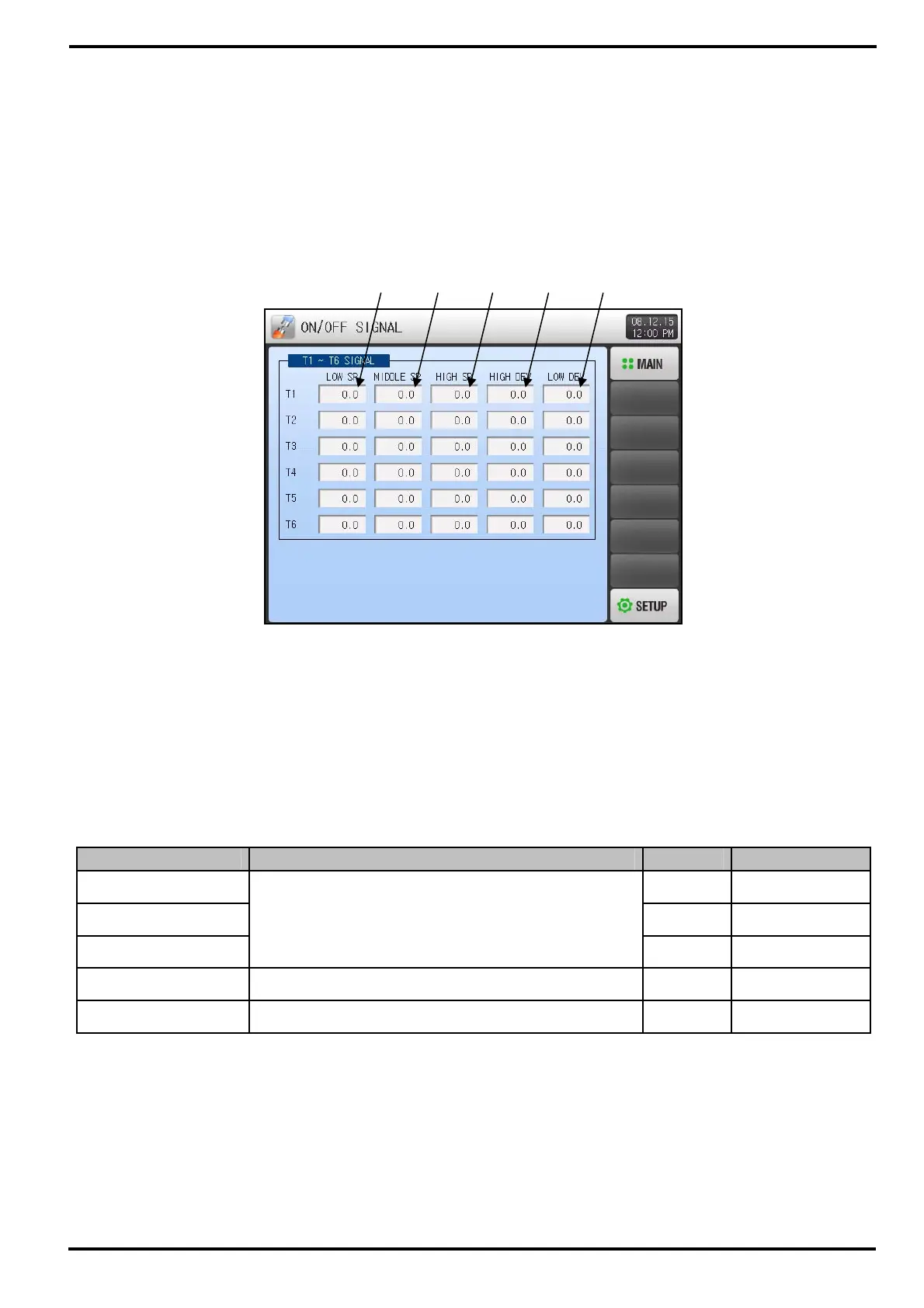

[Figure 8-1] ON/OFF Signal Setup Screen
