▶ Following screen is displayed when Alarm Type is set to AH.F & DO.FS at [Figure 9-3 Alarm Signal Setup
Screen-2].
① Set Alarm Set Point.
② Set hysteresis applied for Alarm Operation.
③ Alarm Signal sends the actual alarm after preset Delay Time when the alarm condition is satisfied.
④ Set High Deviation Limit for Deviation Alarm.
⑤ Set Low Deviation Limit for Deviation Alarm.
Table 9-2 Alarm Signal Setup Screen-2 Parameter
Parameter Range Unit Default
Alarm #n Type
OFF, AH.F, AL.F, DH.F
DL.F, DH.R, DL.R
DO.F, DI.F, AH.R
AL.R, AH.FS, AL.FS
DH.FS, DL.FS, DH.RS
DL.RS, DO.FS, DI.FS
AH.RS, AL.RS
ABS OFF
Alarm #n POINT EU(-5.0~105.0%) EU
EU(100.0%)
(Alarm #n Type are not
DO.F, DI.F, DO.FS, DI.FS)
Alarm #n High POINT EUS
Alarm #n Low POINT
EUS(-100.0~100.0%)
EUS
EUS(0.0%)
(Alarm #n Type = DO.F,
DI.F, DO.FS, DI.FS)
Alarm #n Hysteresis EUS(0.0~100.0%) EUS EUS(0.5%)
Alarm #n Delay Time 0.00~99.59 (MIN.SEC) ABS 00.00
* #n : 1 ~ 4

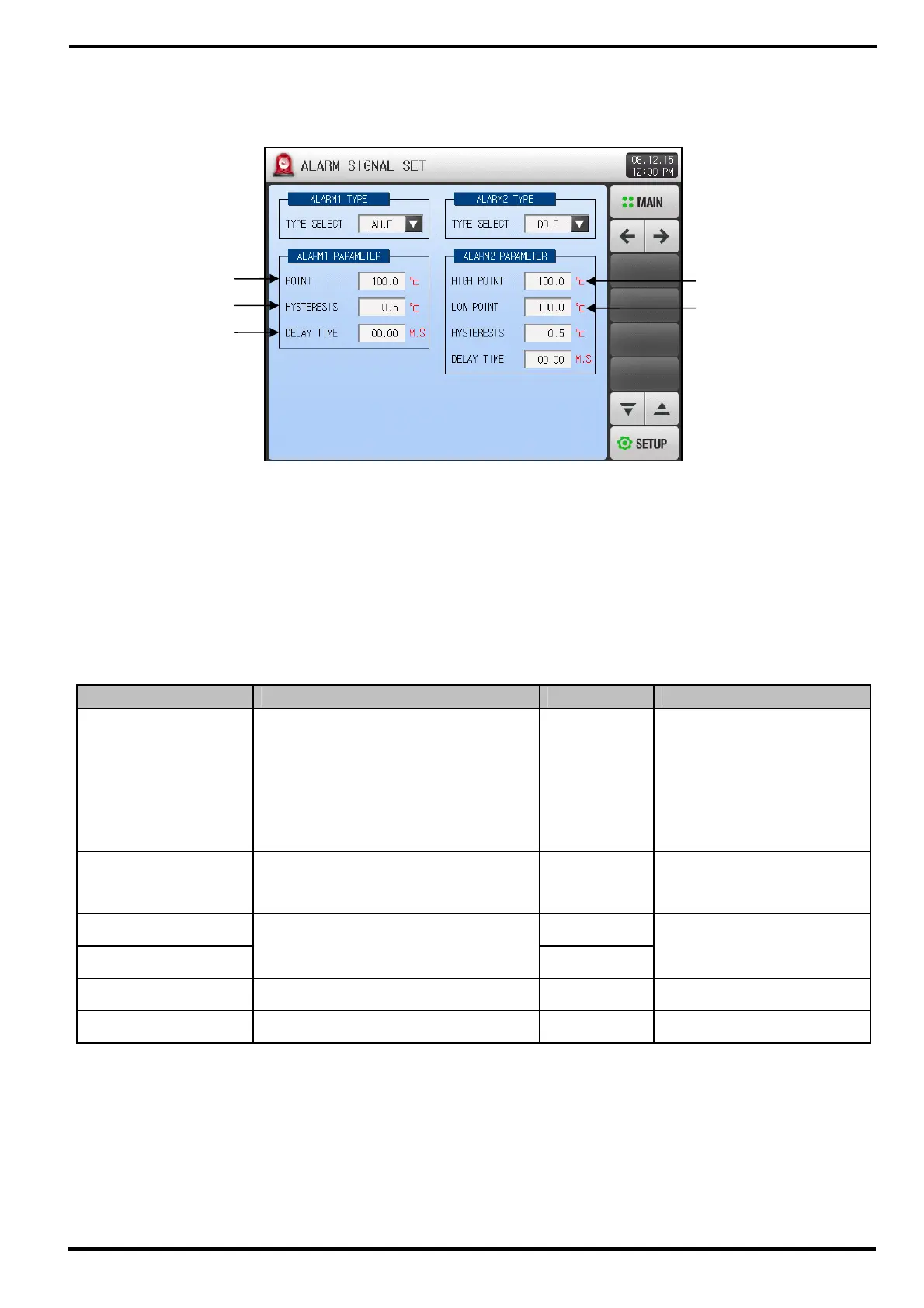

[Figure 9-4] Alarm Signal Setup Screen-2/3
①
②
③
④
⑤
