12 S&C Instruction Sheet 766-557

Serial Connection—Rev. 3.4.x and Earlier

Step 1

IntelliLink Setup Software is installed by default in the C:\Program Files\

S&C Electric\IntelliLink folder. Double click the application ilink.exe to launch the

IntelliLink software. The location of this le is shown in Figure 8.

Connect with

IntelliLink® Setup

Software

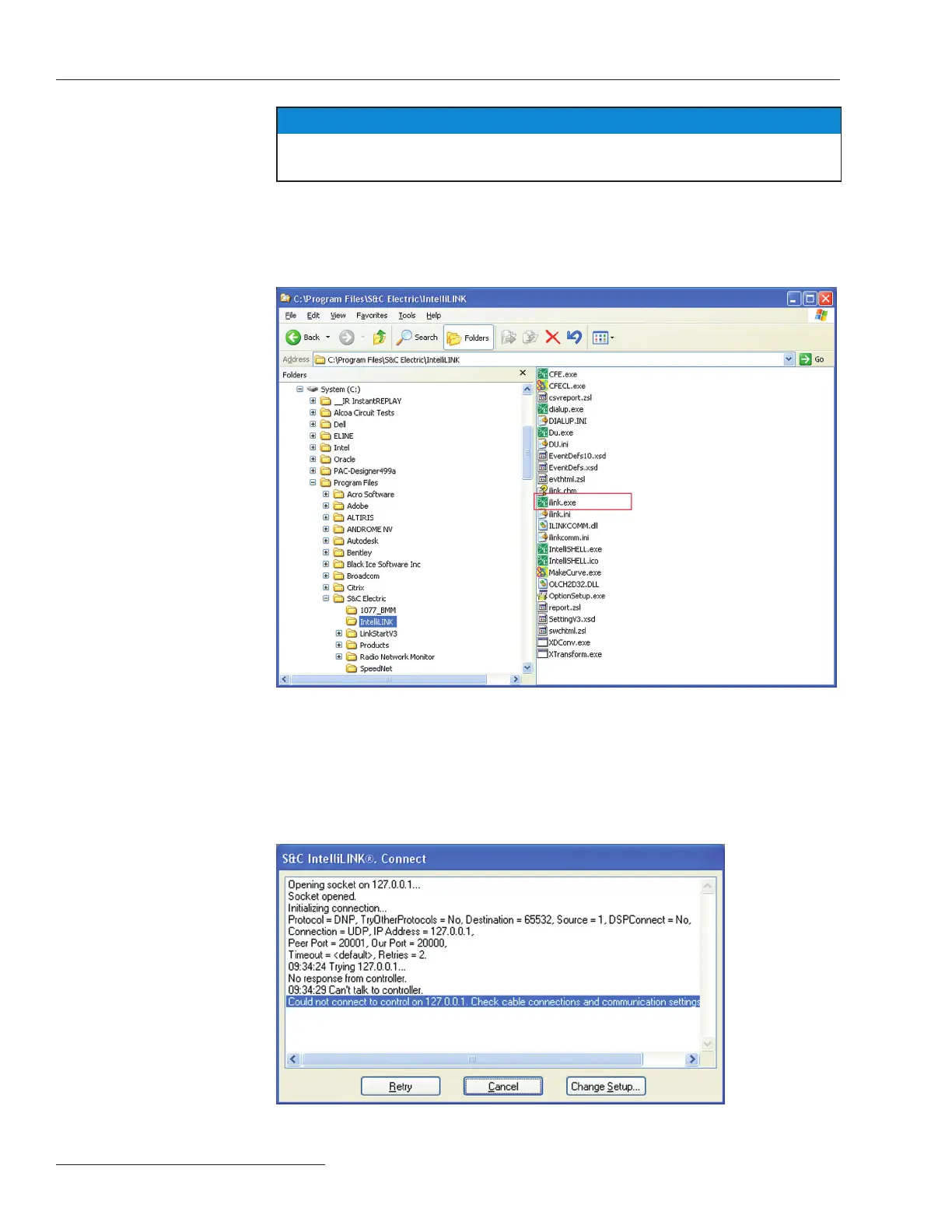

Figure 8. Location of the IntelliLink Setup Software application file.

Step 2

When the IntelliLink software is launched, it is congured by default to connect to the

control over a wireless link. It automatically attempts to establish this connection. Wait

for the connection attempt to time-out. Messages in the Connect dialog window should

be approximately the same as Figure 9.

Figure 9. IntelliLink Connect dialog window.

NOTICE

The following procedure is used with IntelliRupter Installer versions 3.4.x and earlier. For

newer installer revisions see the next section, that starts on page 17.
