S&C Instruction Sheet 766-557 21
Serial Connection—Rev. 3.5.x and Later
After control rmware has been successfully loaded, it is recommended that you verify
that the control is operating correctly, by using IntelliLink.
Step 1
After closing the update window the IntelliLink software will prompt you to log in. Enter
the appropriate User Name and Password.
Step 2
On the IntelliRupter Operation screen, check the Control Status in the upper right hand
corner. Verify that the control is in the Okay state. If there are any alarms, warnings, or
errors—please contact S&C Electric Company.
Step 3
Check the Setup > General > Software Versions screen, shown in Figure 25, to see that
the correct rmware has been installed.
Verification of
Correct Operation

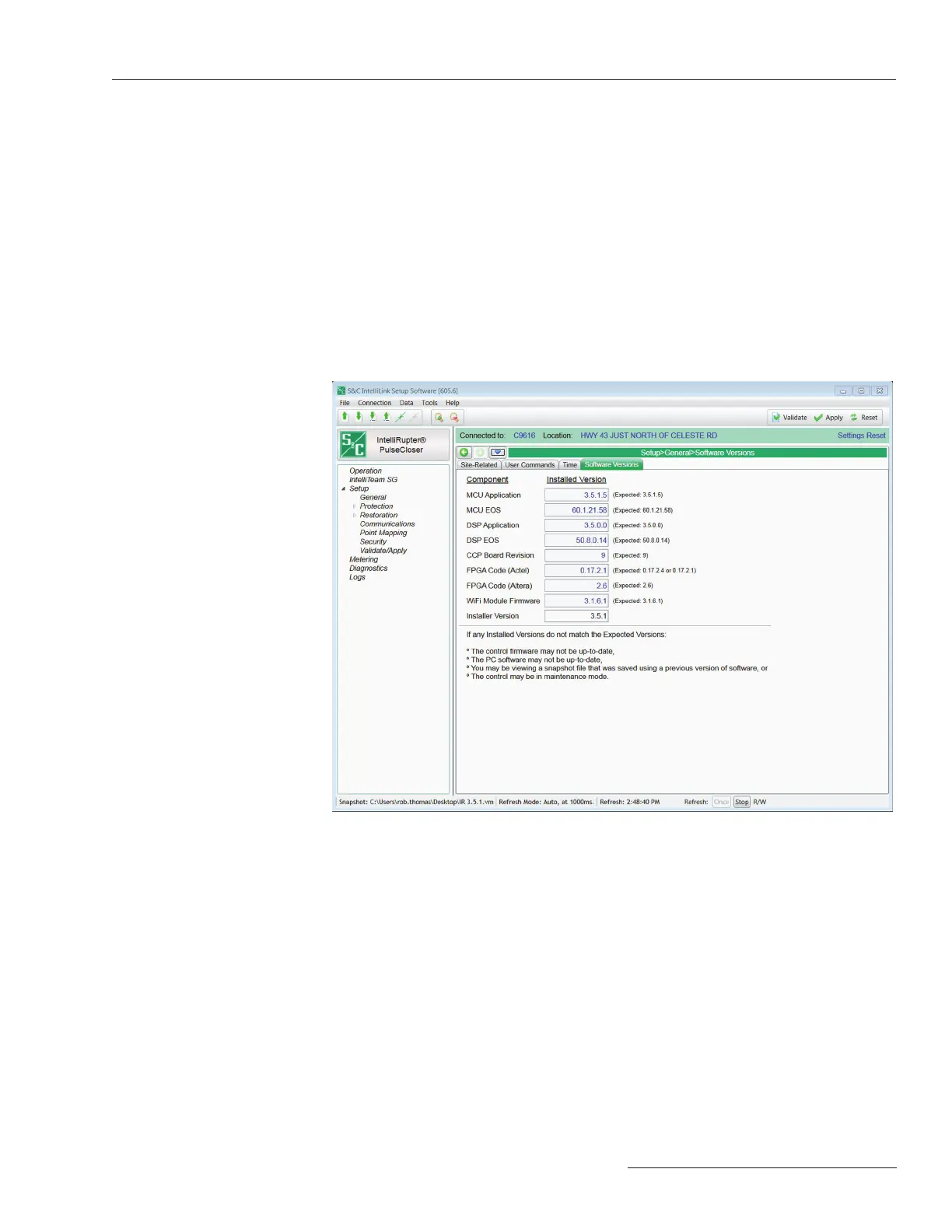

Figure 25. The IntelliRupter Setup > General > Software Versions screen.
After you complete verication, change the communication parameters of the Intel-
liLink software back to the default settings.
Step 4
Locate the Tools menu option at the top of the screen. The communication parameters
are on the Tools > Options menu. See Figure 18 on page 18. Change the Connection
Type to UDP/IP and then click the Save & Exit button. Close the IntelliLink software.
Step 5
Disconnect the serial cable from the jumper, and reconnect the jumper to the Wi-Fi Serial
to Comm connector on the Docking Station.
The Control and Communication Modules should now correctly respond to a LinkStart
connection attempt.
