S&C Instruction Sheet 766-557 7
Establishing Wi-Fi Connection
The Wi-Fi transceiver provides secure wireless point-to-point communication to a wireless-
equipped personal computer operating under IEEE 802.11b standard. Transmission range
is typically 150 feet or less.
Click the IntelliLink software or LinkStart icon or select Program Start > S&C Electric
> LinkStart V3 on the personal computer. The LinkStart connection screen will appear.
See Figure 2.

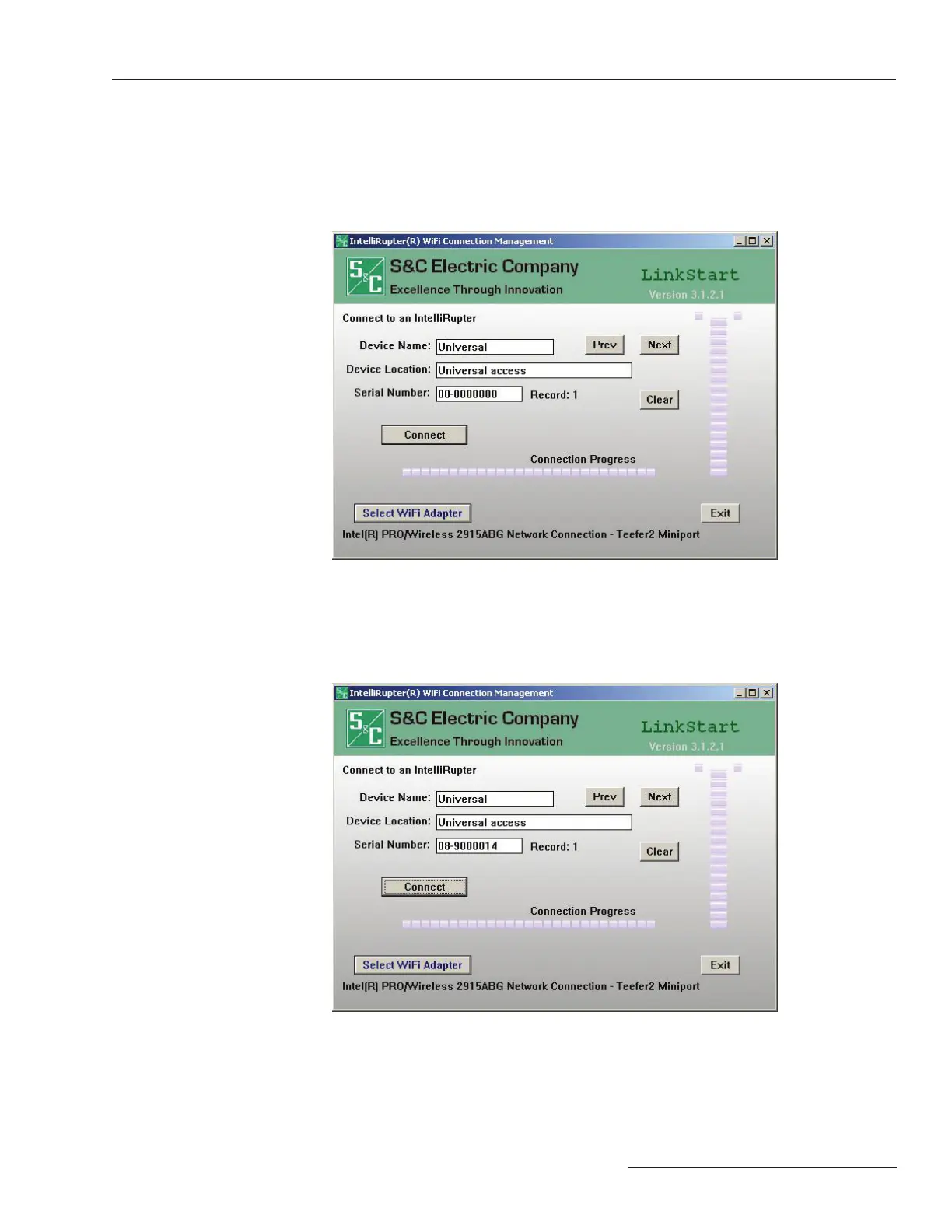

Figure 2. LinkStart connection screen.
If the base memory module is unplugged: The default universal access serial number
(00-0000000) will be used. If the base memory module is plugged in: Type in its serial
number (in this example 08-9000014).
Click Connect. The Wi-Fi connection process will begin. See Figure 3.
Figure 3. Wi-Fi connection in progress.
