24
“Output
yoltage
Load
impedance
¥.
.

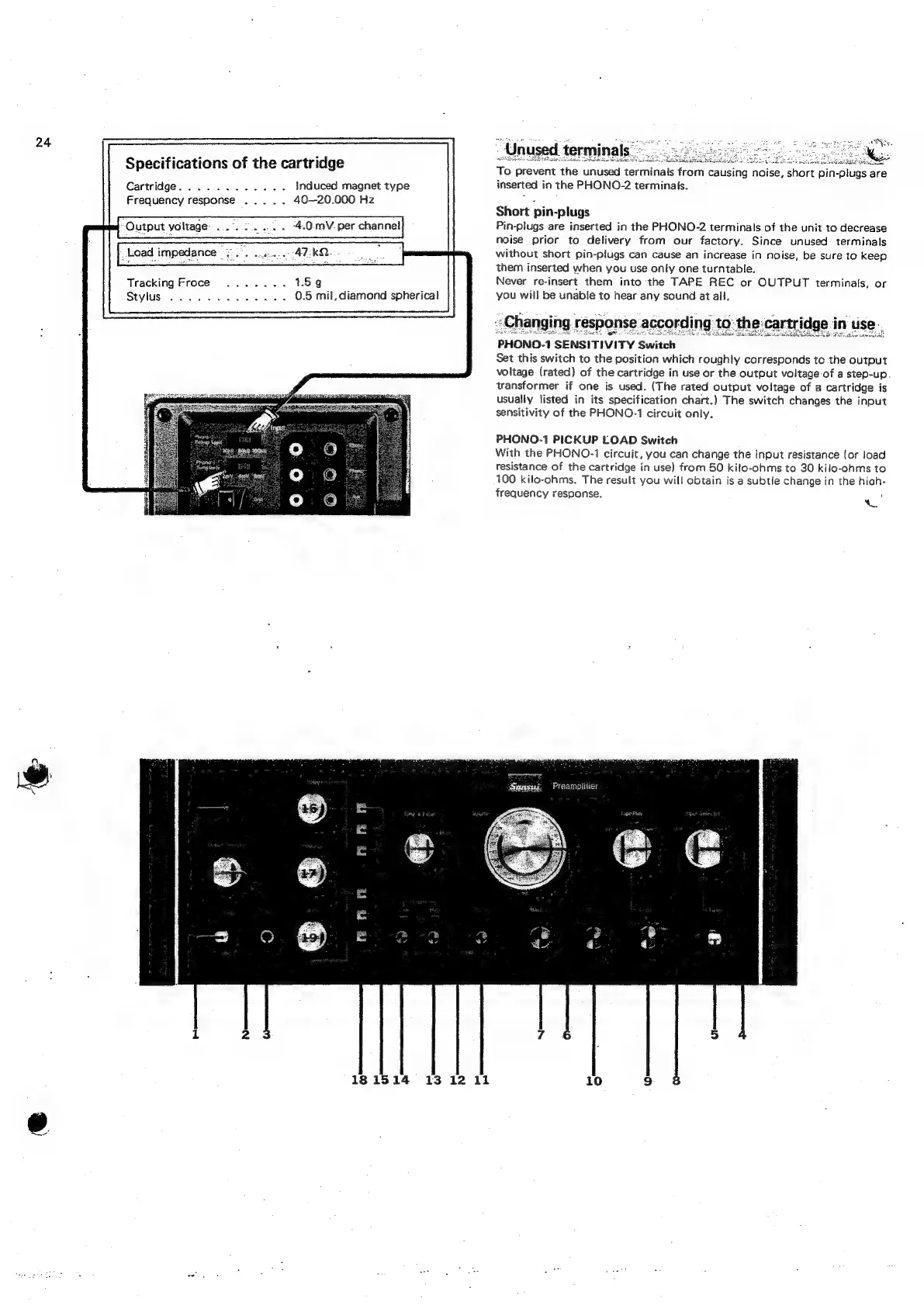

Specifications
of
the
cartridge
Cartridge
Induced
magnet
type
Frequency
response
40—20.000
Hz
.
4.0.mV.
per
channel
ee
re
Tracking
Froce
0.5
mil,
diamond
spherical
inserted
in
the
PHONO-2
terminals.
Short
pin-plugs
Pin-plugs
are
inserted
in
the
PHONO-2
terminals
of
the
unit
to
decrease
noise
prior
to
delivery
from
our
factory.
Since
unused
terminals
without
short
pin-plugs
can
cause
an
increase
in
noise,
be
sure
to
keep
them
inserted
when
you
use
only
one
turntable.
Never
re-insert
them
into
the
TAPE
REC
or
OUTPUT
terminals,
or
you
will
be
unable
to
hear
any
sound
at
all.
-
Changing
response
according
to
the:cartrid
PHONO-1
SENSITIVITY
Switch
Set
this
switch
to
the
position
which
roughly
corresponds
to
the
output
voltage
(rated)
of
the
cartridge
in
use
or
the
output
voltage-of
a
step-up,
transformer
if
one
is
used.
(The
rated
output
voltage
of
a
cartridge
is
usually
listed
in
its
specification
chart.)
The
switch
changes
the
input
sensitivity
of
the
PHONO-1
circuit
only.
ein
us:
PHONO-1
PICKUP
LOAD
Switch
With
the
PHONO-1
circuit,
you
can
change
the
input
resistance
lor
load
resistance
of
the
cartridge
in
use)
from
50
kilo-ohms
to
30
kilo-ohms
to
100
kilo-ohms.
The
result
you
will
obtain
is
a
subtle
change
in
the
hiah-
frequency
response.
s
G
y
resp!
<
Sangué
Preamplitier
