14
If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna
system. If you are using a Cable TV service, see page 15 for Cable TV connections.

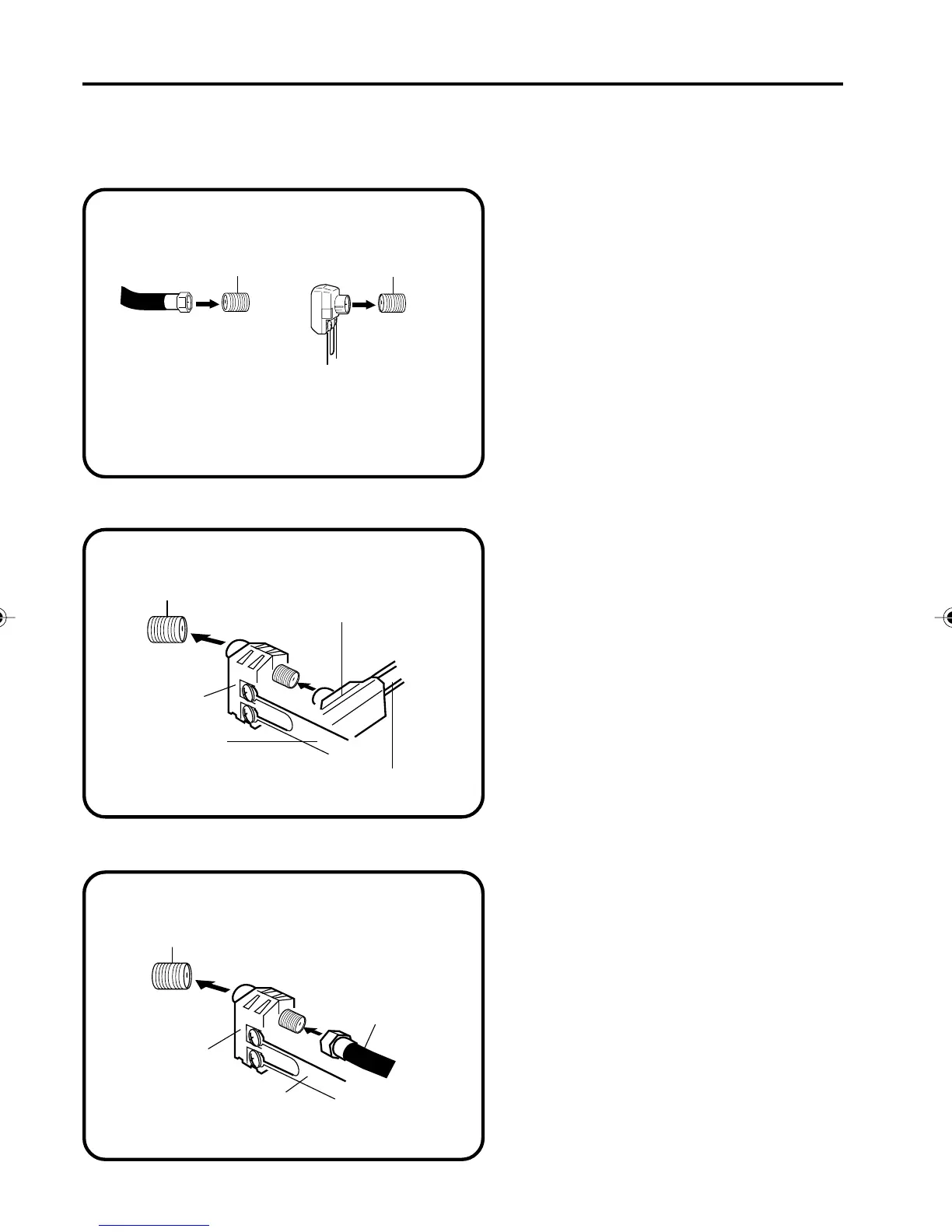

Combination VHF/UHF Antenna (Separate VHF and UHF 300 ohm twin-lead wires)
Combination VHF/UHF Antenna (Single 75 ohm cable or 300 ohm twin-lead wire)
Antenna connections
Separate VHF/UHF Antennas (75 ohm VHF cable and 300 ohm UHF twin-lead wires)
Connect the 75 ohm cable from the combination
VHF/UHF antenna to the antenna jack.
If your combination VHF/UHF antenna has a 300
ohm twin-lead wire, the use of the 300-75 ohm
matching transformer may be necessary.
Connect the UHF 300 ohm twin-lead wire to the
Combiner (not supplied). Connect the VHF 300
ohm twin-lead wire to the 300-75 ohm Matching
Transformer. Attach the Transformer to the Com-
biner, then attach the Combiner to the Antenna
Jack.
Connect the VHF 75 ohm cable and UHF 300 ohm
twin-lead wire to the Combiner (not supplied).
Attach the Combiner to the Antenna Jack.
75 ohms
coaxial
cable
300-75 ohms
matching
transformer
Antenna
jack
Antenna
jack
300-75 ohms
matching
transformer
UHF 300 ohms
VHF 300 ohms
Antenna
jack
Combiner
UHF 300 ohms
VHF 75 ohms
Antenna
jack
Combiner
50C0301A_EN_P14-19 4/27/07, 7:17 PM14
