Sansui SR-636 - Cartridge and Headshell Installation; Cartridge Mounting Procedure; Headshell and Overhang Adjustment

12
With units sold in U.S.A., Canada and certain European
countries no cartridge is provided.

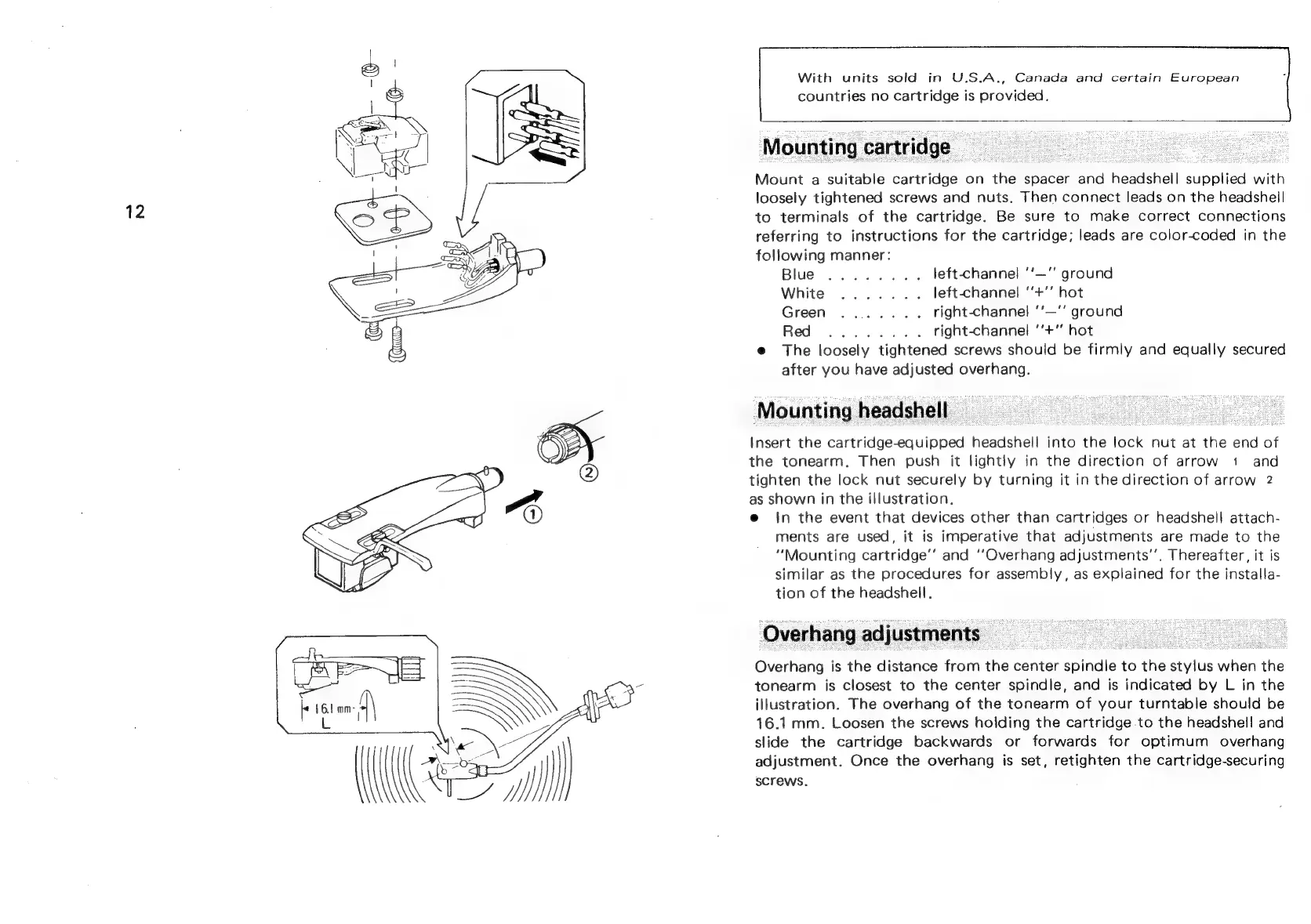

Mounting cartridge
Mount a suitable cartridge on ‘he spacer and bieadshell Fuoolied with
loosely tightened screws and nuts. Then connect leads on the headshell
to terminals of the cartridge. Be sure to make correct connections
referring to instructions for the cartridge; leads are color-coded in the
following manner:
Blue ........, left-channel ‘‘—"’ ground
White ....... left-channel ‘‘+"’ hot
Green ........ right-channel ‘‘—"’ ground
Red 642.2488 right-channel ‘'+'’ hot
e The loosely tightened screws should be firmly and equally secured
after you have adjusted overhang.
Mounting headshell _
Insert the cartridge-equipped headshell into ‘lie lock’: nut at ahs aad ie
the tonearm. Then push it lightly in the direction of arrow 14 and
tighten the lock nut securely by turning it in the direction of arrow 2
as shown in the illustration.
@ In the event that devices other than cartridges or headshell attach-
ments are used, it is imperative that adjustments are made to the
“Mounting cartridge’ and ‘‘Overhang adjustments”. Thereafter, it is
similar as the procedures for assembly, as explained for the installa-
tion of the headshell.
Overhang adjustments
Overhang is the distance from the center spindle: to the Spits whee the
tonearm is closest to the center spindle, and is indicated by L in the
illustration. The overhang of the tonearm of your turntable should be
16.1 mm. Loosen the screws holding the cartridge.to the headshell and
slide the cartridge backwards or forwards for optimum overhang
adjustment. Once the overhang is set, retighten the cartridge-securing
screws.
