Sansui SR-636 - Technical Specifications

32
450mm

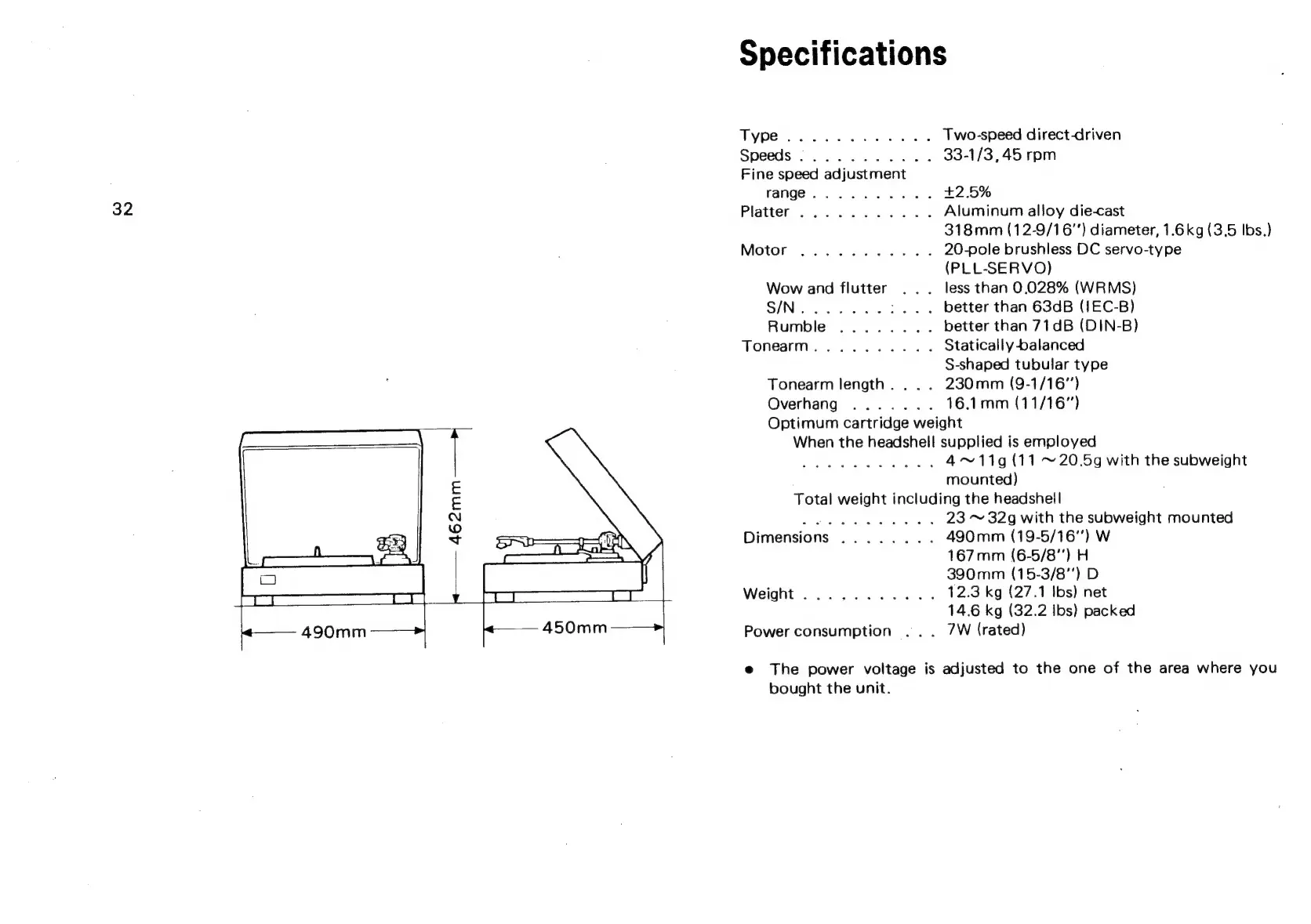

Specifications
WY PC codecs wie hed Two-speed direct-driven
Speeds. .......... 33-1/3, 45 rpm
Fine speed adjustment
range. ......... +2 5%
Platter... 2.2.2.2... Aluminum alloy die-cast
318mm (12-9/16'') diameter, 1.6kg (3.5 Ibs.)
Motor ........... 20-pole brushless DC servo-type
(PLL-SERVO)
Wow and flutter ... less than 0.028% (WRMS)
S/N. ......:... better than 63dB (1EC-B)
Rumble ........ better than 71dB (DIN-B)
Tonearm.......... Statically-balanced
S-shaped tubular type
Tonearm length. . . . 230mm (9-1/16”)
Overhang ....... 16.1mm (11/16")
Optimum cartridge weight
When the headshell supplied is employed
Bo heads tt Sp eta de rsa 4~11g (11 ~ 20.5g with the subweight
mounted)
Total weight including the headshell
SEE. wee Ayes eee oe SUSE 23 ~ 32g with the subweight mounted
Dimensions ........ 490mm (19-5/16") W
167mm (6-5/8") H
390mm (15-3/8"") D
Weight... .......-. 12.3 kg (27.1 Ibs) net
14.6 kg (32.2 ibs) packed
Power consumption ... 7W (rated)
@ The power voltage is adjusted to the one of the area where you
bought the unit.
