11
ENGLISH
REAR
VHF/UHF
OUT(TV)
IN(ANT)
VIDEO
OUT
3
CH
4
AUDIO
L
R
5 3
12

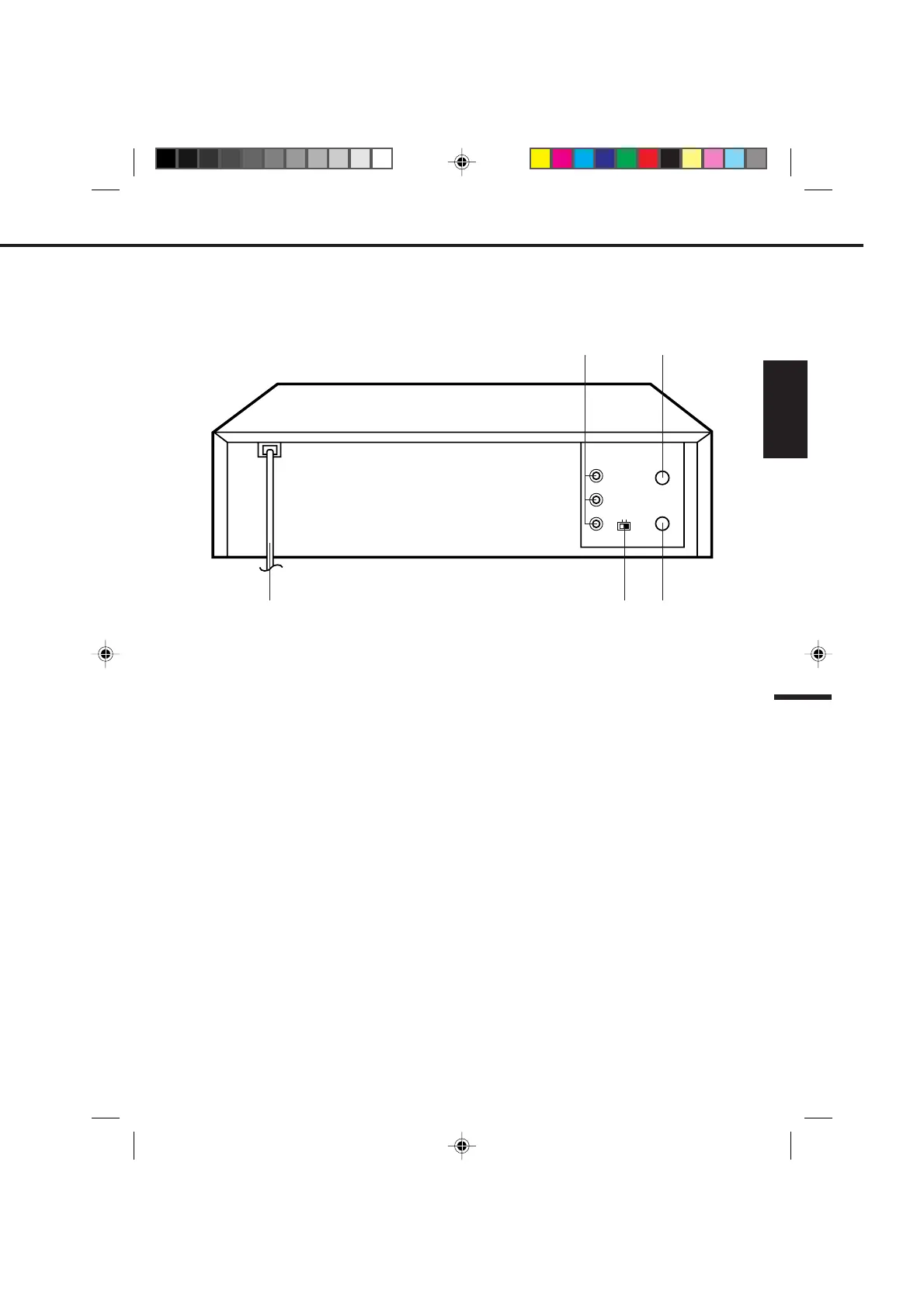

DESCRIPTION OF CONNECTORS
1. AUDIO (L/R)/VIDEO OUT Jacks - Used to output
audio and video signals to a TV, amplifier or VCR.
2. VHF/UHF IN (ANT) Jack - Connect a VHF/UHF
antenna or CATV cable to this jack.
3. VHF/UHF OUT (TV) Jack - Used to output VHF/
UHF or CATV signals to a TV.
4. 3/4 Channel Selector Switch - Selects the channel
through which the VCR outputs its signal to a TV.
5. AC Power Cord - Connect to a 120V 60Hz outlet.
