10
PLAY
REW
POWER
REC/OTR
F.FWD
STOP/
EJECT
CHANNEL
TV/VCR T.REC REC POWER
VIDEO IN
(
MONO
)
L
–
AUDIO IN
–
R
FRONT

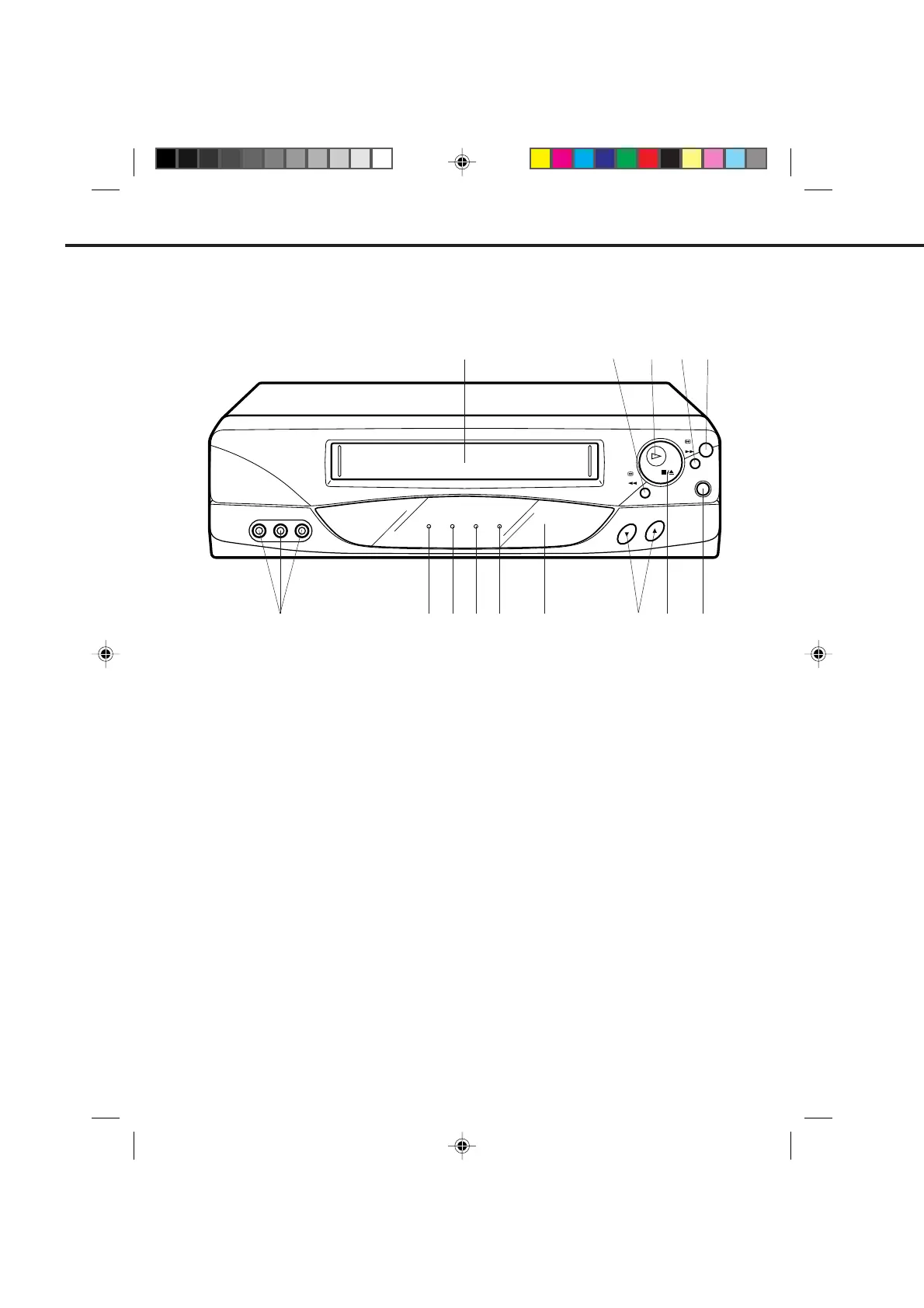

LOCATION OF CONTROLS
1 4532
DESCRIPTION OF CONTROLS
1. Cassette Loading Slot - To insert or remove a
video tape.
2. REW button - In the STOP mode, this button
rapidly winds the tape backwards. In the PLAY
mode, this button activates Reverse Search.
3. PLAY button - Press to play a prerecorded tape.
4. F. FWD button - In the STOP mode, this button
rapidly winds the tape forward. In the PLAY mode,
this button activates Forward Search.
5. POWER button - Turns the VCR power on and off.
6. REC/OTR button - Press once to start normal
recording. Additional presses activate One-Touch
Recording.
7. STOP/EJECT button - Press once to stop the tape
in any mode. Press again to eject the tape.
68
913 11
14
12 10
7
8. CHANNEL ▼ / ▲ buttons - Used to select a
channel for viewing or recording.
9. Remote Sensor - Signals from the Remote Control
are received here.
10. POWER indicator - Lights when the power is
turned on.
11. REC indicator - Lights during recording.
12. T. REC indicator - Lights when the TIMER REC
button is pressed.
13. TV/VCR indicator - Lights when the TV/VCR
selector button is selected to the VCR mode.
14. AUDIO (L/R)/VIDEO In Jacks - Audio and video
signal cables from an external source can be
connected here.
4C94001A/E/P10-19 08*12*99, 11:4210
